Fixed Y base With auxiliary contact
    • Fixed Y base With auxiliary contact
    • Fixed Y base With auxiliary contact

    Fixed Y base With auxiliary contact

    Y49322
    Proconect

    With auxiliary contact

    €57.38
    VAT included
    €47.81 VAT excluded
    LIVRAISON 24/48H
    Quantity
    EN STOCK



      Delivery policy

    (edit with the Customer Reassurance module)

      Security policy

    (edit with the Customer Reassurance module)

      Return policy

    (edit with the Customer Reassurance module)



    Description

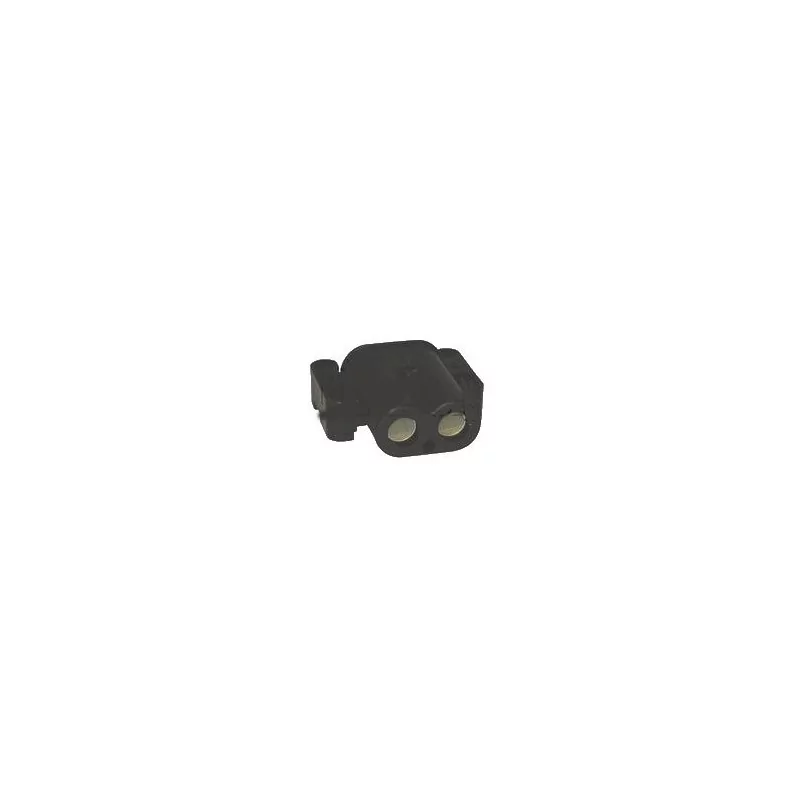

    Fixed Y-base With auxiliary contact

    Fixed Y-base

    - Polyamide material.
    - Equipped with female contacts in copper alloy to crimp or solder, section 50 mm2 (AWG 1/0).
    - Auxiliary contact to solder.
    - The base with nipple and cover is IP66.

    Technical data:
    - Nominal current / maximum current: 200 A / 250 A.
    - Nominal voltage / maximum voltage: 150 V / 600 Vdc.
    - Operating temperature: -30° to + 70°.
    - Sealing nipple: black polyurethane / Gasket: black neoprene foam.
    - Crimp or solder contacts: copper alloy.
    - Conductor section: 50 mm2.
    Product Details
    Y49322
    New

    Specific References

    UPC
    400000144740
    EAN13
    3662258038036
