Fixed Y base Without auxiliary contact
    • Fixed Y base Without auxiliary contact
    • Fixed Y base Without auxiliary contact

    Fixed Y base Without auxiliary contact

    Y49312
    Proconect

    Fixed Y base Without auxiliary contact

    €43.62
    VAT included
    €36.35 VAT excluded
    LIVRAISON 24/48H
    Quantity
    IN STOCK



      Delivery policy

    (edit with the Customer Reassurance module)

      Security policy

    (edit with the Customer Reassurance module)

      Return policy

    (edit with the Customer Reassurance module)



    Description

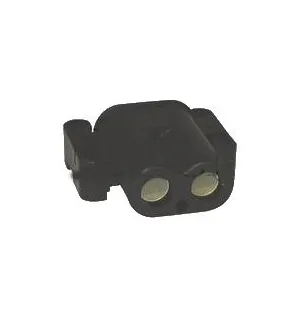

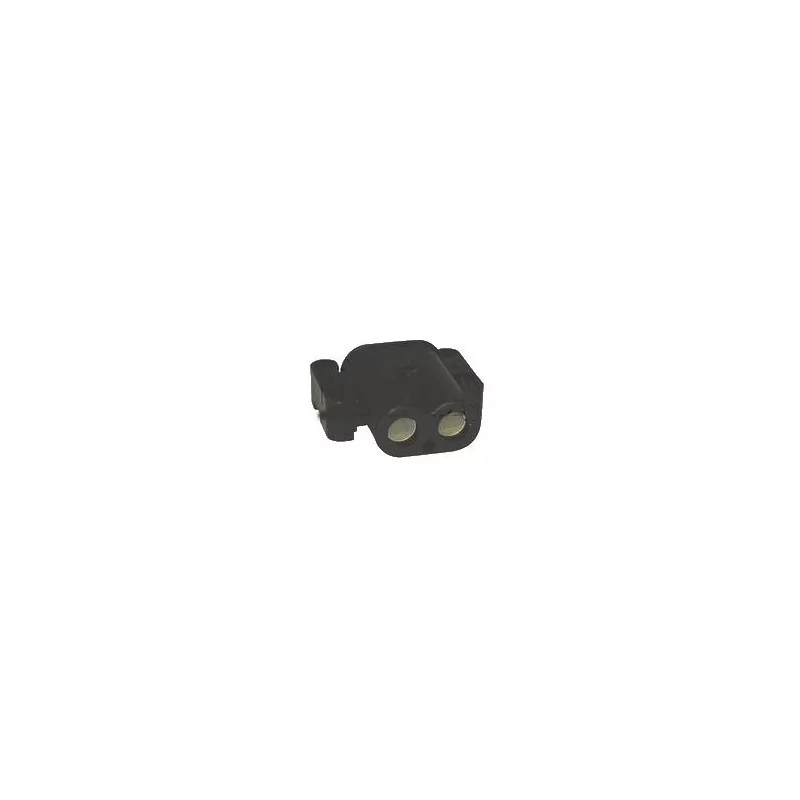

    Fixed Y base

    - Polyamide material.
    - Equipped with female contacts in copper alloy to crimp or solder, section 50 mm2 (AWG 1/0).
    - Auxiliary contact to solder.
    - The base with nipple and cover is IP66.

    Technical data:
    - Nominal current / maximum current: 200 A / 250 A.
    - Nominal voltage / maximum voltage: 150 V / 600 Vdc.
    - Operating temperature: -30° to + 70°.
    - Sealing nipple: black polyurethane / Gasket: black neoprene foam.
    - Crimp or solder contacts: copper alloy.
    - Conductor section: 50 mm2.
    Product Details
    Y49312
    New

    Specific References

    UPC
    400000144733
    EAN13
    4000000144632
    MPN
    3662258037992
