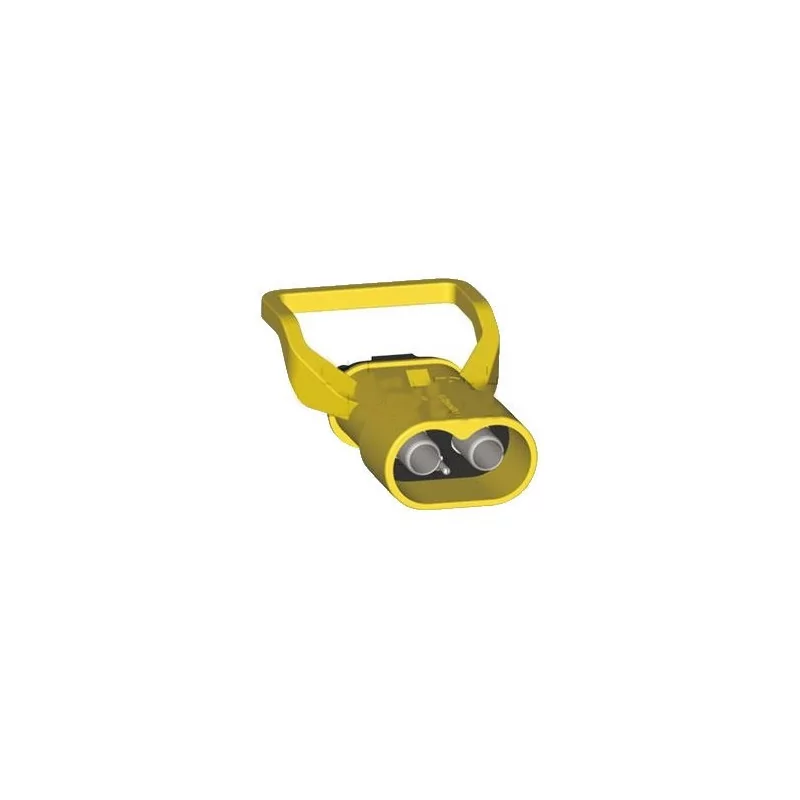

Polyamide 6 mobile Y plug with auxiliary contact

Very robust connector:
- Yellow casing in perfectly insulating, unbreakable and UV-resistant Polyamide 6 copolymer material.
- Easy to assemble: 1 carriage on which the 2 + and - contacts are placed.
- The shape of the casing prevents the poles from being reversed when connecting.
- Interchangeable with any Y-type plug.
- Crimp or solder contacts.
- Locking pin coinciding with the base cover (if equipped).

Technical data:

- Nominal current / maximum current: 200 A / 250 A.
- Nominal voltage / maximum voltage: 150 V / 600 VDC.
- Operating temperature: -30° to +70°.
- Sealing nipple: black polyurethane / Gasket: black neoprene foam.
- Crimp or solder contacts: copper alloy.
- Conductor sections: 50 mm2.
