16MM2 - DOUBLE INSULATION - SOLD BY THE CUT - HIGH PERFORMANCE
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
USES:
Battery cable for use indoors or outdoors, in dry or humid environments.
On all types of electric vehicles, for example: forklifts, electric cars, conveyors, public works or handling equipment, etc.
On all types of motor vehicles, for example: automobiles, heavy goods vehicles, public works equipment, agriculture, marine, etc.
High quality jumper cable.
TECHNICAL CHARACTERISTICS:

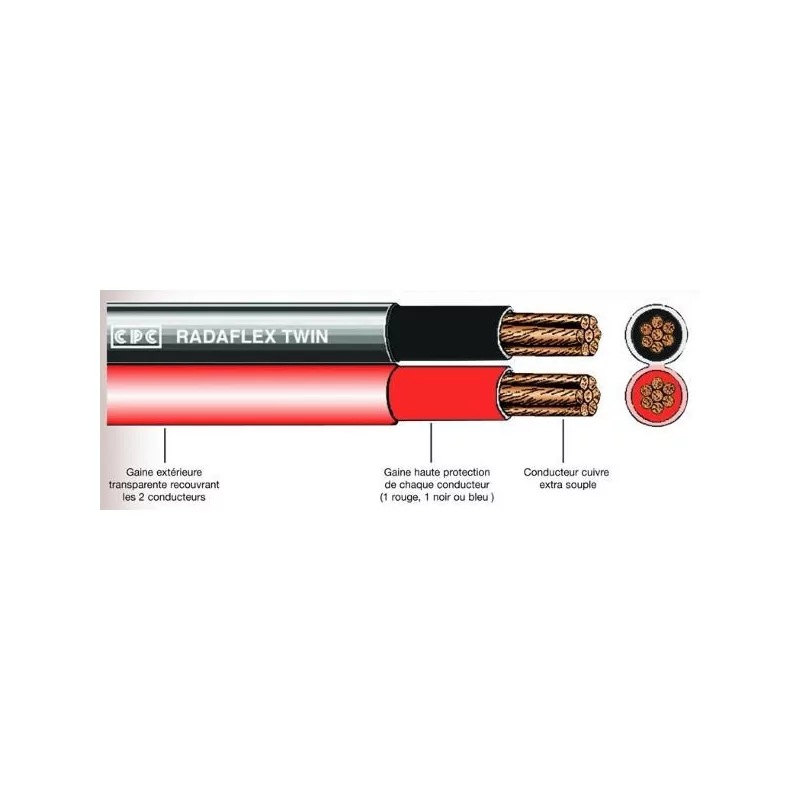

- Cable construction:
Conductors in fine strands of electrolytic copper, with a maximum diameter of 0.21 mm, giving the finished cable exceptional flexibility.
- Cable insulation : Thermoplastic elastomer blend, specially designed for better resistance to cold.
Two colors: 1 red cable and 1 black (or blue) cable for easy identification.
- Outer sheath: Transparent PVC, resistant to cold, abrasion, petroleum and chemical products.
Temperature range:
-30° to +70° C in static use
-20° to +70° C in dynamic use
Bending radius:
The bending radius is = 4 x the diameter - All this at 20°+/-10°C.
Operating voltage: 300 to 500 V.
Standards: VDE level 250
Specific References
16MM2 - DOUBLE INSULATION - SOLD BY THE CUT - HIGH PERFORMANCE
