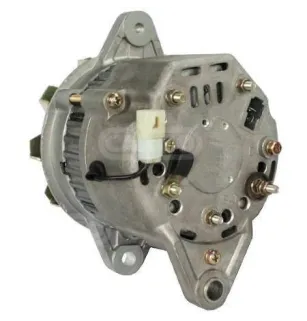

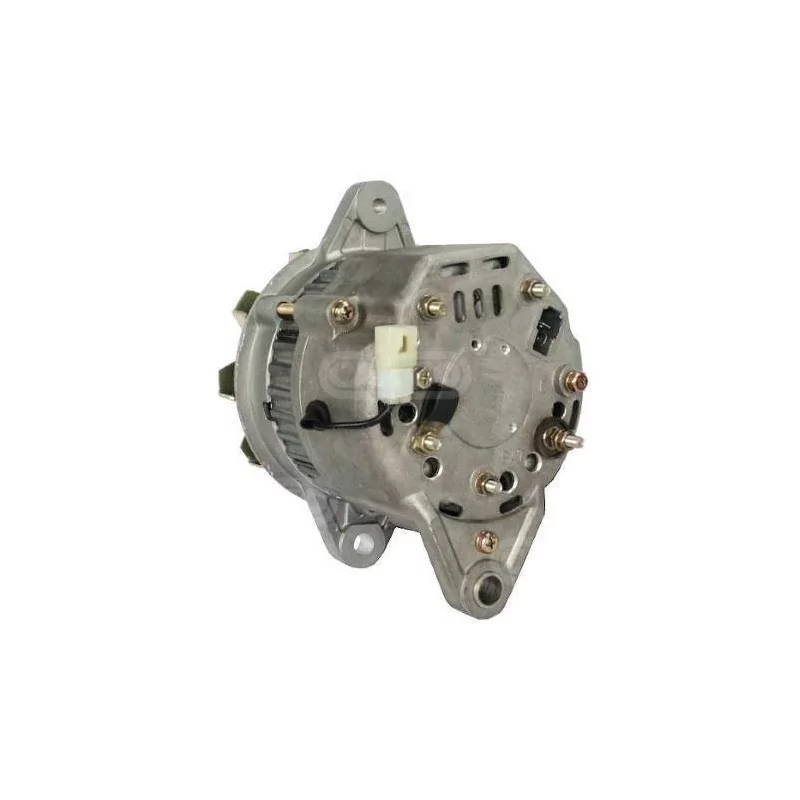

Alternator 28 Volts 20 A Isuzu 5812003300, 5812003350, Mitsubishi A001T70783, Hitachi LR220-23

Alternator 28 Volts 20 A Isuzu 5812003300, 5812003350, Mitsubishi A001T70783, Hitachi LR220-23

• New Starter
• Warranty: 2 years
• Without Deposit
• Original Quality

CHARACTERISTICS :
Electrical Information
Voltage 28
Amp 20
Terminal W

Physical Information

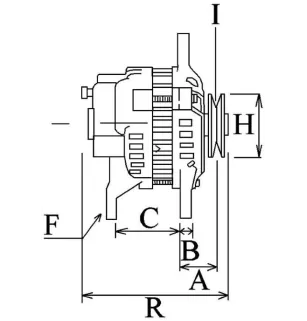

A Pulley Dist. 44.50

B Arm Width 13.50

C Pulley Dist. between bracket 81.30

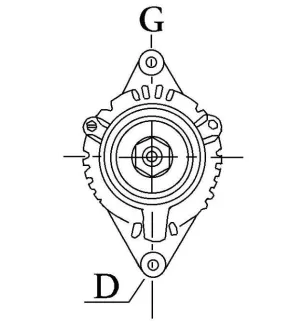

D Hole diameter 10.40

E Tensioner paste angle 60

G Hole diameter of the    M8 tab

H Pulley dia. 85.00

I Pulley grooves 1

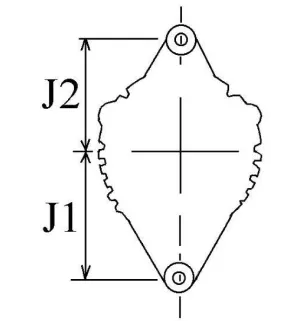

J Radius 78.00

J Radius 2 78.00

K B + M5

K Position B+ in min. 20

L D+ Size Plug

N Rotation CW

O Plug no PL09

R Total length mm 165.00

Catalog Information

Pulley

Regulator type Ir

Vacuum pump No

Product info Bn

For Mitsubishi

REPLACES THE FOLLOWING PART NUMBERS:
5812003300 Isuzu
5812003350 Isuzu
A001T70783 Mitsubishi
A1T70783 Mitsubishi
LR220-23 Hitachi
LR220-24 Hitachi

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Mitsubishi, Forklift
Various Agriculture Vehicles, Agricultural Machinery
