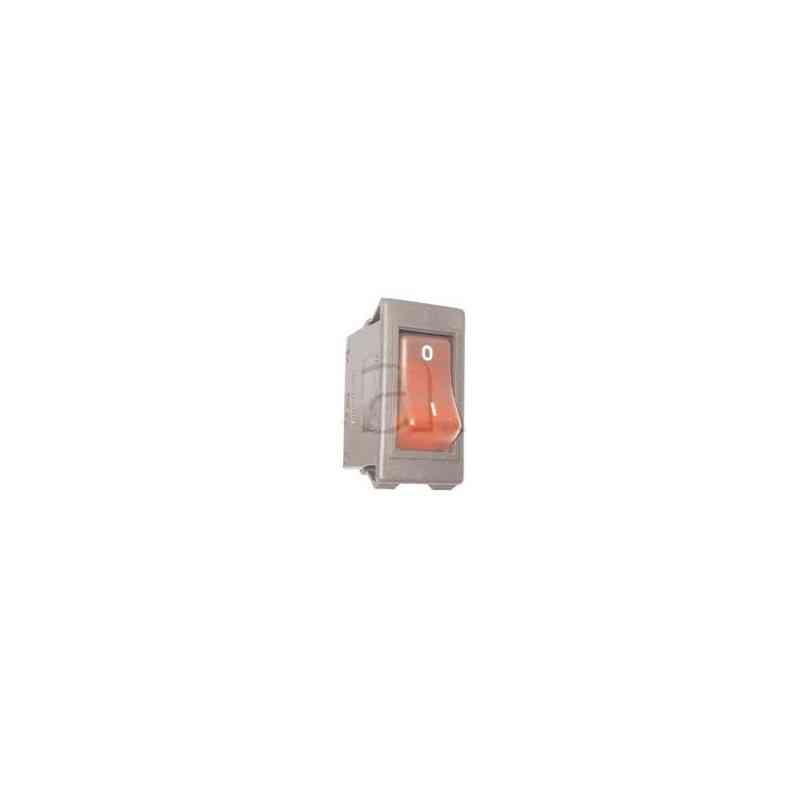

Thermal switch 12. 5a.

combination of a circuit breaker and a unipolar rocking switch.

Characteristics:
- Red light switch button - marking 0 - L - Red LED lightning in position l.
- Connections by 6.35 mm cards (separated in 2 x 2.8 mm).
- Use temperature: - 30 ° C at + 60 ° C.
- To be built into panel or dashboard 44.5 x 22 mm - Thickness panel 1 to 4 mm.
- meets the circuit breaker for equipment EN60934.

Application examples: Electric motors, electric tools, feeding blocks, recovery, accumulator chargers.

Ampèrage: 5
Volts: 12
Page catalog: 12.5
