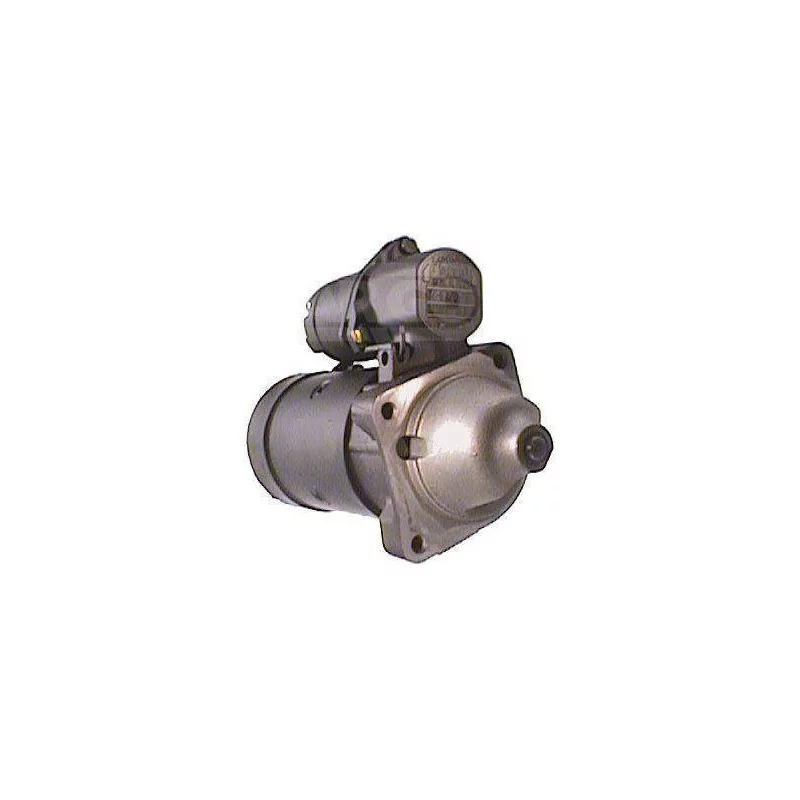

12 Volt Starter, Bosch 0001211242, Valeo 101187, Iskra 11.130.102, Fiat 4145430

FEATURES:

Electrical specifications
Voltage     12
KW     0.8

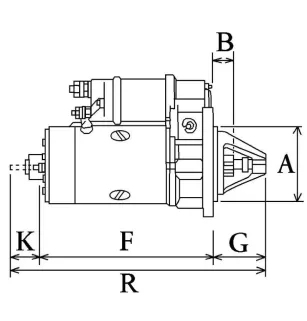

Physical specifications
A     Mounting flange     66.90
B     Recoil distance     12.00
F     Rear distance     193.00
G     Forward distance     51.00
H     No. of teeth     9
I     B+     M8
N     Crown type     Dd

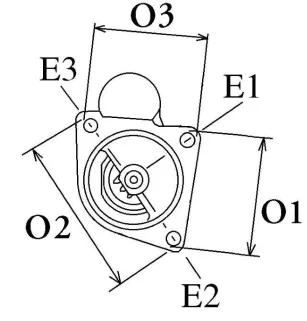

O    Distance mm     96.00
O     Distance 2     61.50
O     Distance 3     67.00
P     Rotation     Cr
R     Total length mm     254.00

More information
No. of fixing holes     3 (3)
Launcher type     Steel
Oil sealed     No
Waterproof     No

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0001211242, 0986010440, 0986010441, 0986011870, 0986011871, 0986011871090, 9000141114, 9000330922, 9000330942. Magneti marelli: 063220741, 063220741010, 63220701, 63220721, 63220731, 63220741, 63221200, 63221300, 63221330, 944280118710, E84-0.8/12V1, E840.8/12, MSN294.
Valeo: 101187, 432663, 433278, 436026, D7E62, D9E127, ND091, VS139.
Iskra: 11.130.102, 11.130.166, 11.130.321, 11.130.519, 11.130.964, 11130166, AZB0101, AZE0201, AZE1211, AZE1501, AZE1520, AZE3502, AZE3508, IS0519.
Cargo: 110825, 110849.
Waiglobal: 2-1315-MM.
Messmer: 220065.
Fiat: 4145430, 4198600, 4198601, 4198601ES, 4392459, 4392459ES, 4412878, 4412879, 4435660, 4435660ES, 4436732, 4436732ES, 46231525, 46231527, 46231528, 46231529, 77145430, 77387430.
Magneton: 9141325.
Concepts: CBS91.
HC-Parts: CS133, CS505, CS91.
Delco: DRS1871, DRS3188.
Lucas: LRS00141, LRS141, LRS341.
Femsa: MTS12-22, MTS1222, MTS12P-19.
Elmot: R8006, R8007, R80N, R80Z.
Krauf: STE0112, STE0217, STI0505.
Motorherz: STE0217WA.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

FIAT 128 1.3 Rally (AR) (1971-1976)
FIAT 128 1.1 (1975-1981)
FIAT 128 1.1 (1969-1984)
FIAT 128 1.3 Sport (1974-1984)
FIAT 128 Familiare 1.1 (AF) (1975-1981)
FIAT 128 Familiare 1.1 (AF) (1969-1982)
FIAT 128 Familiare 1.3 (AF1) (1974-1982)
FIAT 128 1.3 (AC) (1972-1979)
FIAT 128 1.3 Berlinetta (AC) (1975-1979)
FIAT 128 1.1 (AC 5) (1972-1981)
FIAT 128 1.1 (AC 5) (1975-1981)
FIAT REGATA (138) 70 1.3 (1983-1986)
FIAT REGATA (138) 70 1.3 (1983-1989)
FIAT RITMO I (138A) 65 1.3 (1978-1982)
FIAT RITMO I (138A) 70 1.3 (1983-1985)
FIAT RITMO II (138A) 70 1.3 (1983-1985)
FIAT RITMO II (138A) 60 1.1 (1982-1987)
FIAT RITMO II (138A) 60 1.1 (1985-1987)
FIAT RITMO II (138A) 75 1.5 KAT (1985-1988)
FIAT RITMO II (138A) 75 1.5 (1985-1988)
FIAT RITMO 50 1.3 ( 1985-1987)
FIAT UNO (146A/E) 70 1.3 (1983-1985)
FIAT UNO (146A/E) 55 1.1 (1983-1989)
FIAT UNO (146A/E) 60 (146A.EG) (1985- 1989)
FIAT UNO (146A/E) 60 1.1 (146A.EG) (1985-1989)
FIAT UNO (146A/E) 70 1.3 (1985-1989)
FIAT X 1/9 (128 AS) 1.3 (1975-1978)
FIAT X 1/9 (128 AS) 1.3 (1973-1979)
LANCIA DELTA I (831AB0) 1.1 (831AB.015) (1986-1990)
LANCIA DELTA I (831AB0) 1.3 (831AB.011) (1979-1992)
LANCIA DELTA I (831AB0) 1.3 (1983) -1992)
LANCIA PRISMA (831AB0) 1.3 (1983-1992)
ZASTAVA 101 (1100) 1.1 (1975-1980)
ZASTAVA 101 (1100) 1.1 Super (1979-1981)
ZASTAVA 101 (1100) 1.1 (1973-1990)
ZASTAVA 101 (1100) 1.1 (1975-1993)
ZASTAVA 101 (1100) 1.3 (1981-1993)
ZASTAVA YUGO FLORIDA 1.3 (103 A) (1991-...)
