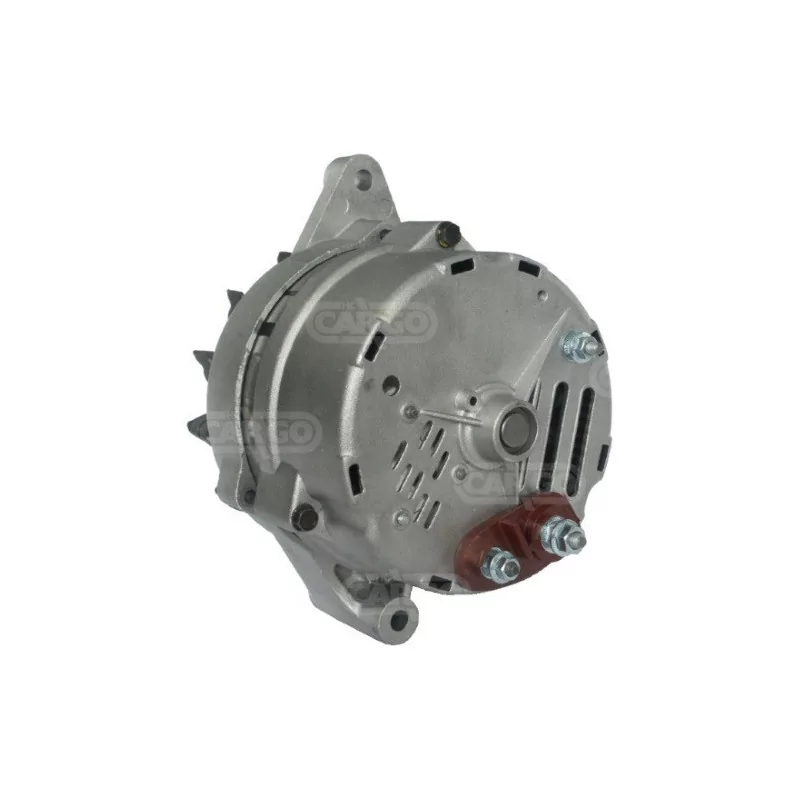

Alternator 14 Volts 70 A, Bosch 0120488158, Valeo 436159, Krauf ALB0513, Lucas LEA0075

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     70

Physical Specifications
D     Hole Diameter     8.60
G     Lug Hole Diameter     8.00
B     Arm Width     56.00
E     Tensioner Angle     60
H     Pulley Dia.     67.50
A     Dist. pulley     77.00
i     Pulley grooves     1
j     Radius     86.80
j     Radius 2     91.00
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL_NA
Q     Plug type W     M5
R     Total length mm     168.75

More information
Fan     Ef
Pulley     Pulley
Regulator type    Ir
Vacuum pump     Without

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0120488158, 0120488159, 0120488255, 0120489633, 0120489634, 0986030840, 0986030891, 0986032331.
Magneti marelli: 063534881590, 943356528, 943356728.
Iskra: 11.201.928, 11201928, AAK3130, IA0309, IA0583, IA0749.
Cargo: 111167, 111178, 112775.
Opel: 1204088, 1204109, 1204128, 1204130, 1204219, 1204220, 90348697, 90442072.
Delco: 139, 239, 3472139, 3493239, 3493604, 3493639, 3493706, 3493714, 3493717, 3493739, 604, 639, 714, 717, 739, DRA0840, DRA0882.
Valeo: 436159, 436727.
Prestolite: 66021414, 66021440, PBNA0207.
Krauf: ALB0513.
Motorherz: ALB0513WA.
HC-Parts: CA221IR, CA513IR, CA647IR.
Lucas: LEA0075, LEA0089, LEA0505, LRA00207, LRA02713, LRB00131, LRB00132.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

BEDFORD BLITZ (CF97) 2.0 D (1980-1983)
LANCIA GAMMA 2500 (1981-1984)
LANCIA GAMMA 2500 (1981-1984)
OPEL ASCONA C (81_, 86_, 87_, 88_) 1.3 N (1981-1986)
OPEL ASCONA C (81_, 86_, 87_, 88_) 1.3 S (1981-1988)
OPEL ASCONA C (81_, 86_, 87_, 88_) 1.6 (1986-1988)
OPEL ASCONA C (81_, 86_, 87_, 88_) 1.6 i KAT (1986-1988)
OPEL ASCONA C (81_, 86_, 87_, 88_) 1.6 i (1987-1988)
OPEL ASCONA C (84_, 89_) 1.3 N (1981-1986)
OPEL ASCONA C (84_, 89_) 1.3 S (1981-1988)
OPEL ASCONA C (84_, 89_) 1.6 (1986-1988)
OPEL ASCONA C (84_, 89_) 1.6 i KAT (1986-1988)
OPEL ASCONA C (84_, 89_) 1.6 i (1987-1988)
OPEL ASTRA F (56_, 57_) 1.4 (1991-1993)
OPEL ASTRA F (56_, 57_) 1.4 i (1991-1998)
OPEL ASTRA F (56_, 57_) 1.6 i (1992-1998)
OPEL ASTRA F (56_,57_) 1.4 (1992-1998)
OPEL ASTRA F Van (55_) 1.6 i (1991-1993)
OPEL ASTRA F Van (55_) 1.4 i (1991-1999)
OPEL ASTRA F (53_, 54_, 58_, 59_) 1.4 (1991-1993)
OPEL ASTRA F (53_, 54_, 58_, 59_) 1.6 i (1991-1998)
OPEL ASTRA F (53_, 54_, 58_, 59_) 1.4 i (1992-1998) )
OPEL ASTRA F (53_, 54_, 58_, 59_) 1.4 (1992-1998)
OPEL ASTRA F (51_, 52_) 1.4 (1991-1993)
OPEL ASTRA F (51_, 52_) 1.4 i (1991-1998)
OPEL ASTRA F (51_, 52_) 1.6 i (1991-1998)
OPEL ASTRA F (51_, 52_) 1.4 (1992-1998)
OPEL COMBO (71_) 1.2 (1994-2001)
OPEL COMBO (71_) 1.4 (1994) -2001)
OPEL CORSA A TR (91_, 92_, 96_, 97_) 1.3 S (1982-1987)
OPEL CORSA A TR (91_, 92_, 96_, 97_) 1.2 S (1982-1987)
OPEL CORSA A TR (91_, 92_, 96_, 97_) 1.2 N (1985-1987)
OPEL CORSA A TR (91_, 92_, 96_, 97_) 1.3 (1985-1987)
OPEL CORSA A TR (91_, 92_, 96_, 97_) 1.2 S (1982-1993)
OPEL CORSA A TR (91_, 92_, 96_, 97_) 1.4 i (1989-1993)
OPEL CORSA A TR (91_, 92_, 96_, 97_) 1.4 S (1989-1993)
OPEL CORSA A TR (91_, 92_, 96_, 97_) 1.2 i (1989) -1993)
OPEL CORSA A (93_, 94_, 98_, 99_) 1.3 S (1982-1989)
OPEL CORSA A (93_, 94_, 98_, 99_) 1.3 (1985-1989)
OPEL CORSA A (93_, 94_, 98_, 99_ ) 1.2 S (1982-1990)
OPEL CORSA A (93_, 94_, 98_, 99_) 1.2 (1982-1990)
OPEL CORSA A (93_, 94_, 98_, 99_) 1.3 i (1986-1990)
OPEL CORSA A (93_, 94_, 98_, 99_) 1.6 GSI (1988-1992)
OPEL CORSA A (93_, 94_, 98_, 99_) 1.6 GSI (1989-1993)
OPEL CORSA A (93_, 94_, 98_, 99_) 1.2 i (1989-1993) )
OPEL CORSA A (93_, 94_, 98_, 99_) 1.4 S (1990-1993)
OPEL CORSA A (93_, 94_, 98_, 99_) 1.4 i (1990-1993)
OPEL CORSA A (93_, 94_, 98_, 99_) 1.2 N (1990 -1993)
OPEL CORSA A (93_, 94_, 98_, 99_) 1.6 GSI KAT (1992-1993)
OPEL CORSA A 1.2 (1986-1989)
OPEL CORSA A 1.3 (1986-1989)
OPEL CORSA A 1.2 (1986) -1990)
OPEL CORSA B (73_, 78_, 79_) 1.2 i (1993-2000)
OPEL CORSA B (73_, 78_, 79_) 1.4 i (1993-2000)
OPEL CORSA B (73_, 78_, 79_) 1.2 i (1993-2000) )
OPEL KADETT D (32_,37_,39, _42) 1.3 N (1979-1984)
OPEL KADETT D (32_,37_,39, _42) 1.3 S (1979-1984)
OPEL KADETT E (39_, 49_ ) 1.3 S (1984-1987)
OPEL KADETT E (39_, 49_) 1.3 N (1984-1989)
OPEL KADETT E (39_, 49_) 1.3 i KAT (1985-1991)
OPEL KADETT E (39_, 49_) 1.6 i (1986-1991)
OPEL KADETT E (39_, 49_) 1.6 S (1986-1991)
OPEL KADETT E (39_, 49_) 1.6 i KAT (1986-1991)
OPEL KADETT E (39_, 49_) 1.4 S (1990-1991)
OPEL KADETT E (39_, 49_) 1.4 i (1990-1991)
OPEL KADETT E Combo (38_, 48_) 1.3 N (1986-1989)
OPEL KADETT E Combo (38_, 48_) 1.3 S (1986-1989)
OPEL KADETT E Combo (38_, 48_) 1.6 (1986-1991) )
OPEL KADETT E Combo (38_, 48_) 1.4 S (1989-1991)
OPEL KADETT E Combo (38_, 48_) 1.6 (1986-1993)
OPEL KADETT E Combo (38_, 48_) 1.6 i (1991-1994)
OPEL KADETT E Combo (38_, 48_) 1.4 i (1991-1994)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.3 S (1984-1987)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.3 N (1984) -1991)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.3 i KAT (1985-1991)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.6 i (1986-1991)
OPEL KADETT E (33_, 34_, 43_, 44_ ) 1.6S (1986-1991)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.6 i KAT (1986-1991)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.4 S (1989- 1991)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.4 S (1990-1991)
OPEL KADETT E (33_, 34_, 43_, 44_) 1.4 i (1990-1991)
OPEL KADETT E (43B_) 1.4 i (1990-1991) )
OPEL KADETT E (43B_) 1.6 i (1986-1993)
OPEL KADETT E (43B_) 1.3 S (1987-1993)
OPEL KADETT E (43B_) 1.6 i KAT (1987-1993)
OPEL KADETT E (43B_) 1.6 i (1989-1993)
OPEL KADETT E (43B_) 1.4 S (1990-1993)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.3 S (1984-1987)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.3 N (1984-1991)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.3 i KAT (1985-1991)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.6 i ( 1986-1991)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.6 (1986-1991)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.6 i KAT (1986-1991)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.8 (1988-1991)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.4 S (1990-1991)
OPEL KADETT E (35_, 36_, 45_, 46_) 1.4 i (1990-1991) )
OPEL KADETT E (37_, 47_) 1.3 N (1984-1989)
OPEL KADETT E (37_, 47_) 1.4 i (1990-1991)
OPEL KADETT E (37_, 47_) 1.6 i (1989-1993)
OPEL MANTA B (58_, 59_) 1.3 S (1981-1986)
OPEL MANTA B CC (53_, 55_) 1.3 S (1979-1986)
OPEL VECTRA A (86_, 87_) 1.4 S (1988-1992)
OPEL VECTRA A (86_, 87_) 1.6 (1988-1993)
OPEL VECTRA A (86_, 87_) 1.6 i (1988-1995)
OPEL VECTRA A (88_, 89_) 1.4 S (1988-1992)
OPEL VECTRA A (88_, 89_) 1.6S (1988-1993)
OPEL VECTRA A (88_, 89_) 1.6 i KAT (1988-1995)
OPEL VECTRA A (88_, 89_) 1.6 i (1993-1995)
VAUXHALL ASTRA Mk II Belmont 1.3 ( 1985-1991)
VAUXHALL ASTRA Mk II Belmont 1.3 i KAT (1985-1991)
VAUXHALL ASTRA Mk II 1.4 i (1990-1991)
VAUXHALL ASTRA Mk II 1.6 i (1991-1993)
VAUXHALL ASTRA Mk III (F) 1.6 i (1992-1994)
VAUXHALL ASTRA Mk III (F) 1.4 i (1992-1998)
VAUXHALL ASTRA Mk III (F) 1.6 i (1992-1998)
VAUXHALL ASTRA Mk III ( F) 1.4 S (1991-1998)
VAUXHALL ASTRA Mk III (F)1.4i (1991-1998)
VAUXHALL ASTRA Mk III (F) 1.6 i (1991-1998)
VAUXHALL ASTRA Mk III (F) 1.6 i (1992-1998)
VAUXHALL ASTRA Mk III ( F) 1.4 i (1993-1998)
VAUXHALL ASTRA Mk III (F) 1.4 S (1991-1998)
VAUXHALL ASTRA Mk III (F) 1.4 i (1991-1998)
VAUXHALL ASTRA Mk III (F) 1.6 i (1991-1998)
VAUXHALL ASTRAMAX 1.6 i (1991-1994)
VAUXHALL ASTRAVAN MK III (F) 1.4 i (1991-1994)
VAUXHALL ASTRAVAN Mk III (F) 1.6 i (1991-1998)
VAUXHALL CAVALIER Mk III (87) 1.6 (1988-1993)
VAUXHALL CAVALIER Mk III (87) 1.4 S (1988-1995)
VAUXHALL CAVALIER Mk III (87) 1.6 i (1988-1995)
VAUXHALL CAVALIER Mk III (87) 1.6 i (1993-1995)
VAUXHALL CAVALIER Mk III 1.6 (1988-1993)
VAUXHALL CAVALIER Mk III 1.4S (1988-1995)
VAUXHALL CAVALIER Mk III 1.6 i (1988-1995)
VAUXHALL CAVALIER Mk III 1.6 i (1993-1995)
VAUXHALL COMBO Mk I (B) 1.2 (1994- 2001)
VAUXHALL COMBO Mk I (B) 1.4 (1994-2001)
VAUXHALL CORSA Mk I (B) 1.2 i (1993-2000)
VAUXHALL NOVA 1.2 N (1985-1987)
VAUXHALL NOVA 1.4 S (1990-1993)
VAUXHALL NOVA 1.0 (1983-1993)
VAUXHALL NOVA 1.2 i KAT (1989-1993)
VAUXHALL NOVA 1.3 i KAT (1989-1993)
VAUXHALL NOVA 1.6 GSI (1989-1993)
VAUXHALL NOVA 1.4 S (1990- 1993)
VAUXHALL NOVA 1.2 N (1990-1993)
VAUXHALL NOVA 1.4 i (1990-1993)
VAUXHALL NOVA 1.6 GSI KAT (1992-1993)
VAUXHALL NOVAVAN 1.2 (1990-1994)
