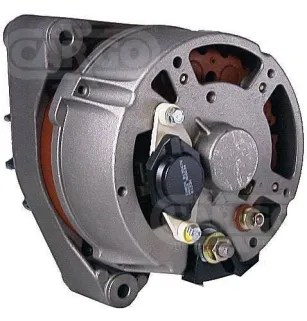

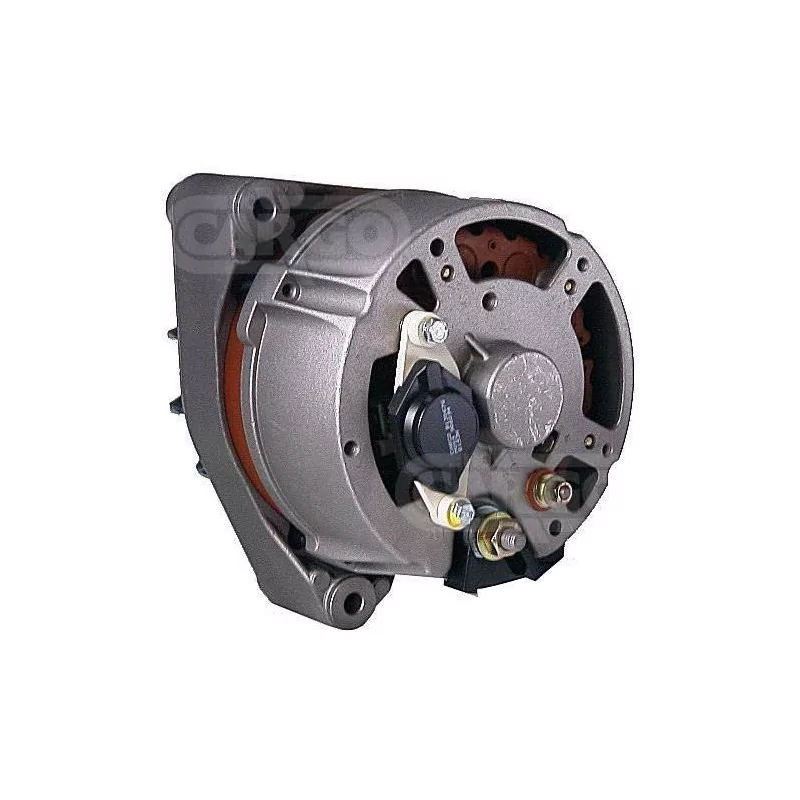

Alternator 14 Volts 75 A, Bosch 0120469502, Volkswagen 035903015A, Valeo 432840, Lucas LRA00807

SPECIFICATIONS:

Electrical Specifications
Voltage     14
Amp     75

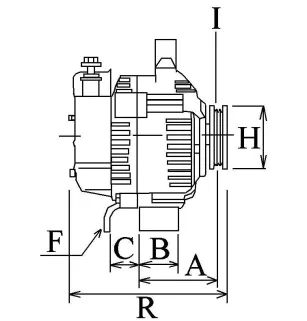

Physical Specifications

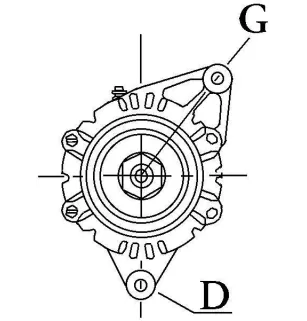

D     Hole Diameter     8.25
G     Lug Hole Diameter     8.30
B     Arm Width     56.00
E     Tensioner Angle     10
H     Pulley Dia.     76.30
A     Dist. pulley     82.30
i     Pulley grooves     1

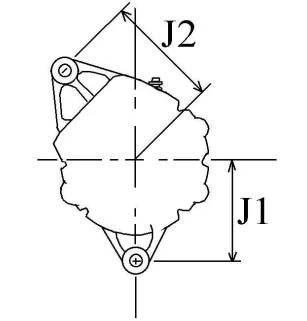

j     Radius     90.00
j     Radius 2     89.00
k     Position B +     M8
n     Rotation     Cr
o     Regulator connector     PL_NA
R     Total length mm     171.00

More information
Fan     Ef
Pulley     Pulley
Regulator type     Ir

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0120469502, 0120469503, 0120469504, 0120469505, 0120469524, 0120469525, 0120469528, 0120469533, 0120469536, 0120469554, 0986030530, 0986030538, 0986030540, 0986030548, B120421870.
Volkswagen: 035903015A, 035903015E, 035903015H, 035903015J, 035903015N, 047903015, 049903015A, 049903023N, 063903015, 063903017, 063903017X, 47903015.
Waiglobal: 1-1366-01BO, 1-1369-01SV.
Wps: 14000R.
Valeo: 432840, 9AR2795T.
Magneti marelli: 943356333, 943356616.
Motorola: 9AR2753P.
Krauf: ALB0163.
HC-Parts: CA163IR.
Delco: DRA0540.
Lucas: LRA00807, LRA01193, LRA02593, LRA807.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

AUDI 100 (43, C2) 2.1 (1977-1982)
AUDI 100 (43, C2) 1.9 (1980-1982)
AUDI 100 Avant (43, C2) 2.1 (1977-1983)
AUDI 200 (43) 2.1 5E (1979-1982)
AUDI 200 (43) 2.1 5 E (1979-1982)
AUDI 200 (43) 2.1 5T (1979-1982)
AUDI 200 (43) 2.1 5 T (1979-1982)
AUDI 4000 (81, 85, B2) 1.6 GLE (1978-1982)
AUDI 4000 (81, 85, B2) 1.6 (1978-1983)
AUDI 4000 (81, 85, B2) 2.2 (1980-1983)
AUDI 4000 (81, 85, B2) 1.9 CD-5S (1981-1983)
AUDI 4000 (81, 85, B2) 1.3 (1978-1986)
AUDI 4000 (81, 85, B2) 1.6 (1978-1986)
AUDI 4000 (81, 85, B2) 1.6 TD (1981-1986)
AUDI 4000 (81, 85, B2) 1.8 (1983-1986)
AUDI 80 (80, 82, B1) 1.6 GTE (1976-1978)
AUDI 80 (81, 85, B2) 1.6 (1978-1983)
AUDI 80 (81, 85, B2) 1.9 CD-5S (1981-1983)
AUDI 80 (81, 85, B2) 1.3 (1978-1986)
AUDI 80 (81, 85, B2) 1.6 (1978-1986)
AUDI 80 (81, 85, B2) 1.6 GLE (1979-1986)
AUDI 80 (81, 85, B2) 1.6 TD (1981-1986)
AUDI 80 (81, 85, B2) 1.8 (1983-1986)
AUDI COUPE (81, 85) 1.9 (1980-1983)
AUDI QUATTRO (85) 2.1 Turbo (1980-1987)
PORSCHE 924 2.0 Turbo (1978-1980)
PORSCHE 924 2.0 Turbo (1980-1986)
PORSCHE 924 2.0 (1975-1989)
VW CARAT (32B) 1.9 (1981-1983)
VW CARAT (32B) 1.9 (1981-1983)
VW CORSAR (32B) 1.6 (1981- 1982)
VW CORSAR (32B) 1.9 (1981-1983)
VW CORSAR (32B) 1.6 (1981-1984)
VW CORSAR (32B) 1.8 (1983-1984)
VW DASHER (33) 1.6 i (1978-1980) )
VW PASSAT (32B) 1.9 (1981-1983)
VW PASSAT Variant (32B) 1.9 (1981-1983)
VW PASSAT Variant (33) 1.6 i (1978-1980)
VW SANTANA (32B) 1.6 (1981) -1982)
VW SANTANA (32B) 1.9 (1981-1983)
VW SANTANA (32B) 1.6 (1981-1984)
VW SANTANA (32B) 1.8 (1983-1984)
VW SCIROCCO (53B) 1.6 (1980-1982)
VW SCIROCCO ( 53B) 1.8 (1982-1989)
