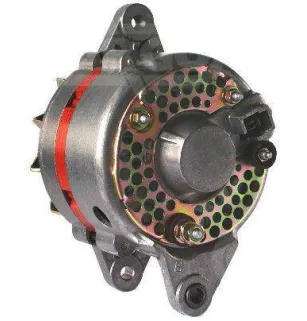

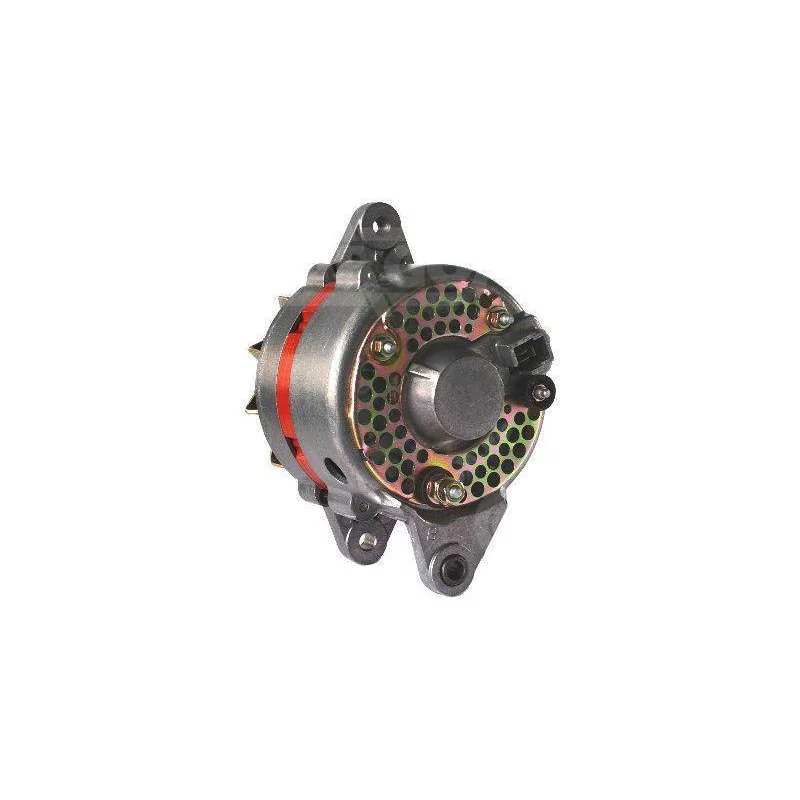

Alternator 14V 30Amp Denso 021000-0081, 021000-0124, 021000-0160, 021000-0249, 021000-0250, 021000-0296, 021000-0350

Alternator 14V 30Amp Denso 021000-0081, 021000-0124, 021000-0160, 021000-0249, 021000-0250, 021000-0296, 021000-0350

• BRAND: BOSCH
• New Alternator
• warranty: 2 years
• Without Deposit
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 30

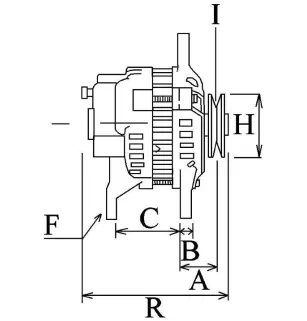

Physical Information
At Dist. pulley 43.00
B Width of arms 13.00
C Distance between supports 67.00
D Hole diameter 8.00
E Angle of tensioner paste 60
G Diameter of the hole of the tab M8
H Pulley dia. 70.00
I Pulley grooves 1

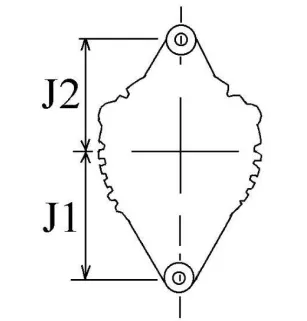

J Radius 77.75
J Radius 2 76.50
K B + M6
K Position B+ in min . 13
N CW Rotation

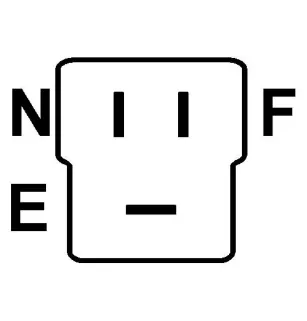

O Non PL15 Socket
R Total length mm 147.00

Information Catalogues
Pulley Pulley
Relay Without
Vacuum Pump No
Product Info Bn
For Daihatsu, Kubota, Suzuki, Toyota

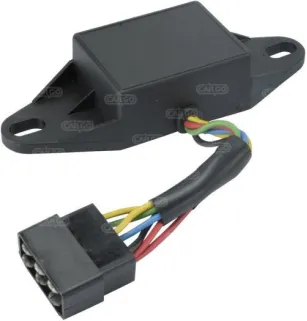

Remarks Regulator: HC-CARGO 130627.

REPLACES THE FOLLOWING REFERENCES:
021000-0081 Denso
021000-0124 Denso
021000-0160 Denso
021000-0249 Denso
021000-0250 Denso
021000-0296 Denso \{00 11} 021000- 0350 Denso
021000-0351 Denso
021000-0457 Denso
021000-0459 Denso
021000-0503 Denso
021000-0549 Denso
021000-1240 Denso
021000-1241 Denso
021000-1242 Denso
021000-1601 Denso
021000-1602 Denso
3 Denso 0011} 021000-1608 Denso
021000-2490 Denso
021000-2500 Denso
021000-2960 Denso
021000-2990 Denso
021000-2991 Denso
021000-3040 Denso
021000-3061 Denso
021000-4570 Denso
021000-4590 Denso
021000-5490 Denso \{00 11} 021000- 5600 Denso
021000-6850 Denso
021000-6851 Denso
021000-6860 Denso
021000-6861 Denso
021000-8120 Denso
021000-8680 Denso
021000-9560 Denso
021000-9561 Denso
1516852R DAF
27020-12011 Toyota
27020-12012 Toyota
2702012012000 Daihatsu
27020-12030 Toyota
27020-22010 Toyota
27020-22011 Toyota
27020-22011-000 Daihatsu
27020-22012 Toyota
27020-22020 Toyota
27020-22021 Toyota
27020-22022 Toyota
27020-23011 Toyota
27020-23012 Toyota
27020-23020 Toyota
27020-23021 Toyota
27020-23022 Toyota
27020-24010 Toyota
27020- 24020 Toyota
27020-24021 Toyota
27020-24090 Toyota
27020-31020 Toyota
27020-31030 Toyota
27020-31031 Toyota
27020-31032 Toyota
27020-31033 Toyota
27020-31034 Toyota
2702031043000 Daihatsu
27020-31050 Toyota
27020-31051 Toyota
27020-31051-000 Daihatsu
27020-31090 Toyota
27020-37011 Toyota
27020-38012 Toyota
27020-87102 Toyota
27020-87102-000 Daihatsu
27020-87103 Toyota
27020-87103-000 Daihatsu
27020-87209 Toyota
27020-87209-000 Daihatsu
27020-87705 Toyota
5812001631 Isuzu
5812001641 Isuzu
JA130 HC-PARTS

COMPATIBLE WITH THE FOLLOWING VEHICLES:< br /> Daihatsu, EU Light Vehicle
Komatsu, Forklift
Kubota, Industrial Engine
Suzuki, US Light Vehicle
Suzuki, EU Light Vehicle
Toyota, EU Light Vehicle
Toyota, US Light Vehicle
Toyota, Forklift
