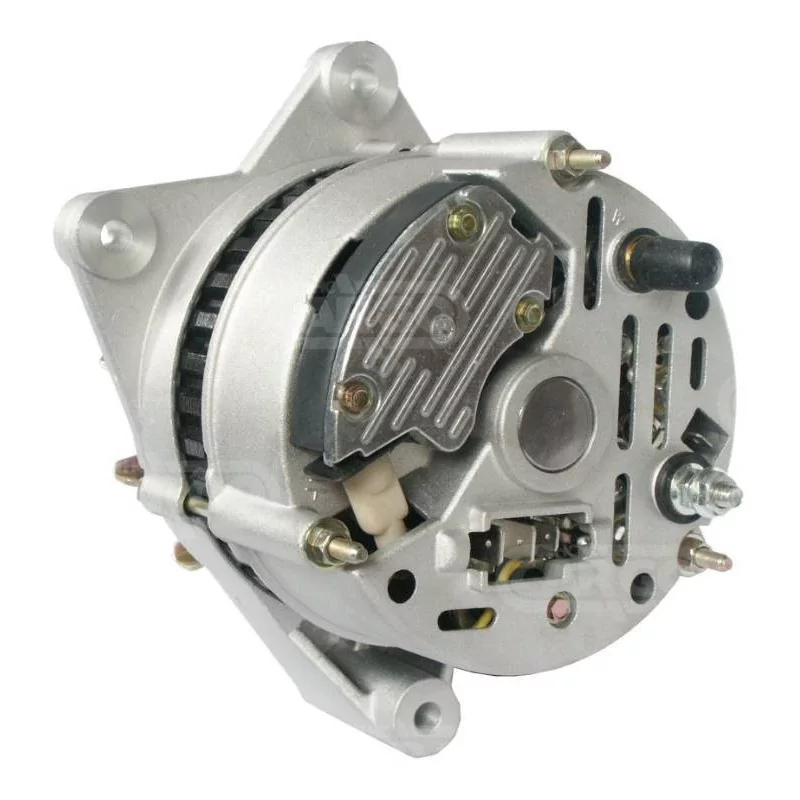

Alternator 14V 65Amp HC-Cargo 111203, Lucas NAB902, NAB904

Alternator 14V 65Amp HC-Cargo 111203, lucas NAB902, NAB904

• BRAND: BOSCH
• New Alternator
• Warranty: 2 years
• Without Deposit
• Quality Origin

CHARACTERISTICS:

Electrical Information
Voltage 14
Amp. 65
Isolated mass No
Terminal W

Physical information

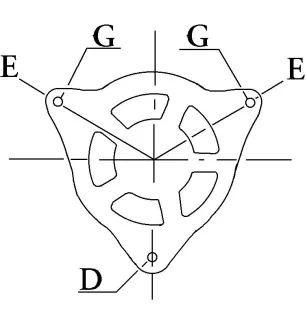

B Arm width 56.00
D Hole diameter 8.30
E Tensioning paste angle 50
E Tensioning paste angle 3 10
E Adjustable support belt/ pos. 2 60
G Leg hole diameter 8.30
G Holes for Adjustable Support Belt 2 8.30
G Leg hole diameter 3 8.30
I Pulley grooves 1
J Radius 85.00
J Radius 2 86.50
J Radius 3 86.00
J Radius 4 86.50
K B + M6
K Position B+ in min. 22

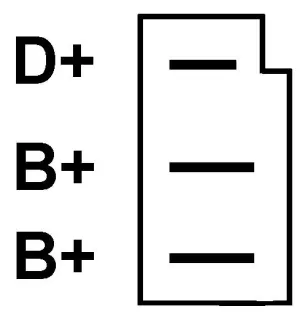

L D+ Plug Size
N Rotation CW
O Plug No PL22
Q Plug Type W M5
R Total Length mm 168.00

Information Catalogs
Pulley Pulley
Regulator Type Ir
Vacuum Pump No
Product Info Bn
Info No isolated return.
Remarks With bearing mounting bracket for left and right engine side. Universal alternator.

REPLACES THE FOLLOWING PART NUMBERS:
111203 HC-Cargo
NAB902 lucas
NAB904 lucas

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Various, Marine
