Alternator 28V 100Amp, Motorola USA 10-298, 110-158, 110-183, 110-298, 110-302, 110-316, Iskra 11.204.021, AAT3312

28V 100Amp alternator, Motorola USA 10-298, 110-158, 110-183, 110-298, 110-302, 110-316, Iskra 11.204.021, AAT3312

• BRAND: BOSCH
• Alternator: New
• warranty: 2 years
• Without Deposit
• Origin Quality

CHARACTERISTICS:
Electrical Information
Voltage 28
Amp. 100
Isolated mass Yes

Physical information

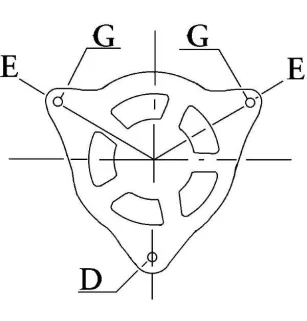

B Width of arms 14.70
C Distance between supports 103.00
D Hole diameter 13.00
E Tensioner paste angle 56
E Tensioner paste angle 3 4
E Adjustable support belt/ pos. 2 60
G Leg Hole Diameter 1/2" UNC
G Adjustable Support Belt Holes 2 1/2" UNC
G Leg Hole Diameter 3 1/2" UNC

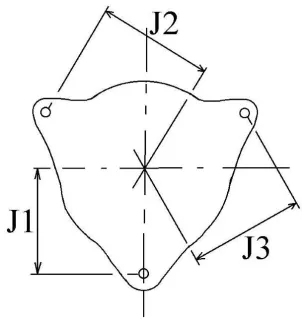

J Radius 108.00
J Radius 2 107.00
J Radius 3 106.50
J Radius 4 107.50
K B + M8
K Position B+ in min. 30
L D+ Size M5
N Rotation CW

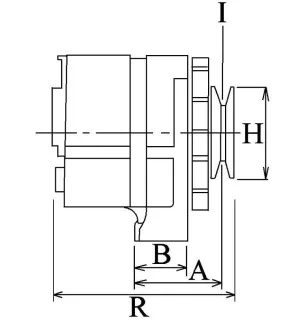

R Total length mm 249.00

Information Catalogues
Pulley Without
Fan Ef
Regulator Type Ir
Vacuum Pump No
Product Info Bn
For Volvo
Remarks Heater fan: HC-CARGO 134317. Pulley: HC-CARGO 131176.

REPLACES THE FOLLOWING PART NUMBERS:
10-298 Motorola USA
11.204.021 Iskra
110-158 Motorola USA
110-183 Motorola USA
110-298 Motorola USA
110-302 Motorola USA
110-316 Motorola USA
2557832 Volvo
3279220 Cummins
44-4021 Thermo King
504065529 Cummins
859490PB Butec
896892 Clark
8SC3002U Motorola USA
8SC3002Y Motorola
8SC3003U Motorola USA
8SC3011U Motorola USA
8SC3014 Motorola USA
8SC3014U Motorola USA
8SC3015U Motorola USA
8SC3019U Motorola USA
8SC3133U Prestolite
CCA0220 Cummins
AAT3312 Iskra

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Volvo Penta, Marine
