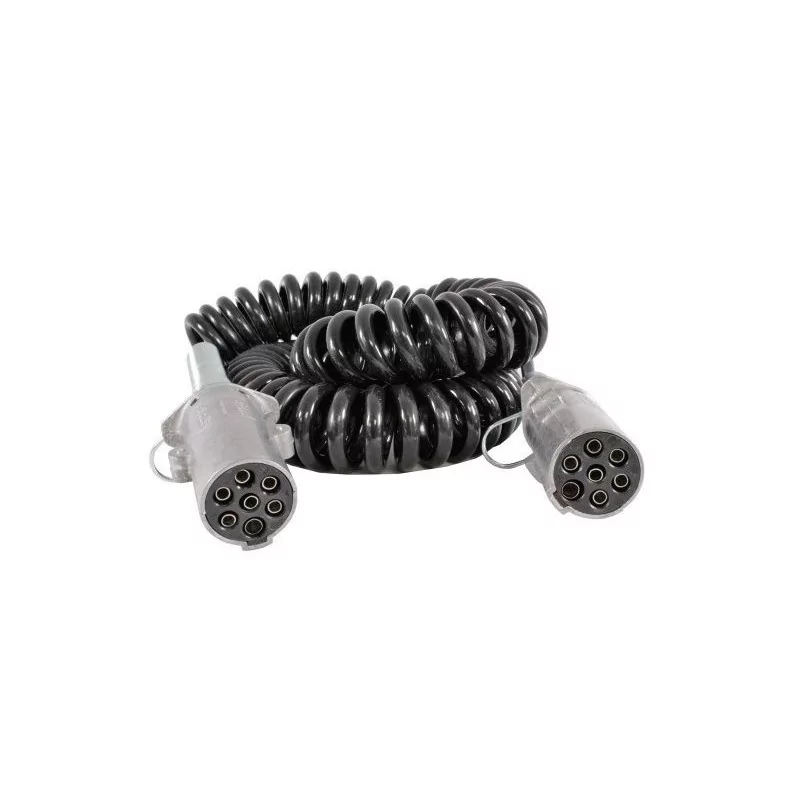

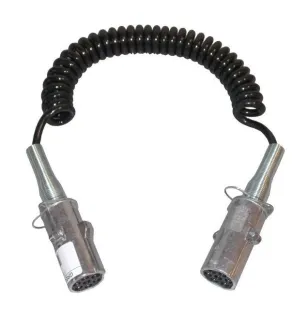

24N Female cords 7 conductors metal plugs ISO 1185 24 Volts WITH spring

24N - FEMALE

WITH SPRING

ISO 3751 STANDARD: 6 X 1mm2 + 1 X 1.5mm2

Black outer sheath in high-strength polyurethane.

This material is exceptionally strong, while remaining very flexible, which prevents pulling on the sockets during normal use.

Permanent elasticity

Resistance to shocks, abrasion, ozone, ultraviolet rays, chemical agents, temperature variations.

Red copper conductors, PVC insulated, marked according to BNA colors.

Temperature resistance:
- 30°C to + 85°C (cord only)
Operating voltage: 500 Volts (cord only)
Breakdown voltage: 4000 Volts (cord only)
