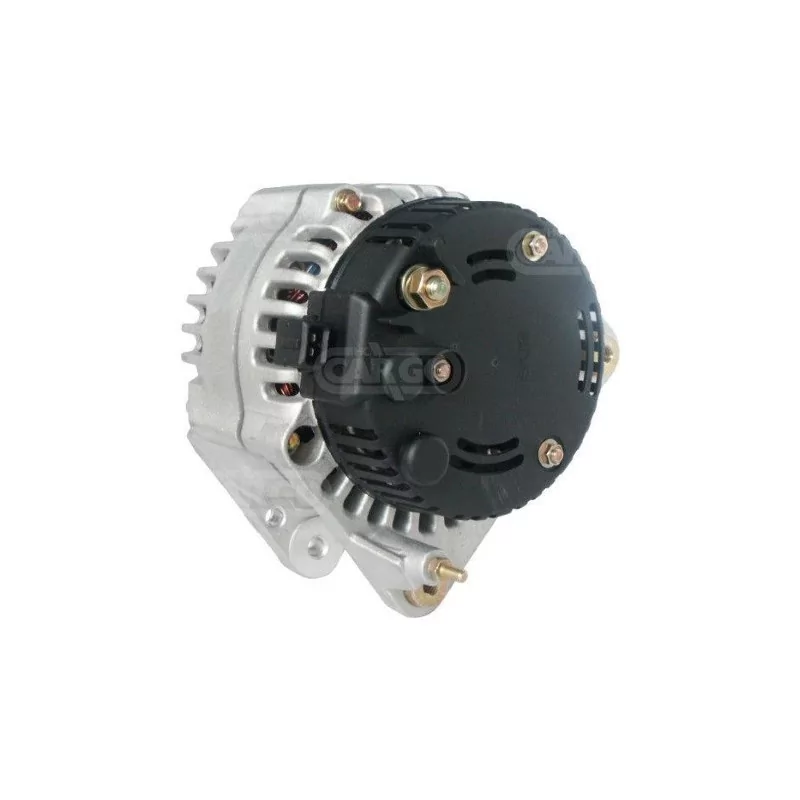

Alternator 14 Volts 90 A, Bosch 0986040950, Volkswagen 028903028J

SPECIFICATIONS:

Electrical Specifications

Voltage     14
Amp     90
Terminal     W

Physical Specifications

D     Hole Diameter     8.60
G     Lug Hole Diameter     8.60
B     Arm Width     14.00
E     Tensioner Angle     45
C     Dist. between support     61.50
H     Pulley dia.     49.60
A     Dist. pulley     39.50
i     Pulley grooves     6
j     Radius     90.00
j     Radius 2     90.00
k     Position B +     M8
n     Rotation     Cr
o     Regulator connector     PL23
Q     Plug type W     Plug
R     Total length mm     188.00

More information

Fan     If
Pulley     Serpentine pulley/pulley disengageable
Type regulator     Ir
Product info     Bn

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0986040950, 0123320038, 0986040950090.
Volkswagen: 028903028J.
Iskra: 11.203.078, AAK5349, IA1064.
Messmer: 210125, 210125B.
Prestolite: 35214370.
Valeo: 437547.
Magneti marelli: 943355118010.
Magneton: 9517482.
Krauf: ALB1297.
Motorherz: ALB1297WA.
HC-Parts: CA1297IR.
Delco: DRB0950.
Lucas: LRB00482.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

SEAT ALHAMBRA (7V8, 7V9) 1.9 TDI (1996-2000)
SEAT CORDOBA (6K1, 6K2) 1.9 SDI (1996-1999)
SEAT CORDOBA (6K1, 6K2) 1.9 TDI (1996-1999)
SEAT CORDOBA (6K1, 6K2) 1.9 TDI (1997-1999)
SEAT CORDOBA Vario (6K5) 1.9 SDI (1996-1999)
SEAT CORDOBA Vario (6K5) 1.9 TDI (1996-1999)
SEAT CORDOBA Vario (6K5) 1.9 TDI (1997-1999)
SEAT IBIZA II (6K1) 1.9 SDI (1996-1999)
SEAT IBIZA II (6K1) 1.9 TDI (1996-1999)
SEAT IBIZA II (6K1) 1.9 TDI (1997-1999)
SEAT INCA (6K9) 1.7 D (1996-2003)
SEAT TOLEDO I (1L) 1.9 TDI (1995-1999)
SEAT TOLEDO I (1L) 1.9 TDI (1996-1999)
VW CABRIO III (1E7) 1.9 TDI (1995-1998)
VW CABRIO IV (1E7) 1.9 TDI (1998-2002)
VW CADDY II VAN (9K9B) 1.7 SDI (1996-2000)
VW CADDY II VAN (9K9B) 1.9 TDI (1996-2004)
VW CADDY II (9K9B) 1.9 TDI (1996-2004)
VW CADDY II (9K9A) 1.7 SDI (1996-2000)
VW CADDY II (9K9A) 1.9 SDI (1995-2004)
VW CADDY II (9K9A) 1.9 TDI (1996-2004)
VW DERBY (6KV2) 64 1.9 SDI (1995-1999)
VW DERBY (6KV2) 90 1.9 TDI (1996-2001)
VW DERBY (6KV2) 57 1.7 SDI (1997-2001)
VW DERBY (6KV2) 110 1.9 TDI (1998-2002)
VW GOLF III (1H1) 1.9 TD,GTD (1991-1997)< br />VW GOLF III (1H1) 1.9 TDI (1993-1997)
VW GOLF III Cabriolet (1E7) 1.9 TDI (1995-1998)
VW GOLF III Variant (1H5) 1.9 D (1993-1999)
VW GOLF III Variant ( 1H5) 1.9 TD (1993-1999)
VW GOLF IV Cabriolet (1E7) 1.9 TDI (1998-2002)
VW POLO (9N_) 1.8 GTI (2005-2009)
VW POLO CLASSIC (6KV2) 64 1.9 SDI (1995-1999)
VW POLO CLASSIC (6KV2) 90 1.9 TDI (1996-2001)
VW POLO CLASSIC (6KV2) 57 1.7 SDI (1997-2001)
VW POLO CLASSIC (6KV2) 110 1.9 TDI (1998-2002)
VW POLO Variant (6KV5) ) 1.9 TDI (1997-2001)
VW POLO Variant (6KV5) 1.7 SDI (1997-2001)
VW POLO Variant (6KV5) 1.9 SDI (1997-2001)
VW POLO Variant (6KV5) 1.9 TDI (1998-2001)
VW SHARAN (7M8, 7M9, 7M6) 1.9 TDI (1996-2000)
