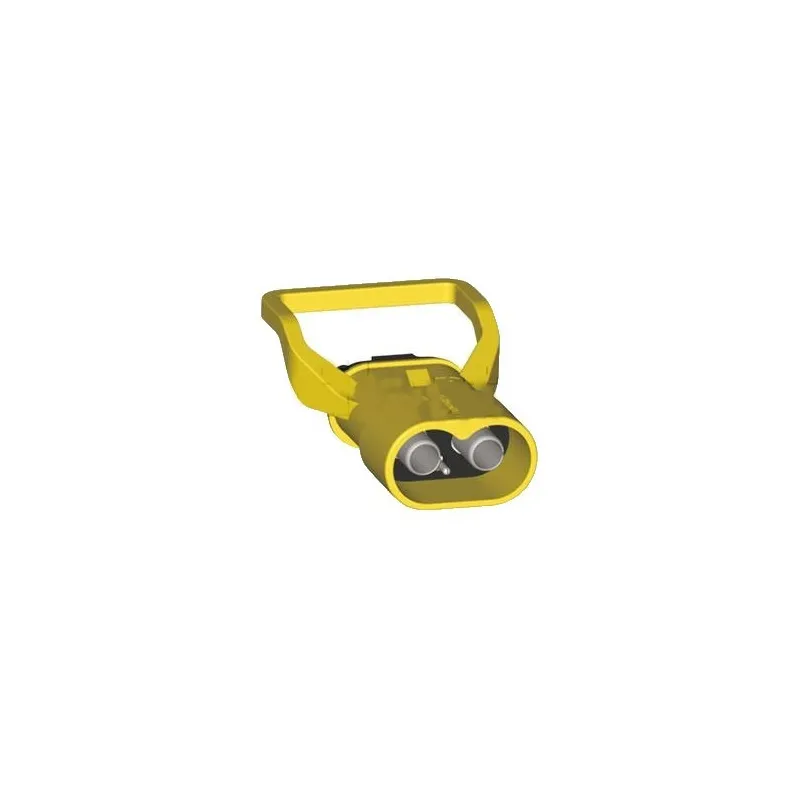

Polyamide 6 mobile Y plug with auxiliary contact
  • Polyamide 6 mobile Y plug with auxiliary contact

Polyamide 6 mobile Y plug with auxiliary contact

Y49342
Proconect

With auxiliary contact - 250A - 600V

€81.90
VAT included
€68.25 VAT excluded
LIVRAISON 24/48H
Quantity
EN STOCK - LIVRAISON 24/48H

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Polyamide 6 mobile Y plug

Very robust connector:
- Yellow casing in perfectly insulating, unbreakable and UV-resistant Polyamide 6 copolymer material.
- Easy to assemble: 1 carriage on which the 2 + and - contacts are placed.
- The shape of the casing prevents the poles from being reversed when connecting.
- Interchangeable with any Y-type plug.
- Crimp or solder contacts.
- Locking pin coinciding with the base cover (if equipped).

Technical data:

- Nominal current / maximum current: 200 A / 250 A.
- Nominal voltage / maximum voltage: 150 V / 600 VDC.
- Operating temperature: -30° to +70°.
- Sealing nipple: black polyurethane / Gasket: black neoprene foam.
- Crimp or solder contacts: copper alloy.
- Conductor sections: 50 mm2.
Product Details
Y49342
New

Specific References

UPC
400000144726
EAN13
4000000144625
