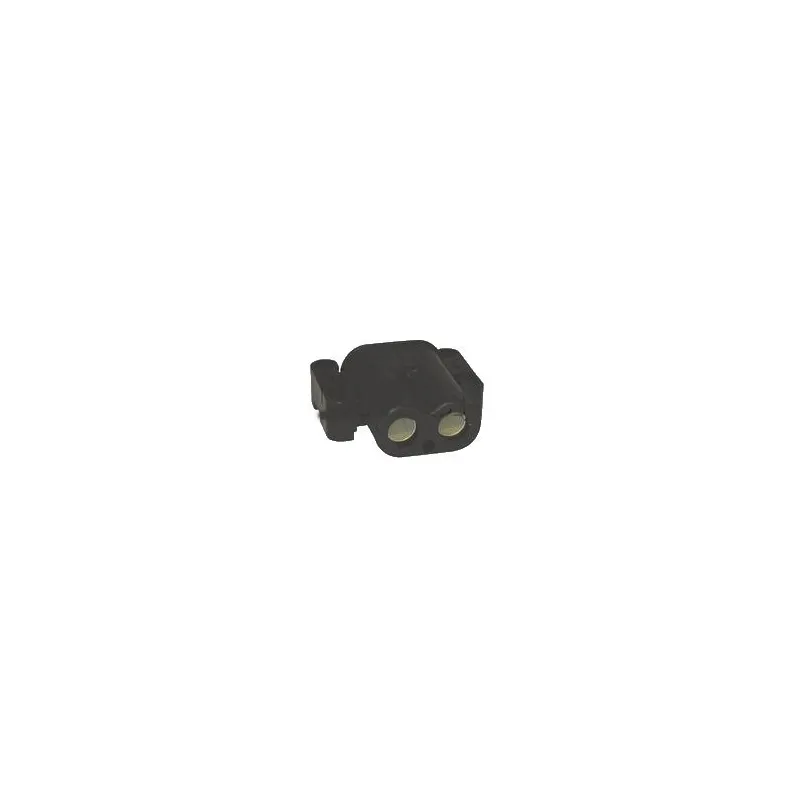

Fixed Y-base With auxiliary contact

Fixed Y-base

- Polyamide material.
- Equipped with female contacts in copper alloy to crimp or solder, section 50 mm2 (AWG 1/0).
- Auxiliary contact to solder.
- The base with nipple and cover is IP66.

Technical data:
- Nominal current / maximum current: 200 A / 250 A.
- Nominal voltage / maximum voltage: 150 V / 600 Vdc.
- Operating temperature: -30° to + 70°.
- Sealing nipple: black polyurethane / Gasket: black neoprene foam.
- Crimp or solder contacts: copper alloy.
- Conductor section: 50 mm2.
