Fixed Y base Without auxiliary contact
  • Fixed Y base Without auxiliary contact
  • Fixed Y base Without auxiliary contact

Fixed Y base Without auxiliary contact

Y49312
Proconect

Fixed Y base Without auxiliary contact

€34.90
VAT included
€29.08 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK

  Delivery policy

(edit with the Customer Reassurance module)





  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

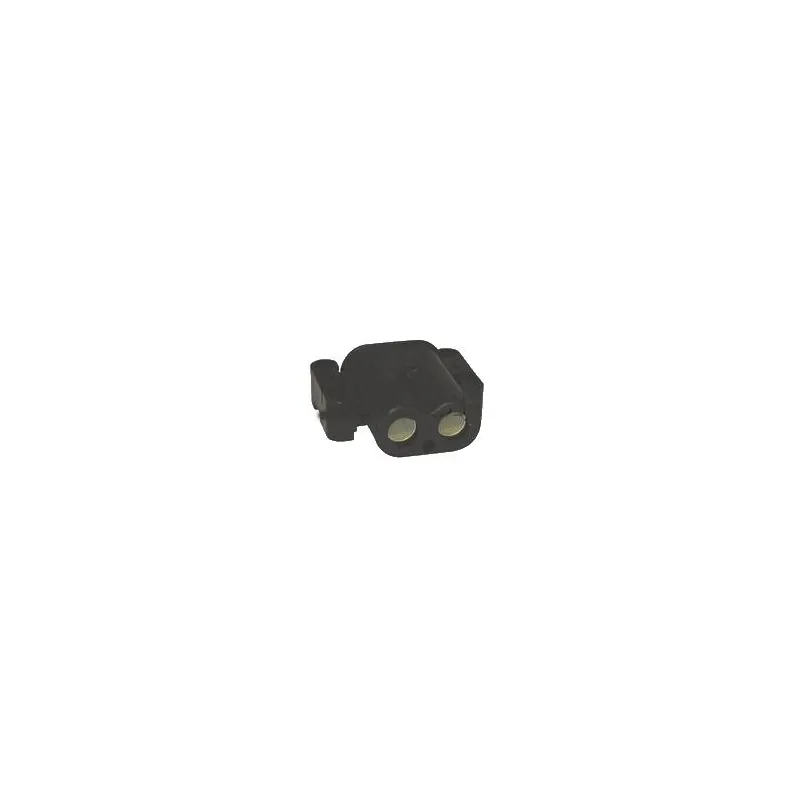

Fixed Y base

- Polyamide material.
- Equipped with female contacts in copper alloy to crimp or solder, section 50 mm2 (AWG 1/0).
- Auxiliary contact to solder.
- The base with nipple and cover is IP66.

Technical data:
- Nominal current / maximum current: 200 A / 250 A.
- Nominal voltage / maximum voltage: 150 V / 600 Vdc.
- Operating temperature: -30° to + 70°.
- Sealing nipple: black polyurethane / Gasket: black neoprene foam.
- Crimp or solder contacts: copper alloy.
- Conductor section: 50 mm2.
Product Details
Y49312
New

Specific References

UPC
400000144733
EAN13
4000000144632
MPN
3662258037992
