Alternator 14 Volt 70 A, Bosch 0986036471, Mazda E285-18-300B

Name: Alternator 14 Volt 70 A, Bosch 0986036471, Mazda E285-18-300B
Brand: AutoTruck Company
SKU: 110664
Price: 172.08 EUR
Availability: InStock

Reference 110664

Brand AutoTruck Company

14 Volts - 70 Amp - Delco: DRA3098 - Lucas: LEA0180

€172.08

VAT included

€143.40 VAT excluded

LIVRAISON 24/48H

Quantity

IN STOCK - IMMEDIATE DELIVERY

Delivery policy

(edit with the Customer Reassurance module)

Security policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

SPECIFICATIONS:

Electrical Specifications

Voltage    14
Amp    70
Terminal    W

Physical Specifications

D    Hole Diameter    M10
G    Lug Hole Diameter    M8
B    Arm Width    13.10
E    Tensioner Angle    60
C    Dist. between support    66.30
H    Pulley dia.    58.08
A    Dist. pulley    44.50
i    Pulley grooves    3

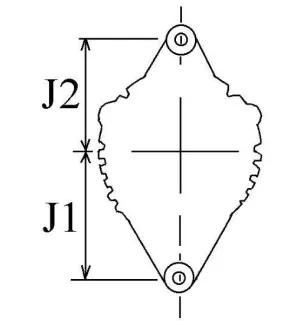

j    Radius    90.00
j    Radius 2    85.00
k    Position B +    M6
n    Rotation    Cr
o    Regulator connector    PL07
R    Total length mm    161.50

More information

Fan    If
Pulley    Serpentine pulley

REPLACES THE FOLLOWING REFERENCES:

Bosch: 0986036471, 9120690352, 9120690426.
Waiglobal: 1-1142-01MI, 1-1142-01MI-2, 1-1145-01MI.
Cargo: 111340.
Wps: 13196, 13196N, 13297, 13297R.
Prestolite: 20100790.
Messmer: 210158, 210158R.
Valeo: 603025, TA000B16701, VA252.
Magneti marelli: 943356935010.
Mitsubishi: A002T05892, A002T05892A, A002T05892B, A002T05892ZC, A002T05893, A002T05893ZC, A002T06092, A002T19991, A002T19991A, A002T20191, A002T20191ZC, A2T05892, A2T05892A, A2T05892B, A2T05892C, A2T05892ZC, A2T05893, A2T05893ZC, A2T06092, A2T19991, A2T19991A, A2T20191, A2T20191ZC, HAB170144.
Krauf: ALM0365, ALM0575.
Delco: DRA3098.
Mazda: E285-18-300B, E28518300B, F202-18-300, F20218300, F225-18-300, F285-18-300, F285-18-300B, F285-18-300C, F285-18-300E, F28518300, F28518300B, F28518300C, F290-18-300, F290-18-300A, F290-18-300B, F29018300, F29018300A, F29018300B, F8B1-18-300, F8B1-18-300A, F8B1-18-300B, F8B1-18-300C, F8B1-18-300D, F8B1-18-300E, F8B1-18-300G, F8B118300, F8B118300A, F8B118300B, F8B118300E, F8B7-18-300.
Ford: E92Z10346A, E92Z10346B, F02Z10346B, F02Z10346D, F02Z10346F, F22518300, F92Z10346A.
HC-Parts: JA575IR, JA679IR.
Lucas: LEA0180, LRA00790, LRA02627, LRA790.
Mando: TA000B16701, TA000B22301.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

MAZDA 626 III (GD) 2.0 (1987-1990)
MAZDA 626 III (GD) 2.2 12V (1987-1991)
MAZDA 626 III (GD) 1.8 (1987-1992)
MAZDA 626 III (GD) 2.0 12V (1987-1992)
MAZDA 626 III (GD) 2.0 16V (1987-1992)
MAZDA 626 III (GD) 1.6 (1987-1992)
MAZDA 626 III Break (GV) 2.0 12V (1987-1990)
MAZDA 626 III Break (GV) 1.8 (1988-1992)
MAZDA 626 III Break (GV) 2.0 16V (1988-1992)
MAZDA 626 III Break (GV) 2.2 12V 4WD (1991-1992)
MAZDA 626 III Estate (GV) 2.2 12V (1989-1996)
MAZDA 626 III Estate (GV) 2.0 (1988-1997)
MAZDA 626 III Hatchback (GD) 2.0 16V (1987) -1989)
MAZDA 626 III Hatchback (GD) 2.0 (1987-1990)
MAZDA 626 III Hatchback (GD) 2.0 16V (1987-1990)
MAZDA 626 III Hatchback (GD) 2.2 12V 4WD (1987-1990)
MAZDA 626 III Hatchback (GD) 1.8 (1987- 1992)
MAZDA 626 III Hatchback (GD) 2.0 12V (1987-1992)
MAZDA 626 III Hatchback (GD) 1.6 (1987-1992)
MAZDA 626 III Hatchback (GD) 2.2 12V (1988-1992)
MAZDA 626 III Station Wagon (GV) 2.0 12V (1987-1990)
MAZDA 626 III Station Wagon (GV) 1.8 (1988-1992)
MAZDA 626 III Station Wagon (GV) 2.0 16V (1988-1992)
MAZDA 626 III Station Wagon (GV) 2.2 12V 4WD (1991-1992)
MAZDA 626 III Station Wagon (GV) 2.2 12V (1989-1996)
MAZDA 626 III Station Wagon (GV) 2.0 (1988-1997)< br />MAZDA 626 III (GD) 2.0 12V (1987-1988)
MAZDA 626 III (GD) 2.0 (1987-1990)
MAZDA 626 III (GD) 2.0 16V (1987-1990)
MAZDA 626 III (GD) 1.8 (1987-1991)
MAZDA 626 III ( GD) 2.2 12V (1988-1991)
MAZDA 626 III (GD) 1.6 (1987-1992)

Product Details

Reference 110664

Condition New

Data sheet

Tension: 14 Volts
Ampérage: 70A

Specific References

UPC: 400000042251
EAN13: 4000000042198
