Lichtmaschine 14 Volt 70 A, Bosch 0986036471, Mazda E285-18-300B

SPEZIFIKATIONEN:

Elektrische Spezifikationen

Spannung     14
Ampere     70
Klemme     W

Physikalische Spezifikationen

D   Lochdurchmesser M10 M10 G Lochdurchmesser M8 M8 B Armbreite 13,10 13,10 E Spannwinkel 60 60 C Dist. zwischen Stütze     66,30
H     Riemenscheibendurchm.     58,08
A     Dist. Riemenscheibe     44,50
i     Riemenscheibenrillen     3

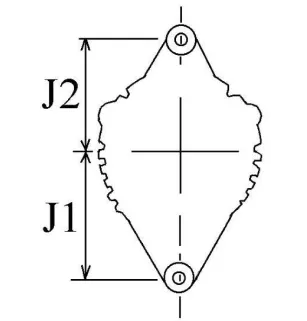

j     Radius     90,00
j     Radius 2     85,00
k     Position B +     M6
n     Rotation.    Cr
o     Regleranschluss     PL07
R     Gesamtlänge mm     161,50

Weitere Informationen

Lüfter     Wenn
Riemenscheibe     Serpentinenriemenscheibe

ERSETZEN SIE DIE FOLGENDE REFERENZEN:

Bosch: 0986036471, 9120690352, 9120690426.
Waiglobal: 1-1142-01MI, 1-1142-01MI-2, 1-1145-01MI.
Fracht: 111340.
Wps: 13196, 13196N, 13297, 13297R.
Prestolite: 20100790.
Messmer: 210158, 210158R.
Valeo: 603025, TA000B16701, VA252.
Magneti marelli: 943356935010.
Mitsubishi: A002T05892, A002T05892A, A002T05892B, A002T05892ZC, A002T05893, A002T05893ZC, A002T06092, A002T19991, A002T19991A, A002T20191, A002T20191ZC, A2T05892, A2T05892A, A2T05892B, A2T05892C, A2T05892ZC, A2T05893, A2T05893ZC, A2T06092, A2T19991, A2T19991A, A2T20191, A2T20191ZC, HAB170144.
Krauf: ALM0365, ALM0575.
Delco: DRA3098.
Mazda: E285-18-300B, E28518300B, F202-18-300, F20218300, F225-18-300, F285-18-300, F285-18-300B, F285-18-300C, F285-18- 300E, F28518300, F28518300B, F28518300C, F290-18-300, F290-18-300A, F290-18-300B, F29018300, F29018300A, F29018300B, F8B1-18-300, F8B1-18-300A, F8B1-18-300B, F8B1-18-300C, F8B1-18-300D, F8B1-18-300E, F8B1-18-300G, F8B118300, F8B118300A, F8B118300B, F8B118300E, F8B7-18-300.
Ford: E92Z10346A, E92Z10346B, F02Z10346B, F02Z10346D, F02Z10346F, F22518300, F92Z10346A.
HC-Teile: JA575IR, JA679IR.
Lucas: LEA0180, LRA00790, LRA02627, LRA790.
Mando: TA000B16701, TA000B22301.

KOMPATIBEL MIT DEN FOLGENDEN FAHRZEUGEN:

MAZDA 626 III (GD) 2.0 (1987-1990)
MAZDA 626 III ( GD) 2,2 12V (1987-1991)
MAZDA 626 III (GD) 1.8 (1987-1992)
MAZDA 626 III (GD) 2.0 12V (1987-1992)
MAZDA 626 III (GD) 2.0 16V (1987-1992)
MAZDA 626 III (GD) 1,6 (1987-1992)
MAZDA 626 III Break (GV) 2,0 12V (1987-1990)
MAZDA 626 III Break (GV) 1.8 (1988-1992)
MAZDA 626 III Break (GV) 2.0 16V (1988-1992)
MAZDA 626 III Break (GV) 2.2 12V 4WD (1991-1992)
MAZDA 626 III Break (GV) 2.2 12V (1989–1996)
MAZDA 626 III Kombi (GV) 2.0 (1988–1997)
MAZDA 626 III Schrägheck (GD) 2.0 16V (1987–1989)
MAZDA 626 III Schrägheck (GD) 2.0 (1987-1990)
MAZDA 626 III Hatchback (GD) 2.0 16V (1987-1990)
MAZDA 626 III Hatchback (GD) 2.2 12V 4WD (1987-1990)
MAZDA 626 III Hatchback (GD) 1.8 (1987-1992)
MAZDA 626 III Hatchback (GD) 2.0 12V (1987-1992)
MAZDA 626 III Hatchback (GD) 1.6 (1987-1992)
MAZDA 626 III Hatchback (GD ) ) 2.2 12V (1988-1992)
MAZDA 626 III Station Wagon (GV) 2.0 12V (1987-1990)
MAZDA 626 III Station Wagon (GV) 1.8 (1988-1992)
MAZDA 626 III Station Wagon (GV) 2.0 16V ( 1988-1992)
MAZDA 626 III Station Wagon (GV) 2.2 12V 4WD (1991-1992)
MAZDA 626 III Station Wagon (GV) 2.2 12V (1989-1996)
MAZDA 626 III Station Wagon (GV) 2.0 (1988-1997)< br />MAZDA 626 III (GD) 2.0 12V (1987-1988)
MAZDA 626 III (GD) 2.0 (1987-1990)
MAZDA 626 III (GD) 2.0 16V (1987-1990)
MAZDA 626 III (GD) 1.8 (1987-1991)
MAZDA 626 III (GD) 2.2 12V (1988-1991)
MAZDA 626 III (GD) 1.6 (1987-1992)
