Alternator 28 Volts 20 A Isuzu 5812003300, 5812003350, Mitsubishi A001T70783, Hitachi LR220-23

110448

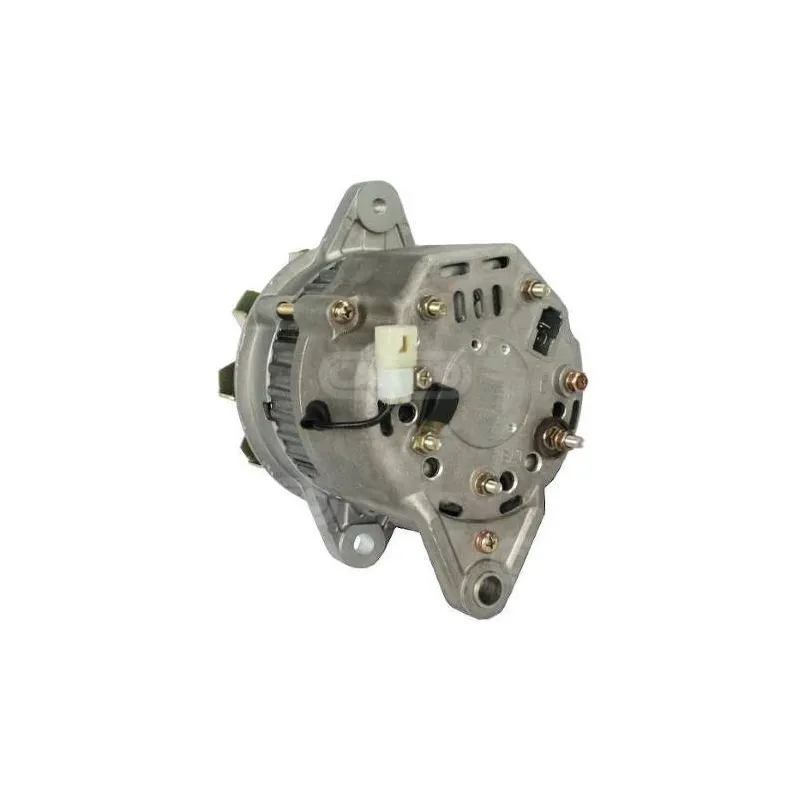

Alternator 28 Volts 20 A Isuzu 5812003300, 5812003350, Mitsubishi A001T70783, Hitachi LR220-23

€141.36
VAT included
€117.80 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Alternator 28 Volts 20 A Isuzu 5812003300, 5812003350, Mitsubishi A001T70783, Hitachi LR220-23

  • New Starter
  • Warranty: 2 years
  • Without Deposit
  • Original Quality

CHARACTERISTICS :
Electrical Information
Voltage 28
Amp 20
Terminal W


Physical Information
A Pulley Dist. 44.50

B Arm Width 13.50

C Pulley Dist. between bracket 81.30

D Hole diameter 10.40

E Tensioner paste angle 60

G Hole diameter of the    M8 tab

H Pulley dia. 85.00

I Pulley grooves 1

J Radius 78.00

J Radius 2 78.00

K B + M5

K Position B+ in min. 20

L D+ Size Plug

N Rotation CW

O Plug no PL09

R Total length mm 165.00



Catalog Information

Pulley

Regulator type Ir

Vacuum pump No

Product info Bn

For Mitsubishi


REPLACES THE FOLLOWING PART NUMBERS:
5812003300 Isuzu
5812003350 Isuzu
A001T70783 Mitsubishi
A1T70783 Mitsubishi
LR220-23 Hitachi
LR220-24 Hitachi


COMPATIBLE WITH THE FOLLOWING VEHICLES:
Mitsubishi, Forklift
Various Agriculture Vehicles, Agricultural Machinery

Product Details
110448
New

Data sheet

Tension
28 Volts
Ampérage
20A

Specific References

UPC
400000041810
EAN13
4000000041757
