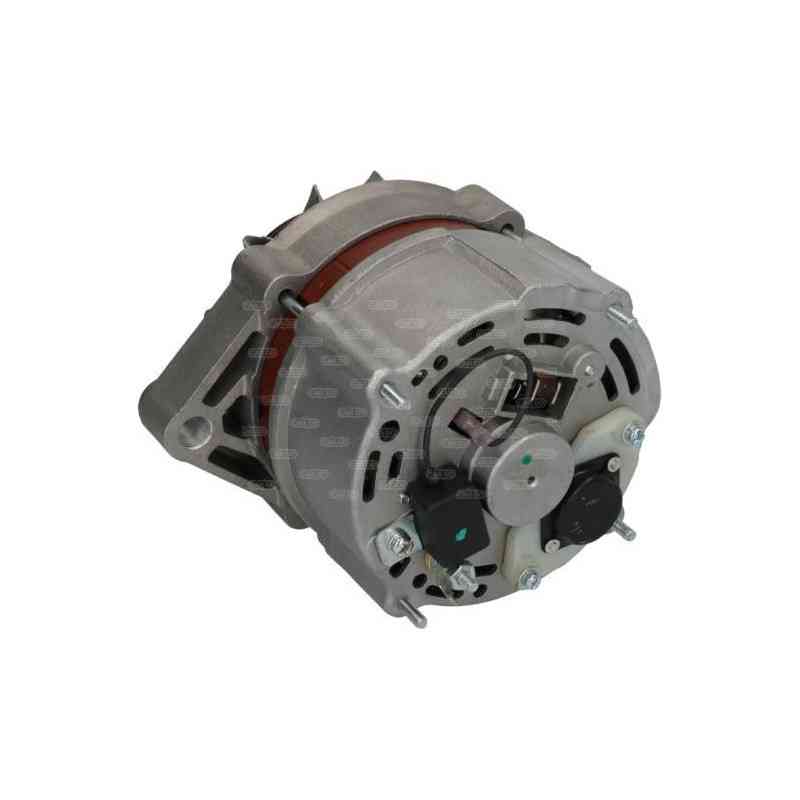

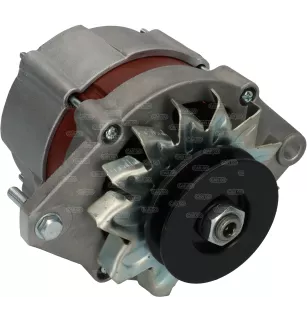

Alternator 14V 65amp Iskra 11.201.095, Massey Ferguson 1618473m91, 1618474m91, 1618477m91, 1618478m91
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Characteristics:
Electric information
Voltage 14
amp. 65
Borne W

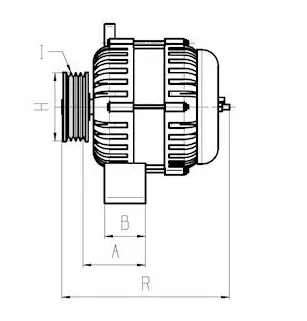

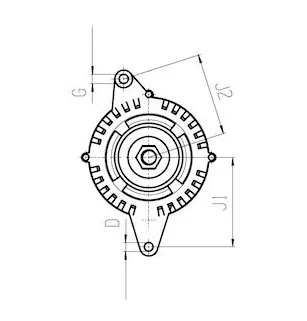

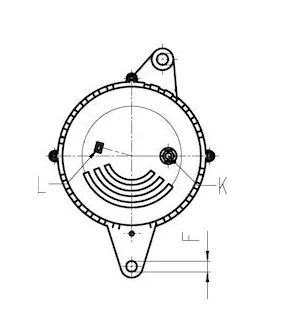

Physical information
a dist. Pulley 58.00
B Arm width 27.00
D Diameter of the hole 10.00
e Angle paste tensioner 60
g Diameter hole of the paw 8.00
H POULUL DIA. 80.00
i Rainures of the pulley 1
J Radius 83.00
J Radius 2 86.50
K B + M6
k Position B + in min. 20

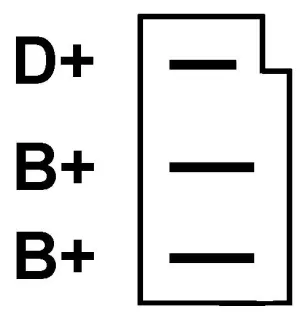

L D+ Plug size
n Rotation CW
o STATE NO PL22
Information Catalogs
Pulley Pulley
Type Ir
Vacuum pump no
for Massey Ferguson
replaces the following references:
11.201.095 ISKRA
1618473M91 MASSEY FERGUSON
1618474M91 MASSY FERGUSON
1618477M91 MASSEY FERGUSON
1618478M91 MASSEY FERGUSON
1691795R92 MASSEY FERGUSON
1874681M91 MASSEY FERGUSON
1875955M MASSEY FERGUSON
1875955M91 MASSEY FERGUSON
1875958M92 MASSEY FERGUSON
1895271M91 MASSEY FERGUSON
1897264M91 MASSEY FERGUSON
23865A LUCAS
24123a Lucas
3637264R91 MASSEY FERGUSON
510-38 Motorola
510-39 Motorola
510-56 Motorola
9AR2547 Motorola
9AR2547F Motorola} 9ar2548 Motorola
9ar2548k Motorola
9ar2549 Motorola
9ar2549f Motorola
9ar2566 Valeo
NAB302 LUCAS
AAG1310 ISKRA}
Compatible with the following vehicles:
Massey Ferguson, Agricultural machines
