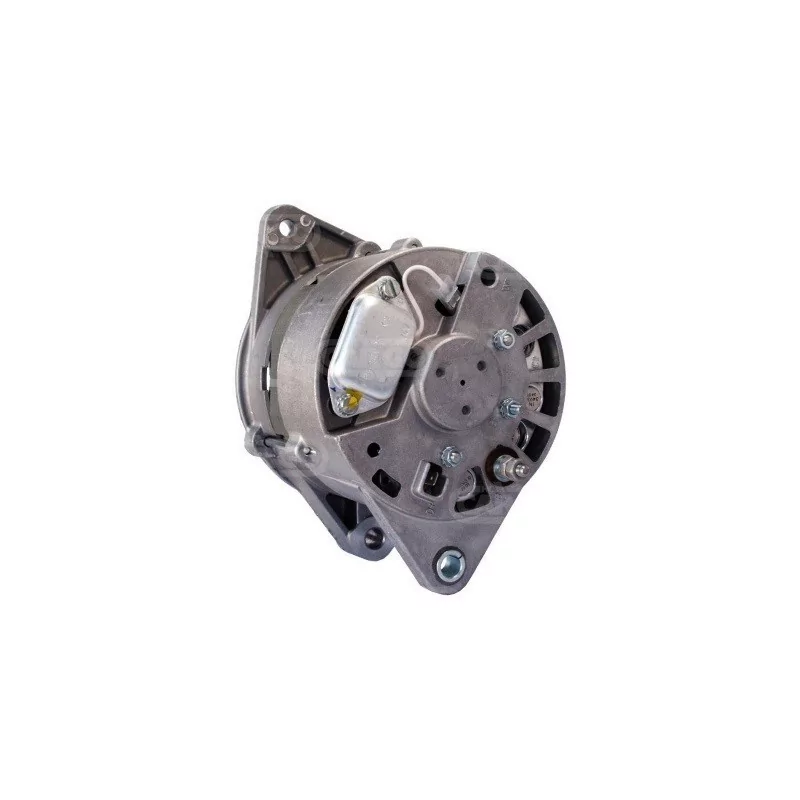

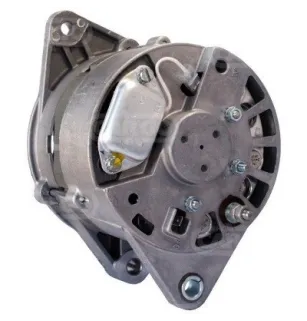

Alternator 14V 55Amp, Magneton (Pal/Skoda) 334113516653, 443113516650, 443113516653, 9516650, 9516653

Alternator 14V 55Amp, Magneton (Pal/Skoda) 334113516653, 443113516650, 443113516653, 9516650, 9516653

• 7} BRAND: BOSCH
• New Alternator
• warranty: 2 years
• Without Deposit
• Origin Quality

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 55

Physical Information

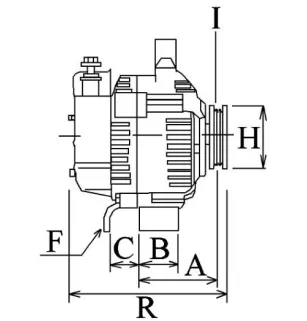

B Arm width 27.00
C Dist. between bracket 65.80

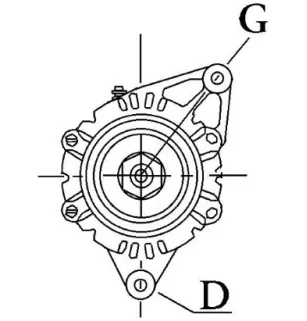

D Hole diameter M10
E Tensioner paste angle 5
G Hole diameter of the tab 10.30

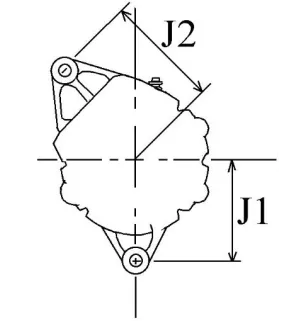

J Radius 84.50
J Radius 2 90.00
K B + M6
K Position B+ in min. 25
L D+ Size 6.30
R Total length mm 170.00

Information Catalogues
Pulley Without
Regulator type Ir
Vacuum pump No
Product info BN/OE

REPLACES THE FOLLOWING REFERENCES:
334113516653 Magneton (Pal/Skoda)
443113516650 Magneton (Pal/Skoda)
443113516653 Magneton (Pal/Skoda)
9516650 Magneton (Pal/Skoda)
9516653 Magneton (Pal/Skoda)

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Chang Feng (Liebao), Agricultural Machinery
Zetor, Agricultural Machinery
ZTS Tees, Industry
