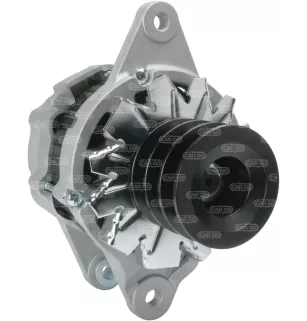

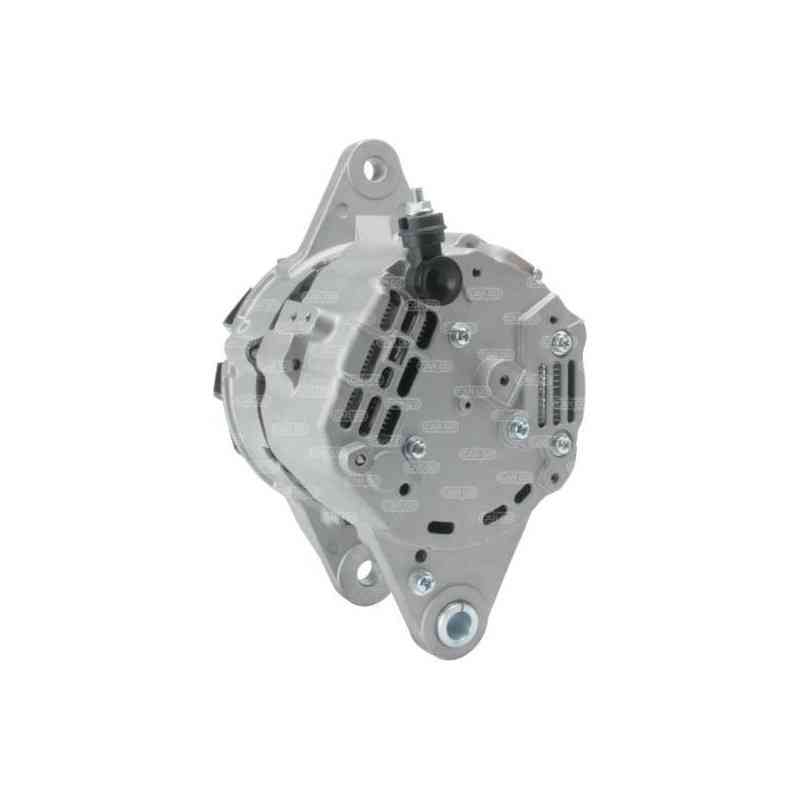

altering 28v 50amp Isuzu 1812005303, 1-81200530-3, 1812005902, 1812005903
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Characteristics:
Electric information
voltage 28
amp. 50
physical information
a dist. Pulley 60.00
B Arm width 13.00
C Dist. Between support 70.00
D Diameter of the hole 14.50
e Angle paste tensioner 60
g Diameter hole of the paw 12.40
h Poulie dia. 84.50
I RAINURES DE LA POULUL 3
J Radius 110.00
J Radius 2 115.00
K B + M6
k Position B + in min. 55

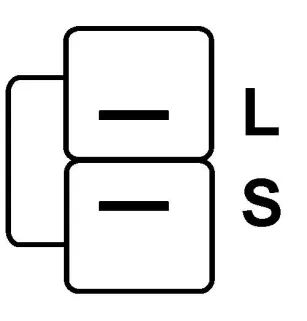

L D+ Plug size
n Rotation CW
o STAGE NO PL07
R Total length mm 225.00
Information Catalogs
Poulie SP
Type REGULATOR IR
Vacuum pump no
info Product BN
replaces the following references:
1812005303 ISUZU 1-81200530-3 ISUZU
1812005902 ISUZU
1812005903 ISUZU
A004TU5486 MITSUBISHI
A004TU9586 MITSUBISHI
A4TU5485 MITSUBISHI A4TU5486 MITSUBISHI
A4TU9586 MITSUBISHI
AT263669 Mitsubishi
Compatible with the following vehicles:
Hitachi, agricultural machines
john deer, industry
Various Industrial Applications, Industry
