Reference: A10065
Brand: Vignal

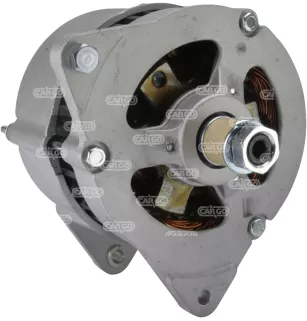

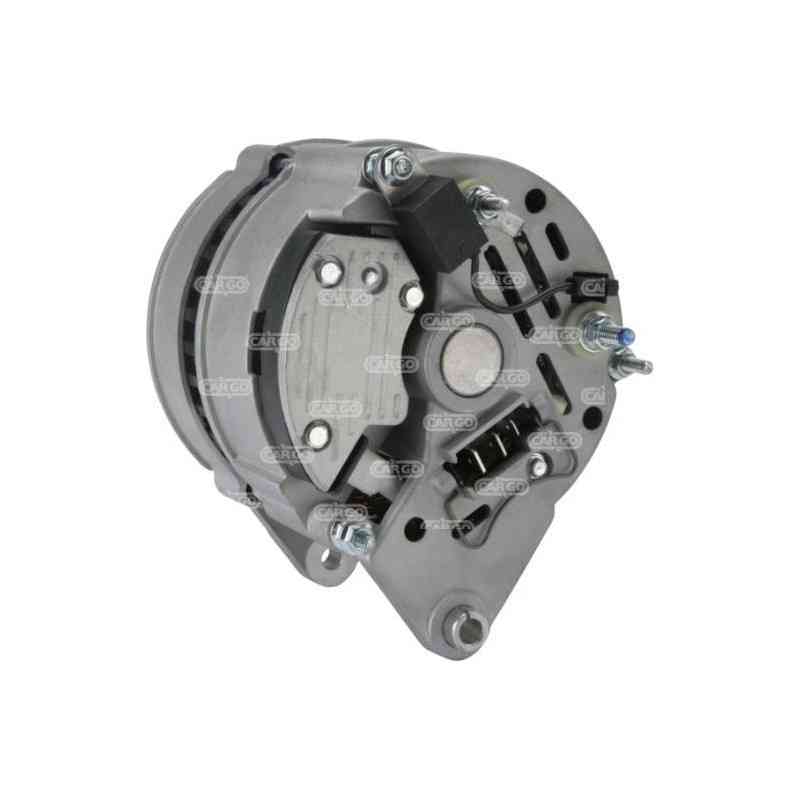

Altering 14v 70amp Lucas 114360, 24161d, 24294a, perkins 2871a163
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Characteristics:
Electric information
voltage 14
amp. 70
terminal W
Physical information
B Arm width 11.50
C Dist. Between support 83.00
D Diameter du hole 8.00
e Angle paste tensioner 55
g Diameter Trou de la Patte 8.00
J Radius 85.00
J Radius 2 85.00
K B + M6
k position B + in min. 10
L D+ Plug size
n Rotation CW
Q Type taken W Plug
R Total length mm 164.00
Information Catalogs
Pulley without
type Ir
Vacuum pump no
info Product BN
for a127
replaces the following references: } 114360 Lucas
24161d Lucas
24294a Lucas
2871a163 perkins
3933142m91 Massey Ferguson
54022616A Lucas
} Following vehicles:
JCB, industry
Massey Ferguson, Agricultural machinery
