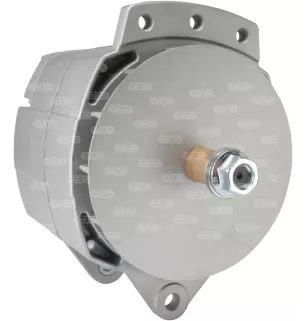

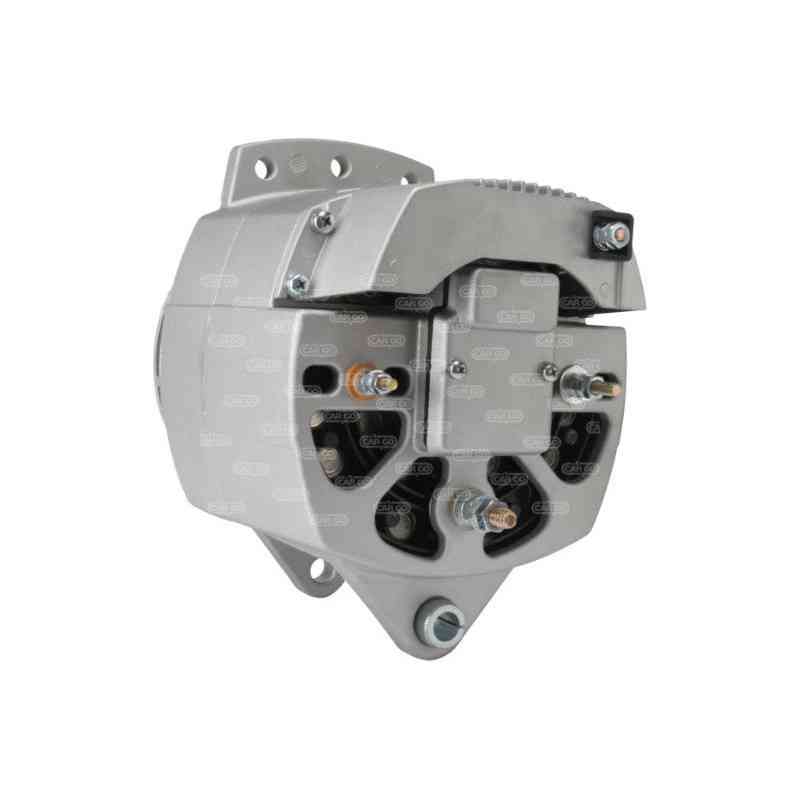

altering 14V 185AMP Motorola USA 110-565, HC-Cargo 113176, New Holland 87592254, Motorola 8SC2023Z
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Characteristics:
Electric information
voltage 14
amp. 185
isolated mass yes
terminal W

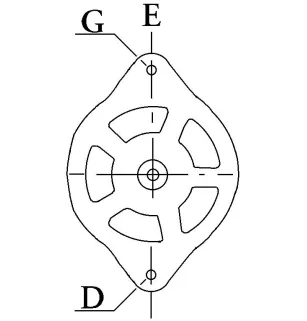

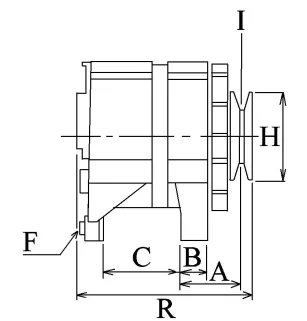

Physical information
B Arm width 14.00
C Dist. Between support 103.00
D Diameter of the hole 13.00
e Angle paste tensioner 56
e Angle paste tensioner 3 4
e Adjustable support belt/ pos. 2 60
g Diameter Trou de la Patte M12
E TROWER SUPPLY TUED 2 M12
G Diameter Trou de la Patte 3 M12

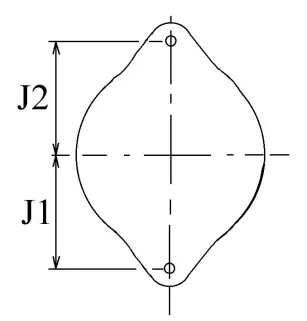

J Radius 107.50
J Radius 2 103.10
J Radius 3 106.50} J Radius 4 106.50
k B + M8
k position B + in min. 30
L D+ Size M5
n Rotation CW
Q Type taken W M6
R Total length MM 263.00
Information Catalogs
Pulley without
type Ir
Vacuum pump no
info Product BN
} {} replaces the following references:
110-565 Motorola 113176 HC-CARGO
87592254 NEW HOLLAND
8SC2023Z Motorola
8SC22282V Motorola USA
8SC22282VG Motorola USA
compatible with the following vehicles:
New Holland, agricultural machines
altering 14V 185AMP Motorola USA 110-565, HC-Cargo 113176, New Holland 87592254, Motorola 8SC2023Z
