Altering 14V 150AMP ISKRA 11.203.734, 11.203.825, 11.203.882, 11,204.174
  • Altering 14V 150AMP ISKRA 11.203.734, 11.203.825, 11.203.882, 11,204.174
  • Altering 14V 150AMP ISKRA 11.203.734, 11.203.825, 11.203.882, 11,204.174
  • Altering 14V 150AMP ISKRA 11.203.734, 11.203.825, 11.203.882, 11,204.174
  • Altering 14V 150AMP ISKRA 11.203.734, 11.203.825, 11.203.882, 11,204.174
  • Altering 14V 150AMP ISKRA 11.203.734, 11.203.825, 11.203.882, 11,204.174

Altering 14V 150AMP ISKRA 11.203.734, 11.203.825, 11.203.882, 11,204.174

114228

Alterner 14V 150AMP ISKRA 11.203.734, 11.203.825, 11.203.882, 11.204.174

€442.68
VAT included
€368.90 VAT excluded
LIVRAISON 24/48H
Quantity
EN STOCK - LIVRAISON 24/48H

  Delivery policy

(edit with the Customer Reassurance module)





  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

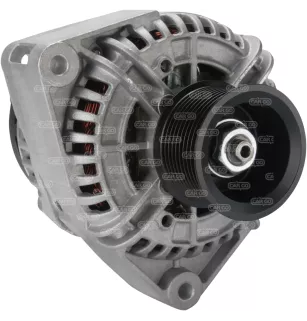

Alterner 14V 150AMP ISKRA 11.203.734, 11.203.825, 11.203.882, 11.204.174

  • Brand: Bosch
  • New altering
  • Guaranteed: 2 years
  • without instruction
  • Original quality


Characteristics:
Electric information
voltage 14
amp.     150

physical information
a dist. Pulley 83.50
B Arm width 56.00
D Diameter of the hole 10.00
e Angle paste tensioner 50
g Diameter Trou de la Pillet 10.00
H POULUL DIA.     64.00
i Rainures de la Poulie 10
J Radius 90.00
J Radius 2 90.00
K B + M8
k Position B + in min.     50
L D+ Size M5
n Rotation CW
R Total length mm 215.00

Information Catalogs
Poulie SP
type Ir
info Product BN
}} replaces the following references:
11.203.734 ISKRA
11.203.825 ISKRA
11.203.882 ISKRA
11.204.174 ISKRA
11.204.233 ISKRA
84141455 NEW HOLLAND
87573243 NEW HOLLAND
aan533 Aan5708 iskra
aan5745 iskra
aan5776 iskra
aan8145 iskra

Compatible with the following vehicles:
Agrifac, Box, industry
IH box, agricultural machinery
claas, agricultural machinery
Landini, agricultural machinery
McCormick, agricultural machines
New Holland, agricultural machines
New Holland, industry
Steyr, agricultural machine}

Product Details
114228
New
