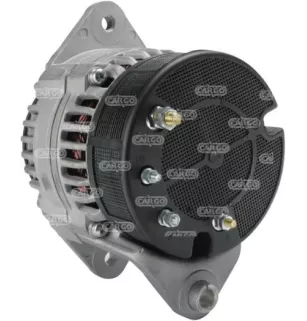

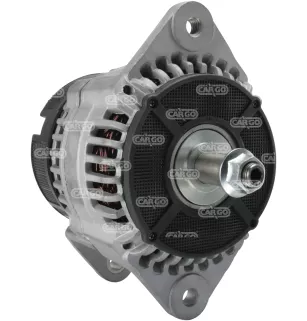

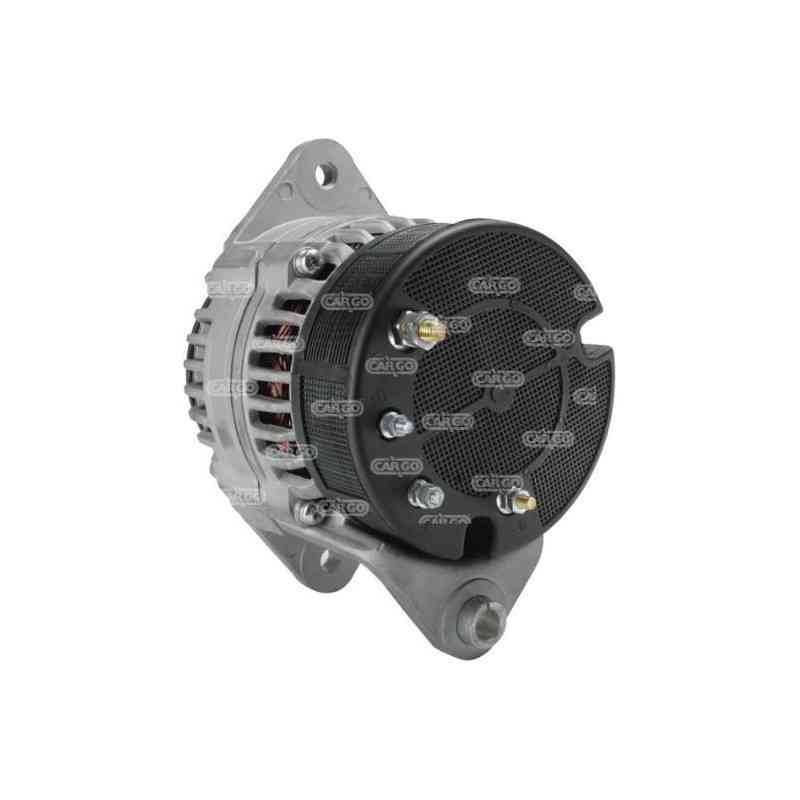

Altering 14V 150AMP ISKRA 11.203.124, 11.203.198, 11.203.363, 11.203.719

Alterner 14V 150AMP ISKRA 11.203.124, 11.203.198, 11.203.363, 11.203.719

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     150
terminal W

Physical information
B Arm width 13.80
C Dist. Between support 103.20
d Diameter du hole 13.20
e Angle paste tensioner 60
g Diameter Trou de la Patte 1/2 "UNC
J Radius 98.00
J Radius 2 98.00
K B + M8
k
L D+ Size M5
n Rotation CW
Q Type taken W M5
R Total length mm 230.00

Information Catalogs
Pulley Without
type Ir
info Product BN

replaces the following references:
11.203.124 ISKRA

11.203.363 ISKRA
11.203.719 ISKRA
11.203.870 ISKRA
11.204.159 ISKRA
11.204.239 ISKRA
8764566 Case} Aan5138 ISKRA
aan5155 iskra
aan5318 iskra
aan5502 iskra
aan5701 iskra
aan5771 iskra
aan8151 iskra}
Compatible with the following vehicles:
box, agricultural machines
cummins, industrial engine
John deere, industry
new Holland, agricultural machinery
}}
