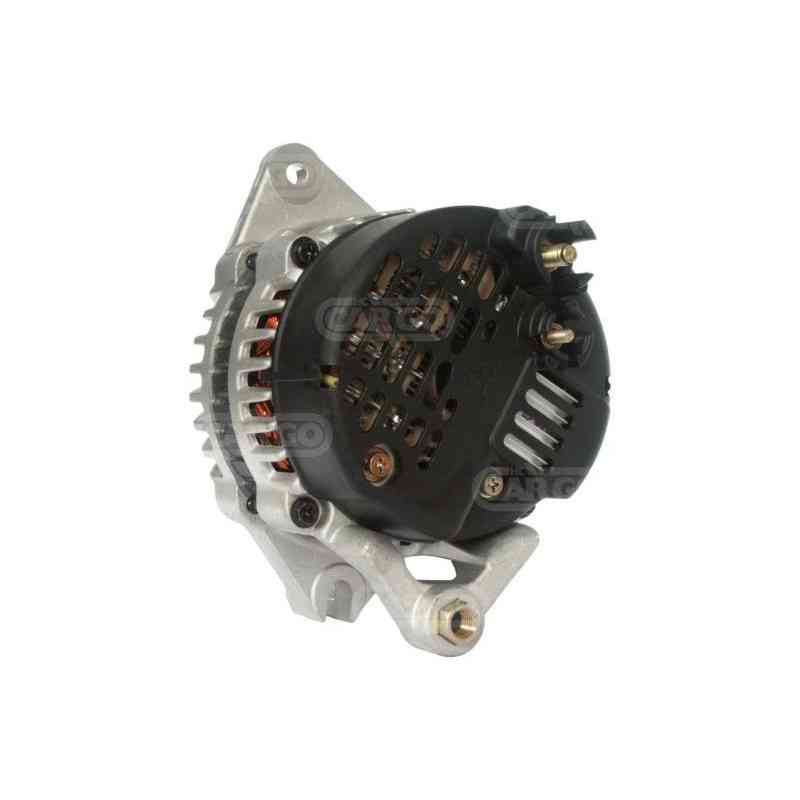

altering 14v 100amp iskra 11.203.042, Lucas 54022443, 54022527, Magneti Marelli 63321285, 63321346
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Characteristics:
Electric information
voltage 14
amp. 100
terminal W
physical information
a dist. Pulley 32.00
B Arm width 14.00
C Dist. Between support 83.80
D Diameter of the hole 8.20
e Angle paste tensioner 10
g Diameter hole of the paw m8
h Poulie dia. 66.90
I GRAINURES DE LA POULUL 6
J Radius 86.00
J Radius 2 86.00
K B + M6
k Position B + in min. 25
L D+ Size M5
n Rotation CW
o STAGE NO PL70
Q Type taken W M5
R Total length mm 189.00
Information Catalogs
Pulley Serpentine Pulley
Type REGULATOR IR
Vacuum pump No
Info Product BN
for Ford, New Holland
Replace the following references:
11.203.042 ISKRA
54022443 Lucas
54022527 Lucas
63321285 Magneti Marelli
63321346 Magneti Marelli
63321347
82003307 New Holland
82010242 New Holland
8210242 New Holland
CA1379ir HC-PARTS
F0NN10B376BB FORD
F0NN10B376CA FORD} F2NN10B376AA FORD
AAK5326 ISKRA
Compatible with the following vehicles:
Ford, Agricultural machines
New Holland, agricultural machines
}}
altering 14v 100amp iskra 11.203.042, Lucas 54022443, 54022527, Magneti Marelli 63321285, 63321346
