24 Volts 10A thermal-boomer

combination of a circuit breaker and a unipolar rocking switch.

Characteristics:
- Red light switch button - Marking 0 - L - Red LED lighting in position l.
- Connections by 6.35 mm sheets (separated in 2 x 2.8 mm).
- Use temperature: - 30 ° C to + 60 ° C.

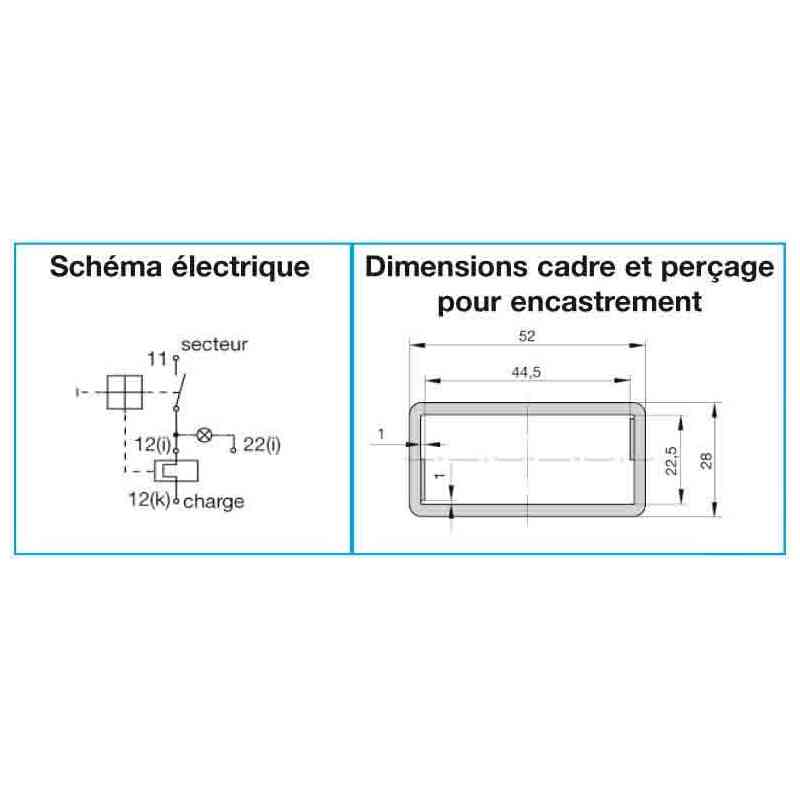

- To be built into panel or dashboard 44.5 x 22 mm - Thickness panel 1 to 4 mm.
- meets the circuit breaker for EN60934 equipment.

Application examples: electric motors, electric tools, power blocks, rectifiers, accumulator chargers.

Ampèrage: 10
Volts: 24
Catalog page: 12.5
