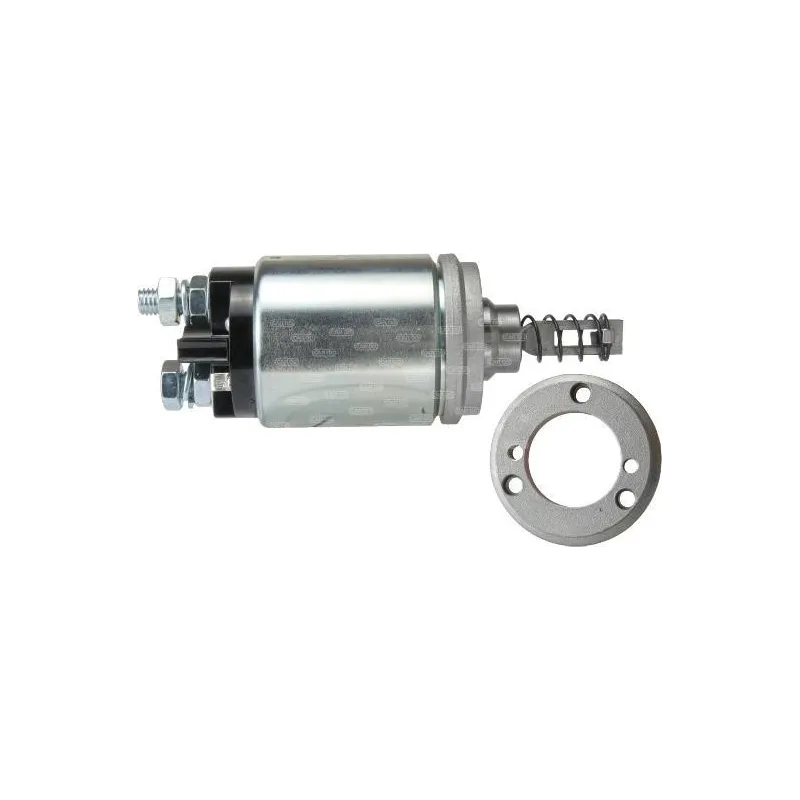

Bosch solenoid: 0001356003, 0001359001, 0001359002, 0001359003
  • Bosch solenoid: 0001356003, 0001359001, 0001359002, 0001359003
  • Bosch solenoid: 0001356003, 0001359001, 0001359002, 0001359003
  • Bosch solenoid: 0001356003, 0001359001, 0001359002, 0001359003

Bosch solenoid: 0001356003, 0001359001, 0001359002, 0001359003

130297

12V - Bosch -0001356003 -0001359001 - 0001359002 - 0001359003

€54.90
VAT included
€45.75 VAT excluded
LIVRAISON 24/48H
Quantity
EN STOCK - LIVRAISON 24/48H

  Delivery policy

(edit with the Customer Reassurance module)





  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

SPECIFICATIONS:

Electrical Specifications
Voltage     12
Physical Specifications
A     OD mm     61.00
B     Overall Length mm     177.75
Bracket
M     Coil Bolt     M10
D     OD/Cover mm     53.30
E     Cover ID mm     29.85
G     B+     M10
H     Height/B+     23.40
K    Kl. 50/mm     M4S
T     Kl. 30h/mm     M10
U     Width/kl. 30h     20.75
N     Coil bolt l.     16.55
L     Width/kl. 50     7.60
No. terminals     3

REPLACES THE FOLLOWING PART NUMBERS:

Mercedes benz: 000-152-22-11, 000-152-83-10.
Bosch: 0331400023, 0331401001, 0331401003, 0331401004, 0331401012, 0331401029, 0331401046, 0331401051, 0331401501, 0331401503, 0331401504, 0331402040, 0331402073, 0331402074, 0331402075.
Efel: 06780.
Khd: 1287303, 1287305, 1307295, 9930178.
Man: 17-70101-0708, 81-26212-0010, A7-70101-0708.
Massey Ferguson: 1805670M1.
Volvo: 241286, 241417, 6213560.
International harv.: 3132451R1, 3132762R1, 3132792R1.
Zm: 542, ZM-542, ZM542.
Waiglobal: 66-9102, 66-9102-1.
Renault: 7701002239, 7701010708.
Fiat: 9918356.
John Deere: AL19192.
Magneti marelli: AME0105.
Mario Ghibaudi: E3575.
Krauf: SSB0297.
Lucas: TOB452.

COMPATIBLE WITH THE FOLLOWING STARTERS:

Bosch: 0001356003, 0001359001, 0001359002, 0001359003, 0001359004, 0001359005, 0001359006, 0001359007, 0001359008, 0001359009, 0001359010, 0001359011, 0001359012, 0001359013, 0001359014, 0001359016, 0001359017, 0001359018, 0001359019, 0001359020, 0001359021, 0001359022, 0001359023, 0001359024, 0001359025, 0001359026, 0001359027, 0001359028, 0001359029, 0001359030, 0001359032, 0001359033, 0001359034, 0001359036, 0001359037, 0001359038, 0001359039, 0001359041, 0001359044, 0001359045, 0001359046, 0001359049, 0001359053, 0001359056, 0001359057, 0001359058, 0001359060, 0001359062, 0001359063, 0001359064, 0001359066, 0001359067, 0001359068, 0001359069, 0001359070, 0001359073, 0001359074, 0001359078, 0001359083, 0001359090, 0001359092, 0001359093, 0001359096, 0001359108, 0001359117, 0001359120, 0001367038, 0001612005, 9000143000, 9000143001, 9000143100, 9000143101.
Elmot: R11K.
Krauf: STB0718.

Product Details
130297
New

Data sheet

Tension
12 Volts

Specific References

UPC
400000054094
EAN13
4000000054023
