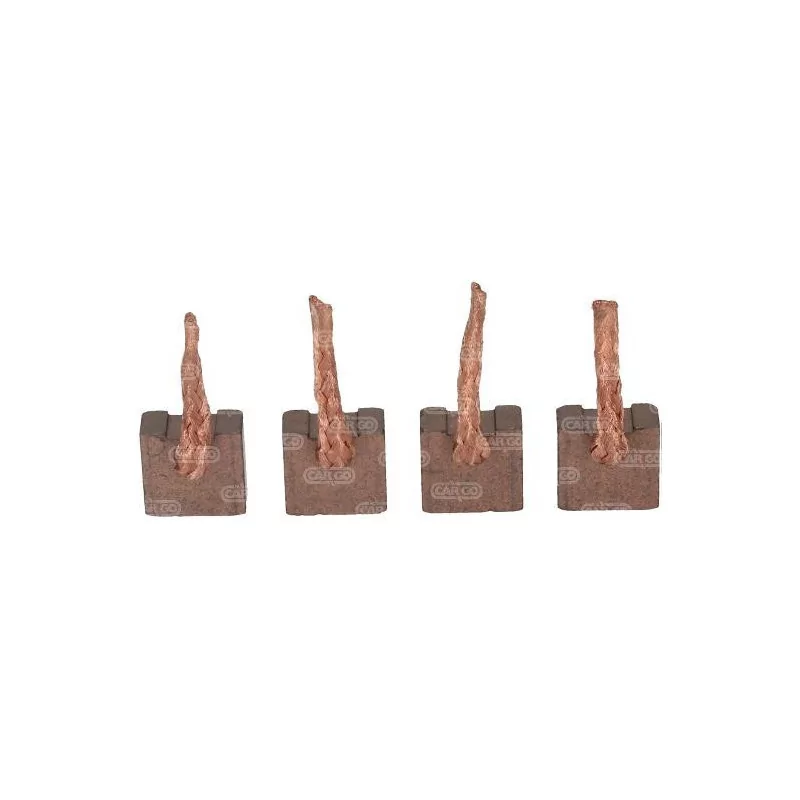

Brush Set, Ford 1024508, 1027928, 1059179, Delco 1105310

FEATURES:

Electrical Specifications
Voltage     12

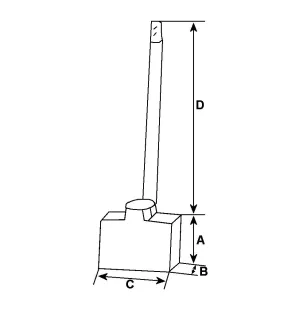

Physical Specifications
A     Length mm     18.20
B     Thickness mm     8.40
C     Height mm     19.00
D     Cable Length mm     34.00

More Information
Remarks     With busbar: HC-CARGO FX74-78 3.

REPLACES THE FOLLOWING PART NUMBERS:

Ika: 0.1530.1.
Motorherz: 140955CN.
Waiglobal: 68-223, 68-224.
Ford: F7RU11056AB.
Krauf: SHF0955.

COMPATIBLE WITH THE FOLLOWING STARTERS:

Ford: 1024508, 1027928, 1059179, 1073108, 1093471, 1105310, 1120215, 1140110, 1151641, 1214371, 1387062, 1450653, 1C2411000AA, 1C2Z11002AA, 1C3U11000AA, 1C3U11000AB, 1C3U11000AC, 1C3U11000AD, 1C3U11000AE, 1C3Z11002AA, 1S4U11000AA, 1S7U11000BA, 1S7U11000BB, 1S7U11000BC, 2C2411000AA, 2C3T11000AA, 2C3Z11002AA, 2S7T11000DA, 2S7T11000DB, 2S7T11000DC, 3C3U11000AB, 3C3U11000AC, 3C3Z11002AA, 4078768, 4509615, 5026497, 6C2T11000AA, 97BB11000BB, 97VB11000AA, 97VB11000AB, 98VB11000AA, 98VB11000AB, 98VB11000B1A, 98VB11000B3A, 98VB11000B3B, R2S7T11000DB, R98VB11000B1A, YC1U11000AB, YC1U11000AC.
Delco: 1105310.
Visteon: 20-100-01022.
