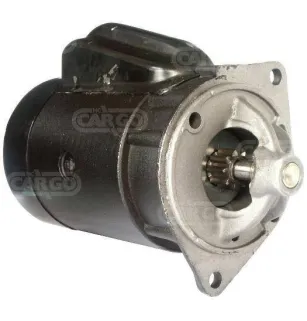

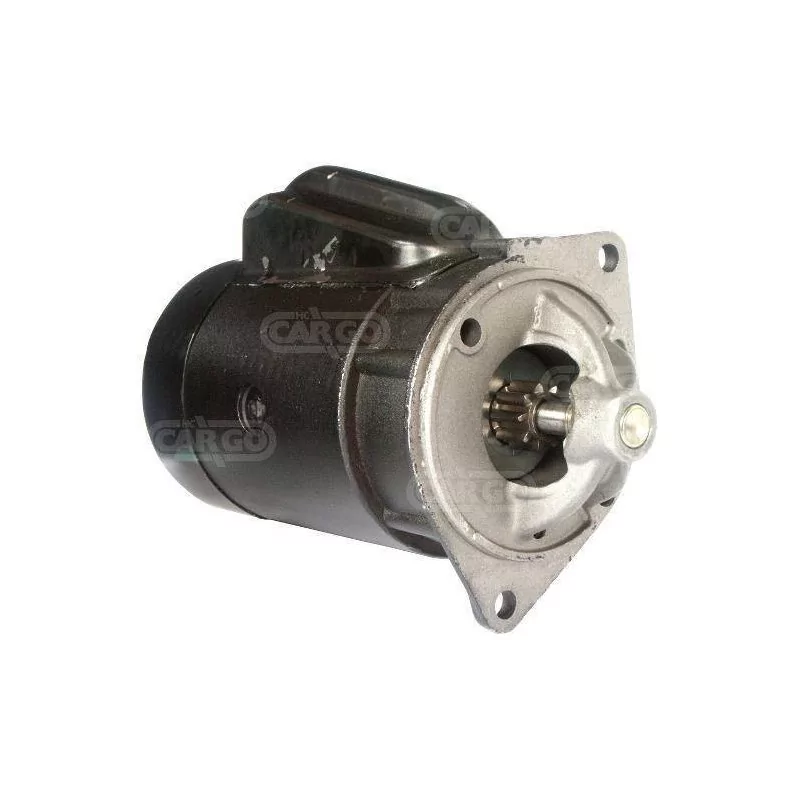

Starter 12V 1.3 Kw 09 teeth Ford C0DF11001D, C1VF11001D, C2OF11001A

Starter 12V 1.3 Kw 09 teeth Ford C0DF11001D, C1VF11001D, C2OF11001A

• BRAND: BOSCH
• New Starter
• warranty: 2 years
• Without Deposit
• Quality Origin

CHARACTERISTICS:

Electrical Information
Voltage 12
Kw 1.3

Physical Information
H No. of teeth 9
P Rotation CW
N Crown type Dd

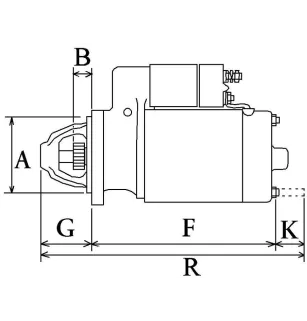

A Mounting flange 105.00
I B+ M8
No. of mounting holes 2 (0)
B Starter distance 5.00

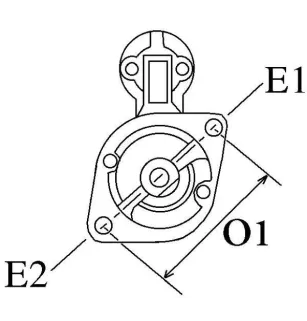

E Mounting hole 1 mm 10.20
E Mounting hole 2 mm 10.20
F Distance/rear 191.50
G Distance/front 48.70
M Mounting bracket No
O Distance mm 134.00
R Total length mm 250.00

Information Catalogues
Clutch type Dry
Starter type Steel
Starter type 4.5"
Product info Reman
Waterproof No
Oil Seals No

REPLACES THE FOLLOWING PART NUMBERS:
C0DF11001D
C1VF11001D
C2OF11001A
C2OF11001C
C2OF11001D
C2OF11001E
C2VF11001C
C2VY11002A
C3OZ11002C
C3VF11001A
C4OF11001B
C5TF11001A
C5TZ11001A
C5TZ11002A
C5TZ11002D
C7AF11001F
C7ZF11001A
C9ZF11001A
D0AF11001C
D0AF11131D
D2AF11001DA
D2OF11001AA
D4OZ11002A
D4TZ11002D
D5TF11001DA
D5TF11001AA
D6DZ11002B
D6OF11001AA
D6OZ11002A
D6TF11001A
D6TF11001DA
D6TZ11002D
E2AF11001DA
SA661
SA661A
SA712

FITS THE FOLLOWING VEHICLES:
Ford, US Light Vehicle
Mercury, US Light Vehicle
