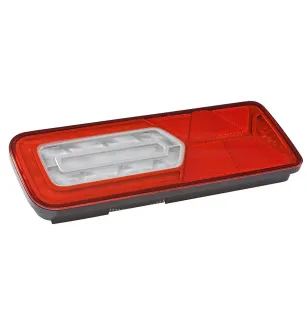

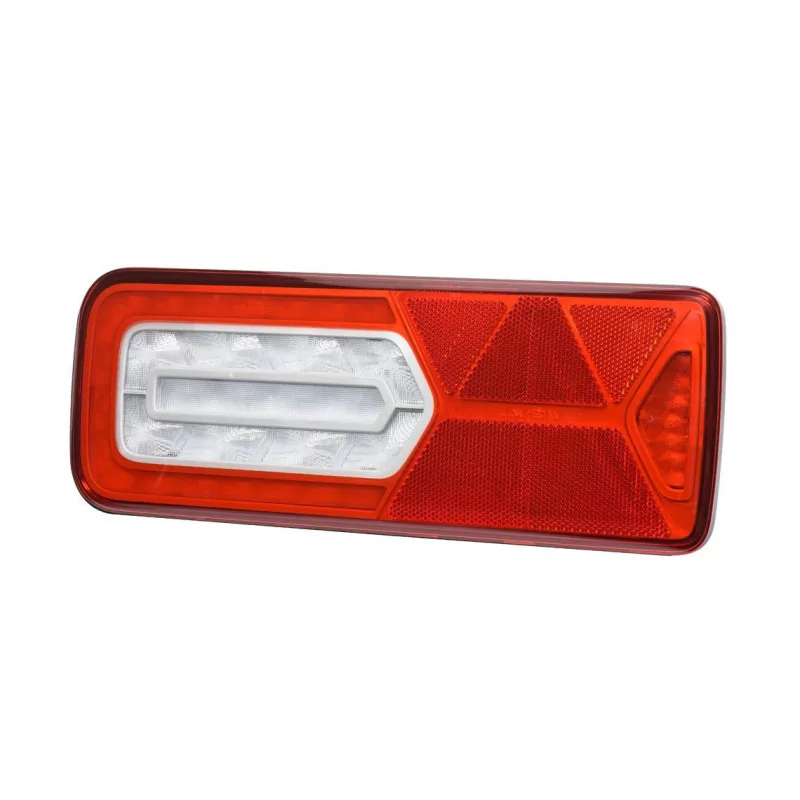

LC12 LED - Left LED tail light 24V, Additional connectors, triangle vignal 161000
CHARACTERISTICS:
Brand Vignal
Manufacturer Schmitz
Sector of activity Trailers and Semi-trailers
Product Type Complete light
Voltage 24V
Max Current Tapping No. 1 position: 0.5A (15W max), Tap No. 2 position: 0.5A (15W max), Tap No. 3 reverse: 1A (35W max), Tap No. 4 side indicator position: 0.5A (15W max)
LED source
Left side

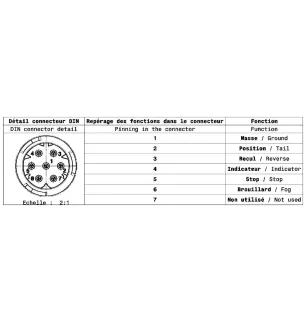

AMP 1.5 connector - 7 rear ways

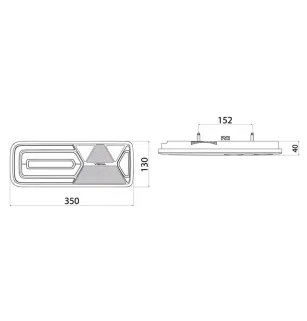

Fixing center distance 152 mm
Horizontal mounting direction
Polycarbonate lens material
Main functions Dynamic indicator, Stop, Position, Reversing, Fog, Triangular reflector
Specific functions Additional connectors
Rectangle shape
Length 350 mm
Width 130 mm
Depth 40 mm
CEM E2 10R-0516057
ADR ADR
ECE E2 16027
COMPATIBLE WITH THE FOLLOWING VEHICLES:
SCHMITZ
1302341
12/2016
SCHMITZ
1364736
12/2016
Specific References
Reference: 161010
Brand: Vignal
LC12 LED - Left LED tail light 24V, additional connectors, triangle vignal 161000
