heavy goods vehicle reversing radar and parkmatic®
trailers(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Simple and quick assembly on all vehicles and trailers Connection on the existing wiring Current technology: transmission of information to the monitor without electrical connection Composition of the system: A + B + C} A - 4 Ultrasonic high -tech sensors - IP67 supplied with support for wall mounting. The sensor support is removable for a built-in mounting in the bumper. Adjustment of 005} sensors from the power plant depending on the height to which they are fixed (4 positions). The wiring for connecting the sensors to the command is provided in the kit. B - Control box for data transmission - IP67 To be installed at the back of the vehicle or the trailer. Connecting a black wire to the mass/trailer and the red wire + to the 12 or 24 volts supply of the reversing fire, preferably in the junction case. Adjustment button ⓐ On the case: 4 positions to be selected according to the height of the sensors with respect to the floor (minimum height 40 cm). Detection distance from the obstacle: 0.22 to 2.50 meters. C - Monitor - Receiver To be installed on the dashboard or on the ceiling (in this case inversion of the button display on the monitor). A sound beep warns of the presence of an obstacle (adjustment of the sound level by a button: 3 positions: high - low - cut). Display of 4 LED-Bar columns on the instructor when detecting an obstacle. Each column corresponds to a sensor (the driver immediately knows how to locate the obstacle). The distance in meters and centimeters is also displayed by means of digital figures. Electrical connection: - Food supply by the red wire on a + 12/24 volts. - Black thread mass. Visual and sound detection of the non-functioning of one or more sensors in the instructor. Technical data - Food: 12/24 Volts. - Consumption: 200 mA. - Use temperature: -35 ° to +80 ° C. - Frequency: analog 40 kHz. Caution: all electrical connections must be made with thermosoudable sleeves (provided in the kit) for maximum reliability of the parkmatic. | |

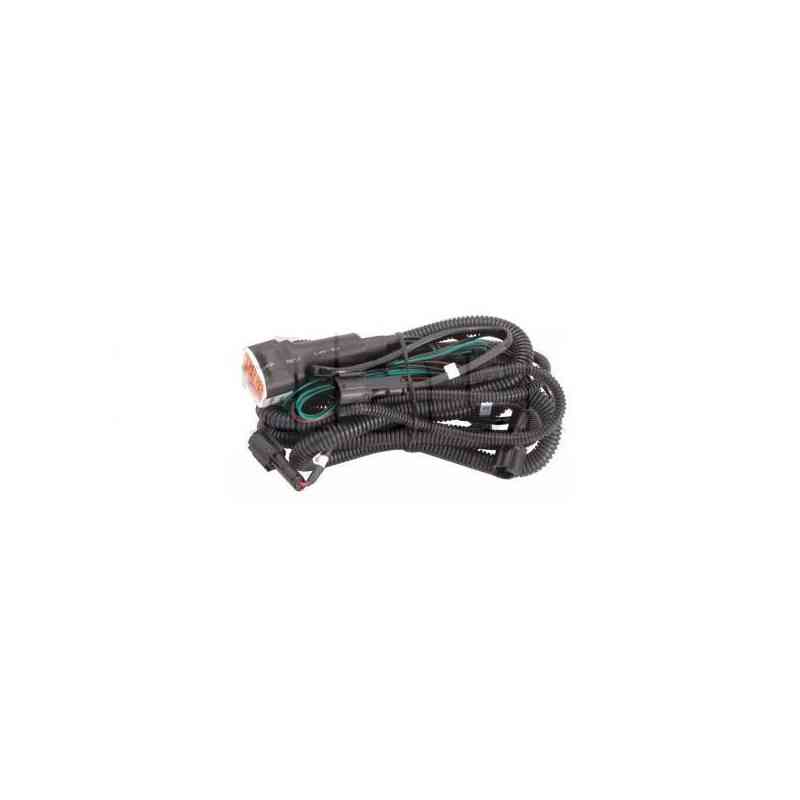

Characteristics: | Main bundle of the control box to sensors |
catalog page: | 17.4 |
