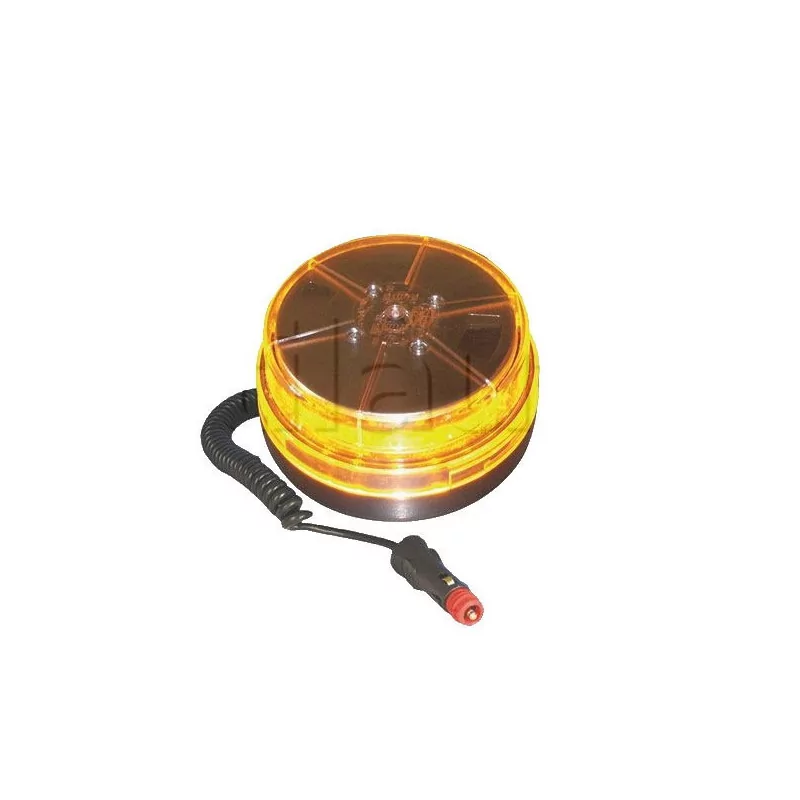

LED beacon 12/24 VOLTS Dasteri DSL 450M multi-effects orange

• 2-year warranty

CHARACTERISTICS:

12/24 VOLTS
H 76.9 x Ø 147.2 mm
Polycarbonate lens
Consumption: from 14 to 28 Watts depending on the vehicle
10 flash and rotating effect modes
R65 approved on 150 Flashes/minute

R65 - R10 approved
Wiring and connection

Positive red wire (+ )
Green Wire: Wire used to change the flash mode (7 possibilities) by connecting it for less than a second on the +
Blue Wire: ground

Synchronization
When there are several same modules on a vehicle, the green wires are connected together for synchronization.
All modules to be synchronized must first be set to the same flash mode before connecting them together.
When you need to change the flash type, each module must be modified separately and then you can connect the green wires.
