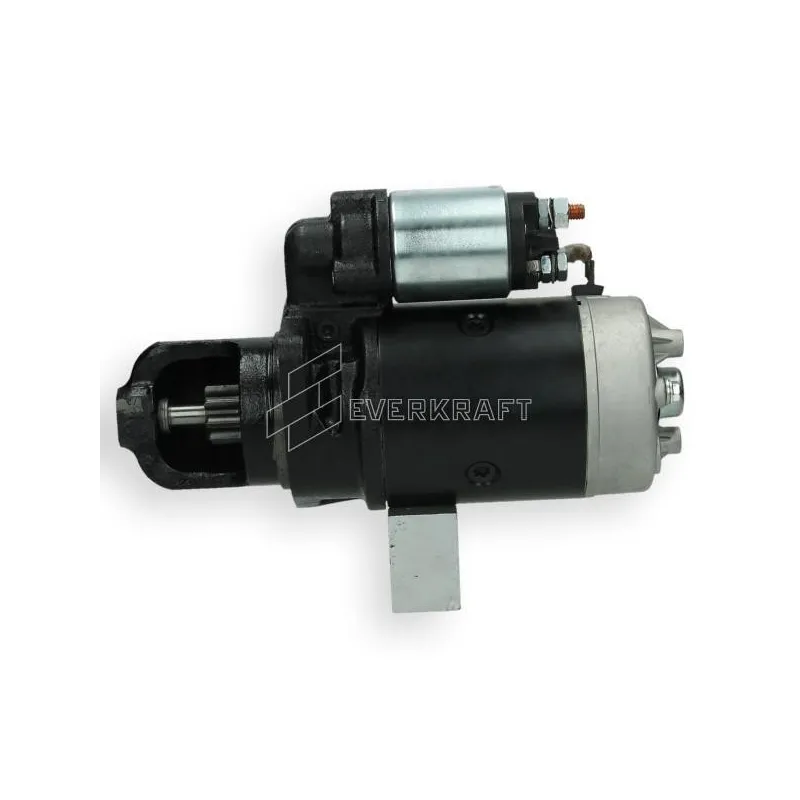

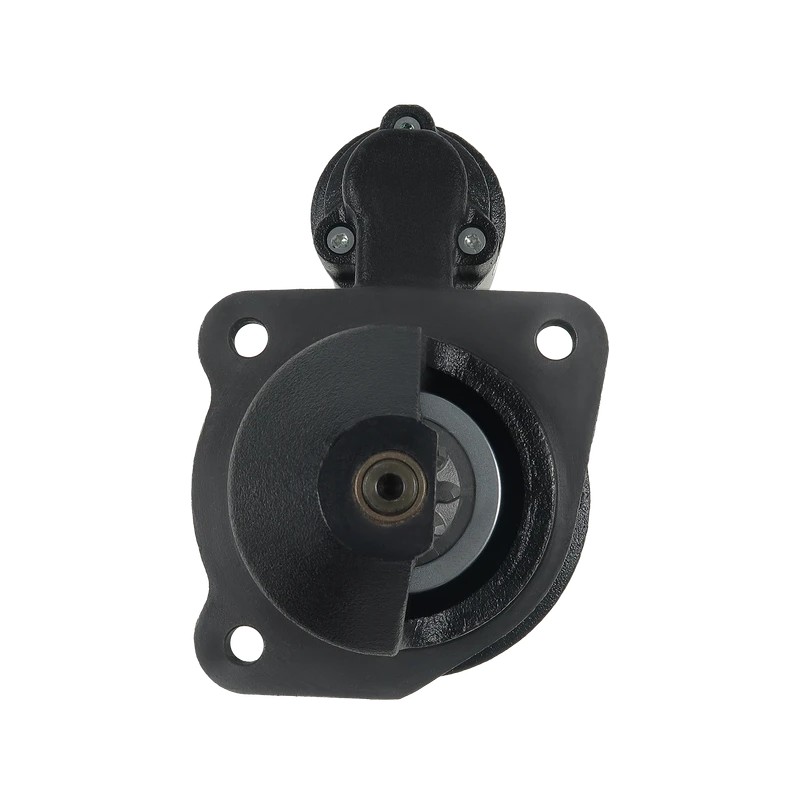

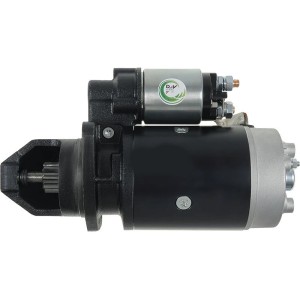

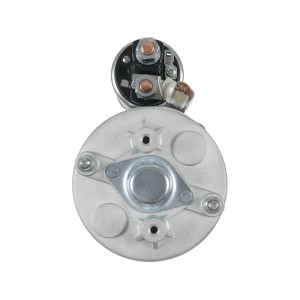

Tractor starter IH 1046, 1056, 1255

540.001.093.010
Everkraft

IH 1046, 1056, 1246, 1255, 1455, 523, 624, 645, 654, 724, 734, 743, 744, 745, 824, 845, 856, 946, 1055, 321, 431, 531, 553, 554, 644

€162.29
VAT included
€135.24 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)





  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

CHARACTERISTICS:

Voltage [V]: 12 V
Fixing holes: 3
Number of teeth: 9
Nominal power [kW]: 3.1 KW
Application: PL and Industry
Rotation: CW
Insulated: No
Tooth diameter: 34.8 mm
Reduction: No
Nose length: 90 mm
Socket diameter: 89 mm
Body diameter: 114 mm
Fixing center distance: 127 mm
Ground terminal: No
Weight: 14.1 Kg

FITS THE FOLLOWING VEHICLES:

IH 1046, 1056, 1246, 1255, 1455, 523, 624, 645, 654, 724, 734, 743, 744, 745, 824, 845, 856, 946, 1055, 321, 431, 531, 553, 554, 644

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0001354073, 0001362300, 0001367001, 0986011130, 0001354080, 0001359014, 0001359074, 0001362063, 0001369016, 0986011130090, 0986017280, 0986017280090.
Magneti marelli: 063227604010, MSN206.
Iskra: 11.130.704, 11.130.889, 11130889, 11132153, AZE4238, AZJ3242, AZJ3314, IS0889, IS1383.
Efel: 15145.
Delco: 19024257, DRS1130, DRS7280.
Prestolite: 20513058, PBNS3058.
Messmer: 220176, 220176R.
International harv.: 3055414R92, 3055557R92, 3218677R91, 3228193R91.
Box: 3218677R91, 3228193EX, 3228193R91, 3229193EX, 3229193R91.
Valeo: 436077.
Renault: 6005012976.
Magneton: 9142805.
John Deere: AL11503, AL110504, RE500733, RE60384.
HC-Parts: CS503.
Lucas: LRS00570, LRS01985, LRS01988, LRS570.
Krauf: STB0503, STG0503.
Motorherz: STG0503WA.

Product Details
540.001.093.010
New

Specific References

UPC
400000005935
EAN13
4000000005889
