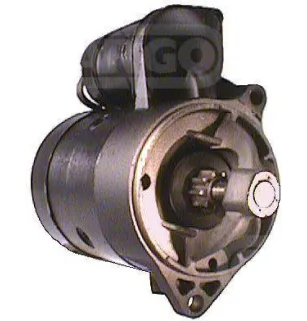

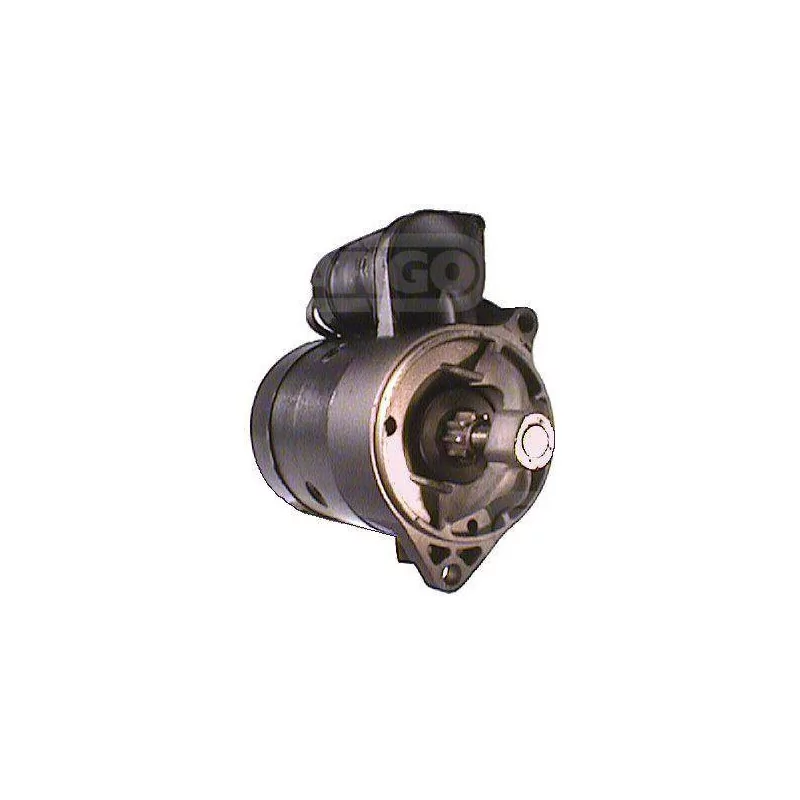

12 Volt Starter, Ford D2AF11001ER, D40F11001AA, c8vf11001a

FEATURES:

Electrical Specifications
Voltage     12

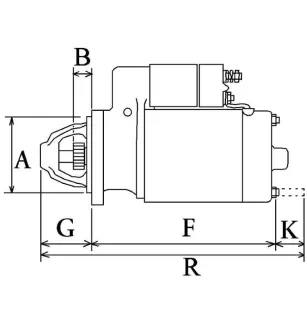

Physical Specifications
A     Mounting flange     105.00
B     Starter distance     10.50
F     Rear distance     186.40
G     Forward distance     54.40
H     No. of teeth     9
I     B+     M10
J     Terminal 15a     M4
N     Crown type    Dd
O     Distance mm     132.50
P     Rotation     Cr
R     Overall length mm     249.50

More information
No. of fixing holes     2 (1)
Starter type     Steel
Starter type     4.5"
Oil sealed     No
Waterproof     No

REPLACES THE FOLLOWING PART NUMBERS:

Waiglobal: 2-1678-FD.
Ford: D2AF11001ER, D40F11001AA, c8vf11001a, c8vf11002a, c8vy11002a, d0vf11000a, d0vf11001a, d2af11001ea, d2vf11001aa, d3tf11001da, d40f11001aa, d4af11001aa, d4az11002a, d5tf11001c
