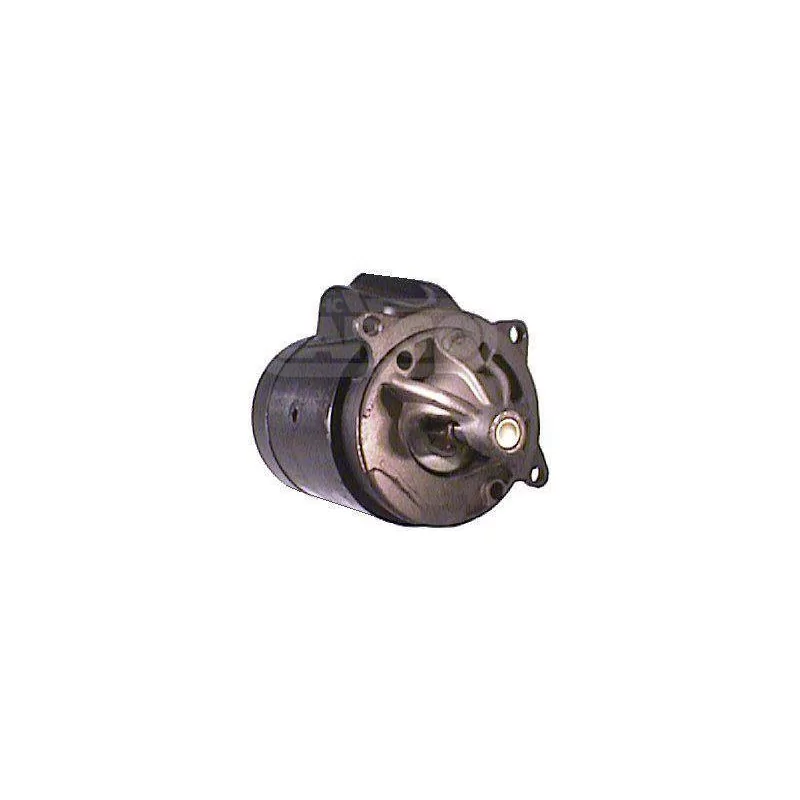

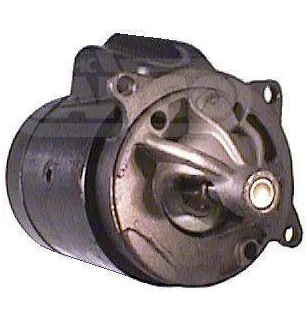

12 Volt Starter, Ford C0DF11001A, C1AF11001C, C2VY11002A

FEATURES:

Electrical Specifications
Voltage     12

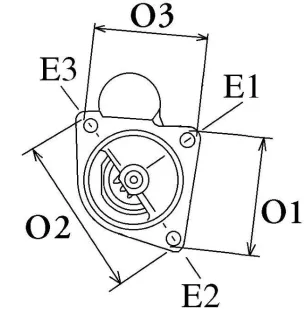

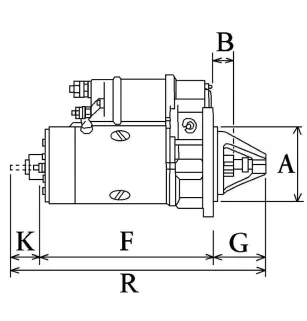

Physical Specifications
A     Mounting flange     103.70
B     Recoil distance     15.50
F     Rear distance     182.00
G     Forward distance     58.00
H     No. of teeth     9
I     B+     5/16" UNC
N     Crown type     Dd
O     Rear distance mm   80.20
O     Distance 2     134.00
O     Distance 3     91.50
P     Rotation     Cr
R     Total length mm     248.00

More information
No. of fixing holes     3 (0)
Starter type     Steel
Starter type     4.5"
Oil sealed     No
Waterproof     No

REPLACES THE FOLLOWING PART NUMBERS:

Waiglobal: 2-1674-FD.
Wps: 3131N, 3131R.
Ford: C0DF11001A, C1AF11001C, C2VY11002A, C6AZ11002A, C6VF11002A, C6VY11002B, C7OF11001A, C7TF11001B, C8AZ11002A, D0OF11001A, D2OF11001AA, D2OF11001BA, D2TF11001BA, D6DZ11002B, D6TF11001EA.
