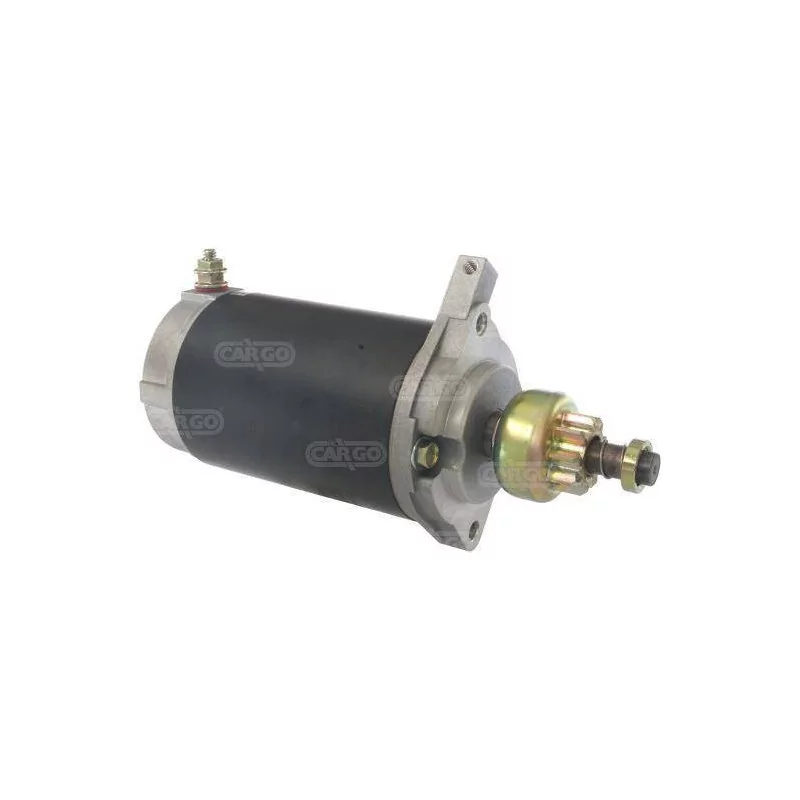

12 Volt Starter, Delco 1113510, 1113518, Mercury marine 50-29105

FEATURES:

Electrical Specifications
Voltage     12
KW     0.8

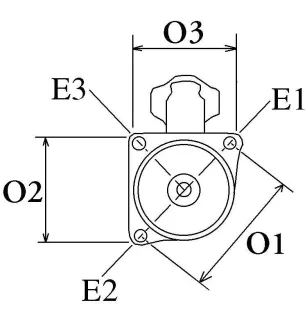

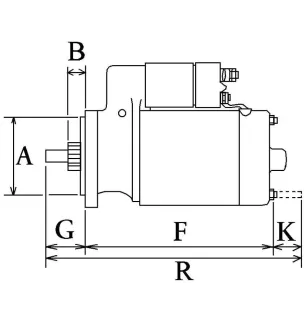

Physical Specifications
A     Mounting flange     54.00
B     Recoil distance     0.50
F     Rear distance     141.00
G     Forward distance     69.00
H     No. of teeth     9
I     B+     1/4" UNC
N     Crown type     Dd
O     Distance mm     82.00
P     Rotation     Counterclockwise
R     Total length mm     210.00

More information
No. of fixing holes     2 (2)
Launcher type     Steel
Oil sealed     No
Watertight     No

REPLACES THE FOLLOWING PART NUMBERS:

United technologies: 0262640MO30SM, 0996140MO30SM, 0996340MO30SM, 4840540MO30SM, M055014A, M055017A, M0551014A, M0551017, MO551014A, MO551017A, SM09961, SMH12B31.
Delco: 1113510, 1113518, 1113552, 1113553, 1113569, 1113577, RS41001.
Waiglobal: 2-2075-UT, 2-2075-UT-1, 2-2157.
Mercury marine: 50-29105, 50-30829, 50-30842, 50-31976, 50-32403, 50-32411, 50-37274, 50-37345, 50-37345A1, 50-38890, 50-38890A1, 50-45822, 50-48643, 50-55601, 50-55601A2, 50-55801A, 50-67341, A2-5942, A5-029105.
MERCURY: 50-29105, 50-30829, 50-32403, 50-32411, 50-37345, 50-37345A1, 50-38890, 50-38890A1, 50-55601, 50-55601A2, 50-55801A, A2-5942, A5-029105.
Wps: 5400N, 5733N.
HC-Parts: US821.
