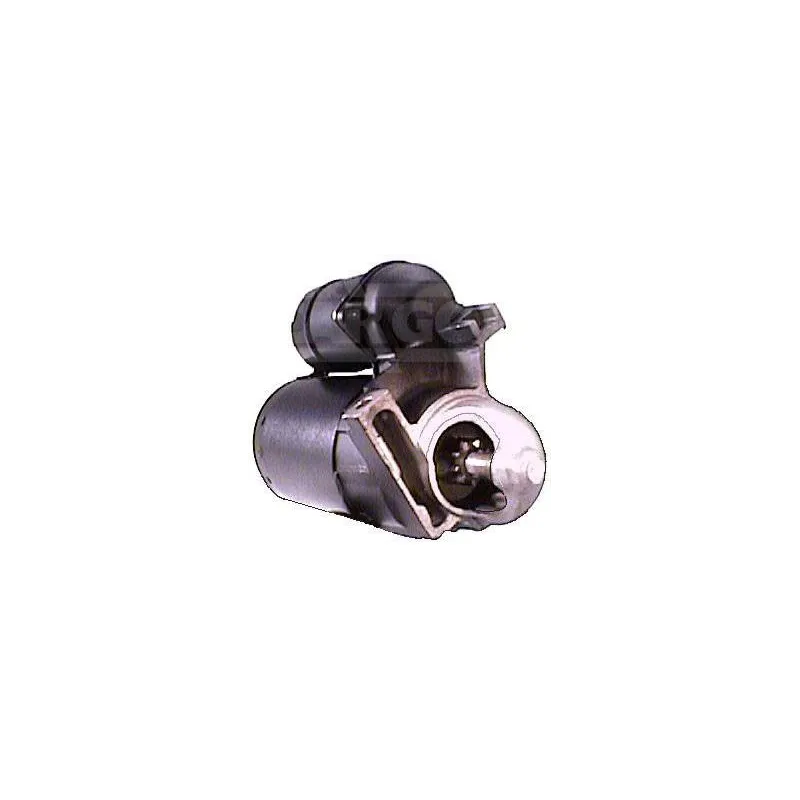

12 Volt Starter, Delco 1109521, 1109524, Lucas LRS01781

FEATURES:

Electrical Specifications
Voltage     12

Physical Specifications
A     Mounting flange     68.10
B     Throw distance     16.00
F     Throw/back     208.00
G     Throw/forward     60.00
H     No. of teeth     9
I     B+     M10
J     Terminal 15a     8-32 UNC
N     Crown type    Dd
O     Distance mm     83.50
P     Rotation     Cr
R     Total length mm     286.00

More information
No. of fixing holes     2 (0)
Launcher type     Steel
Remarks     Replaces: 8MT.
Oil Sealed     No
Waterproof     No

REPLACES THE FOLLOWING PART NUMBERS:

Delco: 1109521, 1109524, 1109527, 1109534, DRZ5121.
Waiglobal: 2-1500-DR, 2-1508-DR, 50-116, 50-138.
Lucas: LRS01781.
Krauf: STD0830.
HC-Parts: US830.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

CHEVROLET CAMARO 5.0 (1970-1981)
CHEVROLET CAMARO (FP_) 5.0 (1981-1992)
CHEVROLET CAPRICE 5.0 (1970-1983)
CHEVROLET MALIBU 3.7 (1980-1983)
CHEVROLET MALIBU 5.0 (1980-1983)
