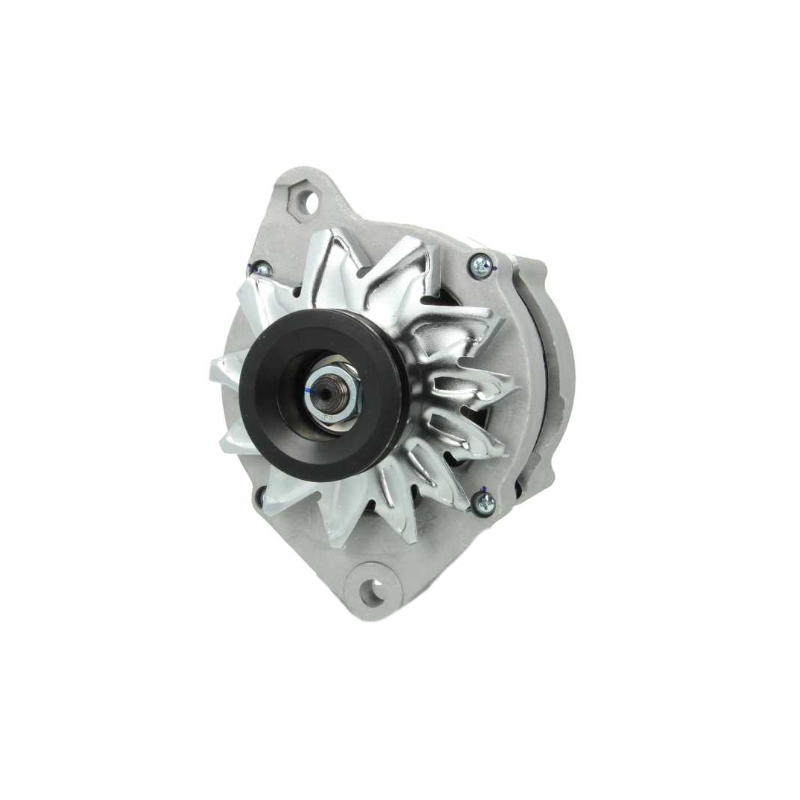

Alternator 28V 55Amp Bosch 0120469549, 0120469634, 0120469890, KHD 04757192, Iveco 107193

Alternator 28V 55Amp Bosch 0120469549, 0120469634, 0120469890, KHD 04757192, Iveco 107193

• New Alternator
• Warranty: 2 years
• Without Deposit
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 28
Amp. 55
Terminal W

Physical Information
A Pulley Dist. 50.00
B Arm Width 17.45
C Dist. between bracket 63.00
D Hole diameter 12.75
E Tensioner paste angle 57
G Tab hole diameter 11.00
H Pulley dia. 70.00
I Pulley grooves 2
J Radius 93.50
J Radius 2 87.75
K B + M8
K Position B+ in min. 33
L D+ Size M4
N Rotation CW
Q Plug type W M5
R Total length mm 188.00

Information Catalogues
Pulley Double pulley
Regulator type Ir
Vacuum pump No
Product info Bn
For Fiat-Allis, Iveco


REPLACES THE FOLLOWING PART NUMBERS:
0120469549 Bosch
0120469634 Bosch
0120469890 Bosch
04757192 KHD
107193 Iveco
11.201.555 Iskra
1516558R DAF
2541423 Valeo
2541423 Motorola
2541636 Valeo
2541638 Valeo
2541639 Valeo
42498167 Iveco
4738026 Fiat
4747193 Fiat
4757192 KHD
4757192 Fiat
4757193 Iveco
4757193 Fiat
4757194 Fiat
4757194 Iveco
4844266 Fiat
860576 Butec
98418362 Iveco
98419031 Iveco
98424450 Iveco
99461190 Iveco
A14N186 Valeo
A14N187 Valeo
A14N188 Valeo
A14N189 Valeo
CA326IR HC-PARTS
AAK4507 Iskra

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Allis Chalmers, Agricultural Machinery
BENFRA, Industrial
Fiat-Allis, Agricultural Machinery
Iveco, EU Trucks
Iveco, Marine
Iveco, Industrial Engine
Laverda, Agricultural Machinery
