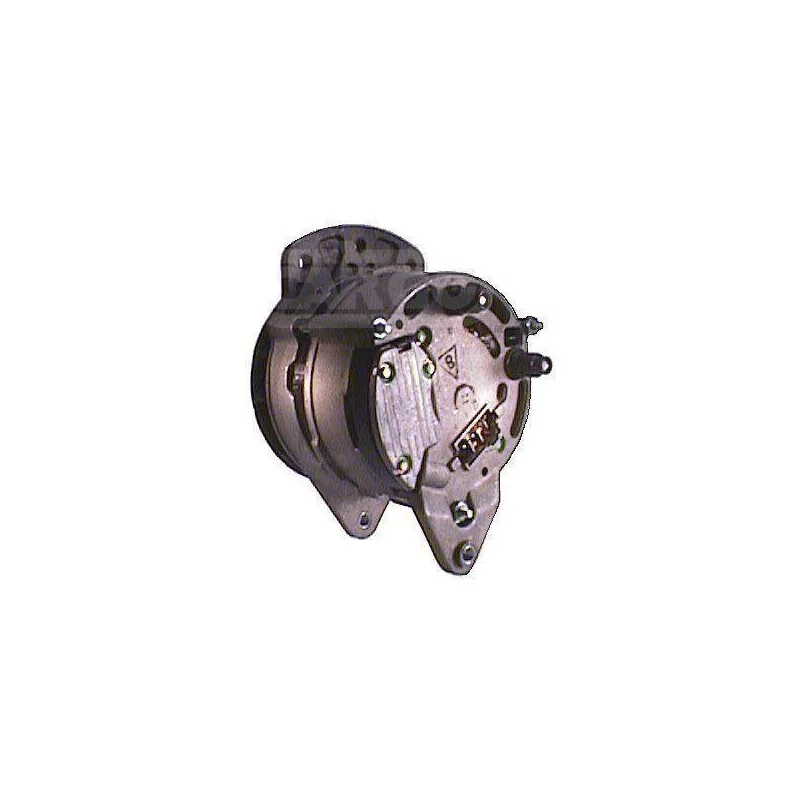

Alternator 28V 35Amp lucas NAB501, NAB901

Alternator 28V 35Amp lucas NAB501, NAB901

• BRAND: BOSCH
• New Alternator
• Warranty: 2 years
• Without Deposit
• Original Quality

CHARACTERISTICS:
Electrical Information
Voltage 28
Amp. 35
Terminal W

Physical Information

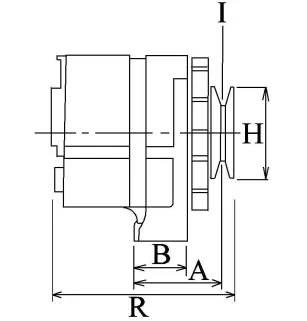

A Pulley Dist. 41.80
B Arm Width 11.00
C Pulley Dist. between support 84.00

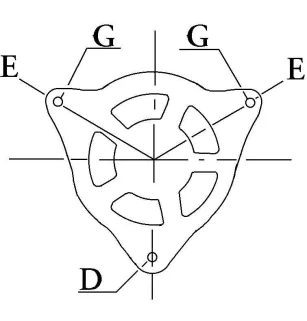

D Hole diameter 8.20
E Tensioner paste angle 55
E Tensioner paste angle 3 5
E Adjustable support belt/ pos. 2 60
G Leg hole diameter 8.30
G Holes for Adjustable support belt 2 8.30
G Leg hole diameter 3 8.30
H Pulley dia. 71.50
I Pulley grooves 1

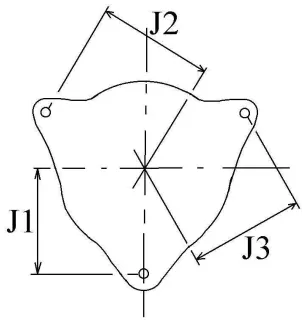

J Radius 87.50
J Radius 2 82.80
J Radius 3 82.00
J Radius 4 82.80
K B + M6
K Position B+ in min. 10

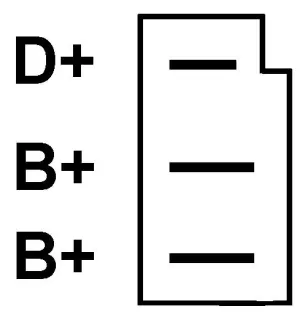

L D+ Plug size
N Rotation CW
O Plug not PL22
Q Plug type W M5
R Total length mm 165.50
I
nformation Catalogs
Pulley Pulley
Regulator type Ir
Product info Bn

REPLACES THE FOLLOWING REFERENCES:
NAB501 lucas
NAB901 lucas

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Universal, MISCELLANEOUS
