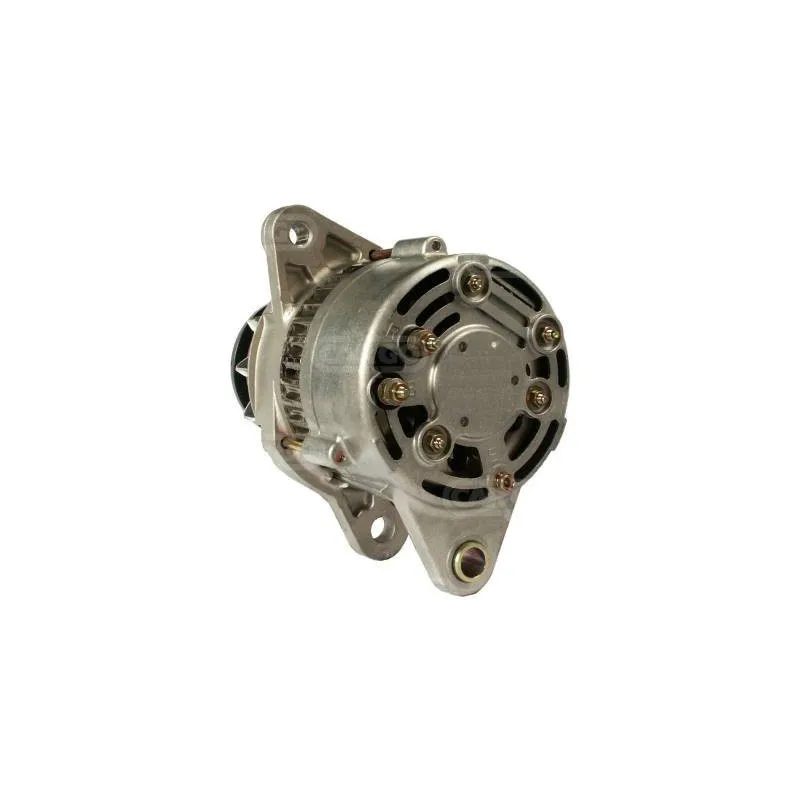

Alternator 28 Volts 40 A, Nissan 23099-C6802, Komatsu 600-821-5580
  • Alternator 28 Volts 40 A, Nissan 23099-C6802, Komatsu 600-821-5580
  • Alternator 28 Volts 40 A, Nissan 23099-C6802, Komatsu 600-821-5580
  • Alternator 28 Volts 40 A, Nissan 23099-C6802, Komatsu 600-821-5580
  • Alternator 28 Volts 40 A, Nissan 23099-C6802, Komatsu 600-821-5580

Alternator 28 Volts 40 A, Nissan 23099-C6802, Komatsu 600-821-5580

110657

28 Volts - 40 Amp - Komatsu Forklift - Delco: DRA3124 - Lucas: LRA02424

€136.90
VAT included
€114.08 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)





  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

SPECIFICATIONS:

Electrical Specifications

Voltage     28
Amp     40

Physical Specifications

D     Hole Diameter     14.20
G     Lug Hole Diameter     M12
B     Arm Width     12.25
E     Tensioner Angle     5
C     Bracket Distance     68.80
H     Pulley Dia.     98.00
A     Dist. pulley     62.75
i     Pulley grooves     2
j     Radius     83.00
j     Radius 2     84.60
k     Position B +     M5
n     Rotation     Cr
o     Regulator connector     PL_NA
R     Total length mm     221.00

More information

Fan     Ef
Pulley     Double pulley

REPLACES THE NEXT REFERENCES:

Nikko: 0-33000-2860, 0-33000-3070, 0-33000-5280, 0-33000-5860, 0-33000-5870, 0-33000-6511, 0330005840, 0330005850, 0330005880, 0330006580.
Cargo: 110562, 110657.
Nissan: 23099-C6802, 23099-C6804, 23099-C6805, 23099-C6806, 23099-C6808, 23099-C8600, 23099-R8111, 23099C6802, 23099C6804, 23099C6805, 23099C6806, 23099C6808, , 23099R8111.
Valeo: 437812.
Komatsu: 600-821-5580, 600-821-6110, 600-821-6120, 600-821-6130, 600-821-6140, 600-821-6160, 6008216110, 6008216130, 6008216140, 6008216150, 6008216190, PC220, PC400, RKD25A04.
Magneti marelli: 944390511050.
Krauf: ALH5403, ALK0790.
Motorherz: ALK0790WA, ALK9790WA.
Delco: DRA3124, DRA3124N.
HC-Parts: JA187IR, JA789IR, JA790IR.
Hitachi: LR225-403, LR225-60, LR225-65, LR225-65B, LR225-65C, LR225-65E, LR225-65P, LR225-67, LR225-67B, LR225-67P, LR225403, , LR22560, LR22560C, LR22565, LR22565B, LR22565E, LR22565P, LR22567, LR22567B.
Lucas: LRA02424.

Komatsu Forklift

FITS THE FOLLOWING VEHICLES:

NISSAN PATROL Hardtop (K160) 3.2 D (K160) (1979-1988)
NISSAN PATROL Hardtop (K160) 3.2 TD (K160) (1983-1988)
NISSAN PATROL Station Wagon (W160) 3.2 D (W160) (1979-1988)
NISSAN PATROL Station Wagon (W160) 3.2 TD (W160) (1983-1988)
NISSAN PATROL Station Wagon (W260) 3.2 D (1988-1990)

Product Details
110657
New

Data sheet

Tension
28 Volts
Ampérage
40A

Specific References

UPC
400000042220
EAN13
4000000042167
