FEATURES:
Electrical Specifications
Voltage 28
Amp 35
Terminal W
Physical Specifications

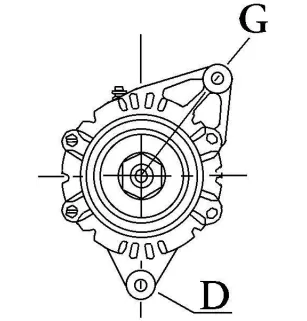

D Hole Diameter 10.20
G Lug Hole Diameter 8.24

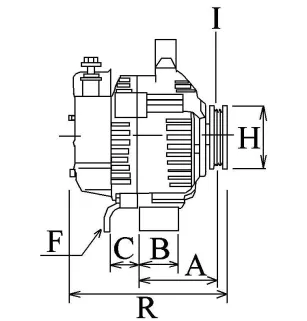

B Arm Width 27.25
E Tensioner Angle 5
C Bracket Distance 66.00
H Pulley Dia. 94.00
A Dist. pulley 51.70
i Pulley grooves 1

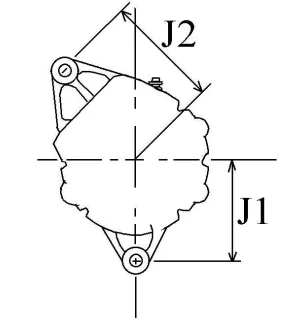

j Radius 85.00
j Radius 2 90.70
k Position B + M6
n Rotation Cr
o Regulator connector PL_NA
R Total length mm 174.00
Manufactured Magneton
More information
Fan Ef
Pulley Pulley
Regulator type Ir
REPLACES THE FOLLOWING PART NUMBERS:
443113516836 MAGNETON (PAL/SKODA)
443113516842 MAGNETON (PAL/SKODA)
443113516846 MAGNETON (PAL/SKODA)
9515836 MAGNETON
COMPATIBLE WITH THE FOLLOWING ALTERNATORS:
PORSCHE 911 (993) 3.8 Carrera 4 (1995-1997)
