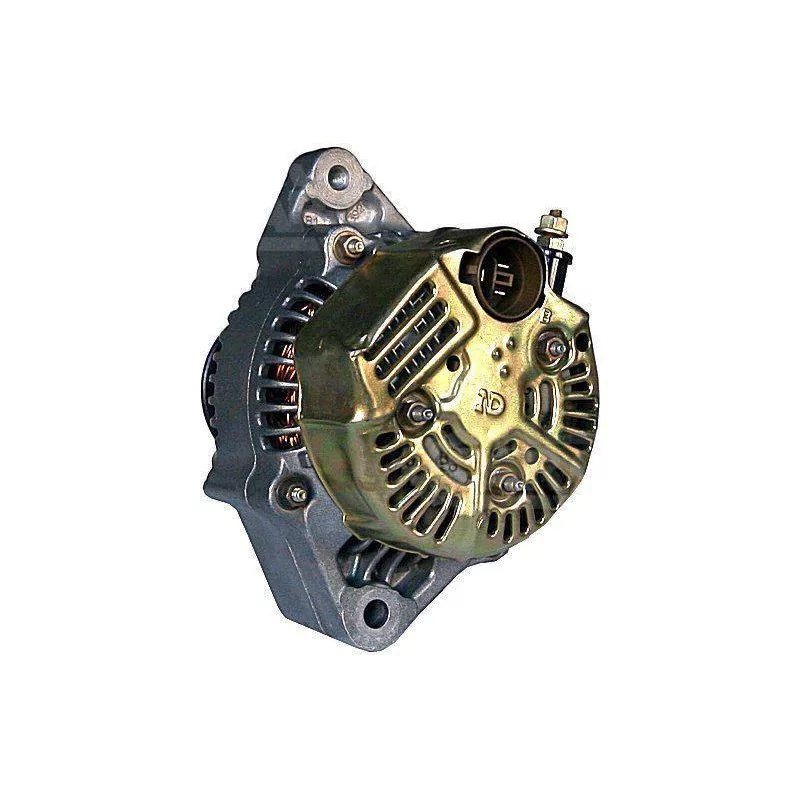

Alternator 28 Volts 30 A, Delco DRA0633, TOYOTA LAND CRUISER
  • Alternator 28 Volts 30 A, Delco DRA0633, TOYOTA LAND CRUISER
  • Alternator 28 Volts 30 A, Delco DRA0633, TOYOTA LAND CRUISER
  • Alternator 28 Volts 30 A, Delco DRA0633, TOYOTA LAND CRUISER
  • Alternator 28 Volts 30 A, Delco DRA0633, TOYOTA LAND CRUISER

Alternator 28 Volts 30 A, Delco DRA0633, TOYOTA LAND CRUISER

111782

28 Volts - 30 Amp - TOYOTA LAND CRUISER

€381.00
VAT included
€317.50 VAT excluded
LIVRAISON 24/48H
Quantity
EN STOCK - LIVRAISON 24/48H

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

SPECIFICATIONS:

Electrical Specifications
Voltage     28
Amp     30

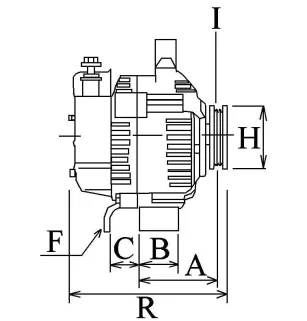

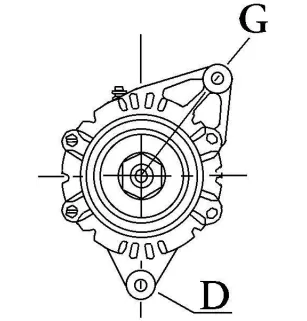

Physical Specifications
D     Hole Diameter     10.30
G     Lug Hole Diameter     M8
B     Arm Width     58.00
E     Tensioner Angle     5
H     Pulley Dia.     75.00
A     Dist. pulley     92.00
i     Pulley grooves     2

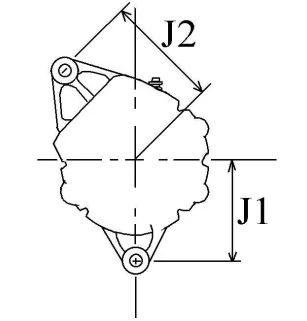

j     Radius     80.00
j     Radius 2     85.75
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL12
R     Total length mm     163.50

More information
Fan     If
Pulley     Double pulley
Regulator type     Ir
Vacuum pump     Without

REPLACES THE FOLLOWING PART NUMBERS:

Delco: DRA0633.

COMPATIBLE WITH THE FOLLOWING VEHICLES:

TOYOTA LAND CRUISER (PZJ7_, KZJ7_, HZJ7_, BJ7_, LJ7_, RJ7_) 4.2 TD (HZJ7__V) (1990-...)
TOYOTA LAND CRUISER (_J8_) 4.2 TD (HDJ80) (1990-1997)
TOYOTA LAND CRUISER 80 (_J8_) 4.2 TD (HDJ80) (1990-1997)

Product Details
111782
New

Data sheet

Tension
28 Volts
Ampérage
30A

Specific References

UPC
400000052656
EAN13
4000000052593
