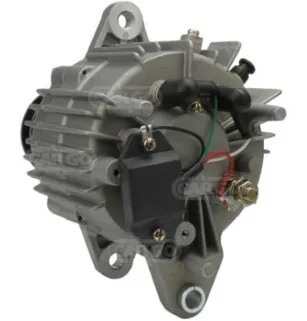

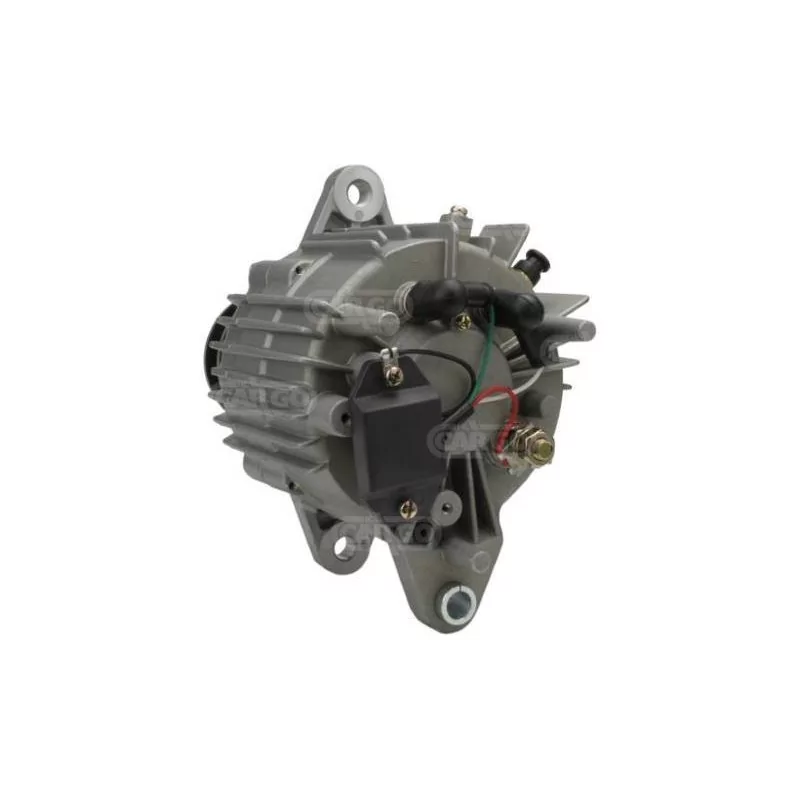

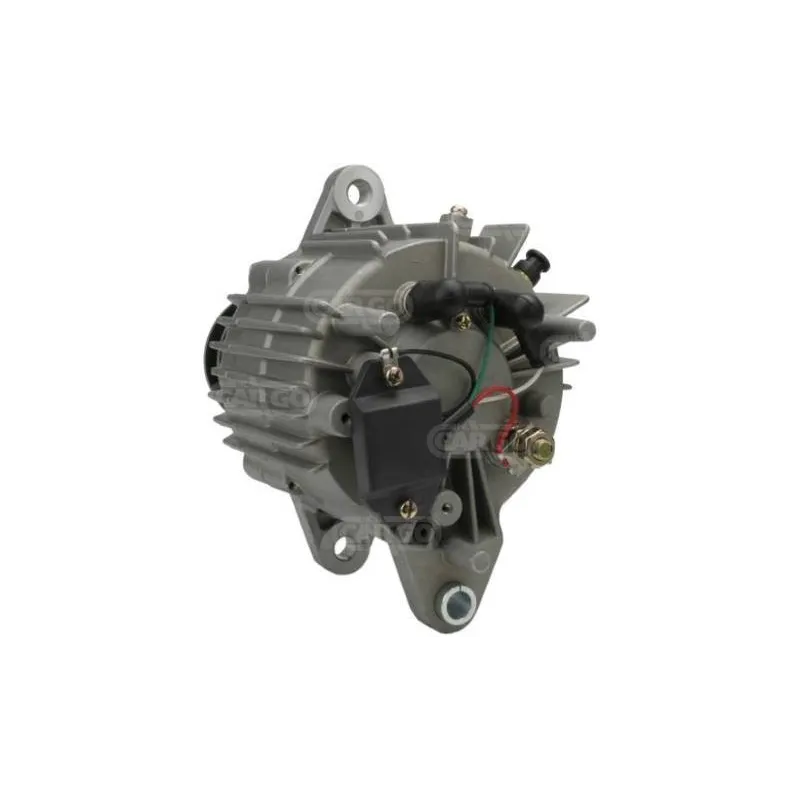

Alternator 28 Volts 22 Amps, Caterpillar 2P1204, Prestolite 51-153
  • Alternator 28 Volts 22 Amps, Caterpillar 2P1204, Prestolite 51-153
  • Alternator 28 Volts 22 Amps, Caterpillar 2P1204, Prestolite 51-153
  • Alternator 28 Volts 22 Amps, Caterpillar 2P1204, Prestolite 51-153
  • Alternator 28 Volts 22 Amps, Caterpillar 2P1204, Prestolite 51-153

Alternator 28 Volts 22 Amps, Caterpillar 2P1204, Prestolite 51-153

110427

28 volts - 22 Amp - Caterpillar - Prestolite - Case - Krauf - Delco - Lucas

€190.00
VAT included
€158.33 VAT excluded
LIVRAISON 24/48H
Quantity
EN STOCK - LIVRAISON IMMÉDIATE

  Delivery policy

(edit with the Customer Reassurance module)





  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

SPECIFICATIONS:

Electrical Specifications

Voltage     28
Amp     22

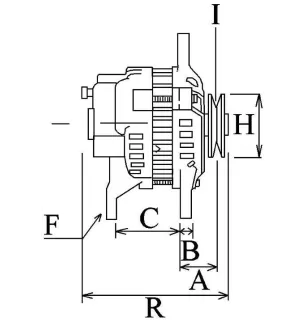

Physical Specifications

D     Hole Diameter     13.00
G     Lug Hole Diameter     M12
B     Arm Width     15.50
E     Tensioner Angle     60
C     Bracket Distance     102.19
H     Pulley Dia.     91.60
A     Dist. pulley     83.30
i     Pulley grooves     2

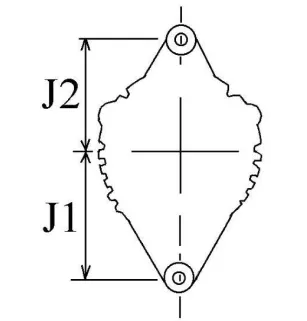

j     Radius     96.00
j     Radius 2     96.00
k     Position B +     M12
n     Rotation     Cr
o     Regulator connector     PL_NA
R     Total length mm     267.00

More information

Fan     Without
Pulley     Double pulley

REPLACES THE FOLLOWING REFERENCES:

Waiglobal: 1-3322-00BO, 20-601.
Cargo: 110801.
Wps: 12165N, 47002, 7331N.
Caterpillar: 2P1204, 2P1698, 2P5113, 2P7836, 5C8661, 6N5468, 7S5897, 9S4070, 9S4870.
Prestolite: 51-153, 51-153A, 51-178, 51-212, ANB6001, ANB6002, ANB6004, ANB7001, ANB7002, ANB7003, ANB7004.
Box: A34730, A44440, A44794, A47434.
Krauf: ALP0932.
Motorherz: ALP0932WA.
Delco: DRZ0118.
Lucas: LRA02480.
HC-Parts: UA932.

Product Details
110427
New

Data sheet

Tension
28 Volts
Ampérage
22A

Specific References

UPC
400000041797
EAN13
4000000041733
