Alternator 14V 60Amp Denso 100211-1040, 100211-1041, 100211-1320, 100211-1321, 100211-1340

Alternator 14V 60Amp Denso 100211-1040, 100211-1041, 100211-1320, 100211-1321, 100211-1340

• BRAND: BOSCH
• Alternator New
• warranty: 2 years
• Without Deposit
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 60

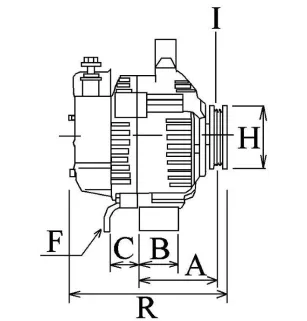

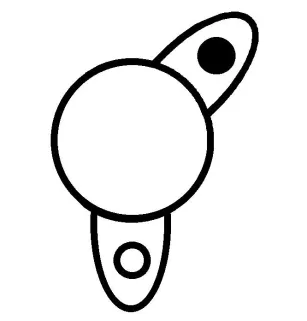

Physical Information
At Dist. pulley 90.00
B Arm width 58.00
D Hole diameter 10.00
G Leg hole diameter M8
H Pulley dia. 55.00
I Pulley grooves 5
J Radius 79.00
J Radius 2 82.00
K B + M6
K Position B+ in min. 5

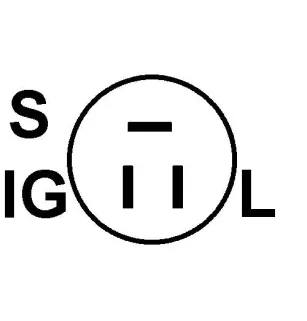

L D+ Size Plug
N Rotation CW
O Plug No PL12
R Overall Length mm 153.50

Catalog Information
Pulley Serpentine Pulley
Regulator Type Ir
Vacuum Pump No
Product Info Bn
For Toyota

REPLACES THE FOLLOWING PART NUMBERS:
100211-1040 Denso
100211-1041 Denso
100211-1320 Denso
100211-1321 Denso
100211-1340 Denso
100211-1341 Denso
100211-2211 Denso
0 Denso
100211-2281 Denso
100211-2300 Denso
100211-2302 Denso
100211-2320 Denso
100211-3090 Denso
100211-3091 Denso
100211-3400 Denso
100211-3401 Denso
100211-3500 Denso
100211-3530 Denso
100211-3531 Denso \{00 12} 100211-3560 Denso
100211-3610 Denso
100211-3611 Denso
100211-3740 Denso
100211-3760 Denso
100211-3761 Denso
100211-9400 Denso
100211-9710 Denso
100211-9711 Denso
16540-64011 Kubota
16540-64011 Kubota
0 Toyota
27060-10011 Toyota
27060-10060 Toyota
27060-10061 Toyota
27060-10090 Toyota
27060-11050 Toyota
27060-11120 Toyota 27060-11160 Toyota 27060-16010 Toyota 27060-16011 Toyota 27060-16012 Toyota 27060-16050 Toyota 27060-16051 Toyota 0012} 27060-16090 Toyota
27060-16091 Toyota
27060-16151 Toyota
27060-18010 Toyota
27060-55020 Toyota
JA142IR HC-PARTS

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Toyota, Light Vehicle EU
Toyota, Light Vehicle US
Toyota, Light Vehicle Asia and Oceania
