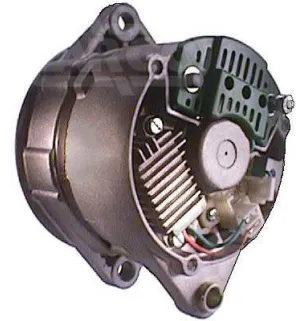

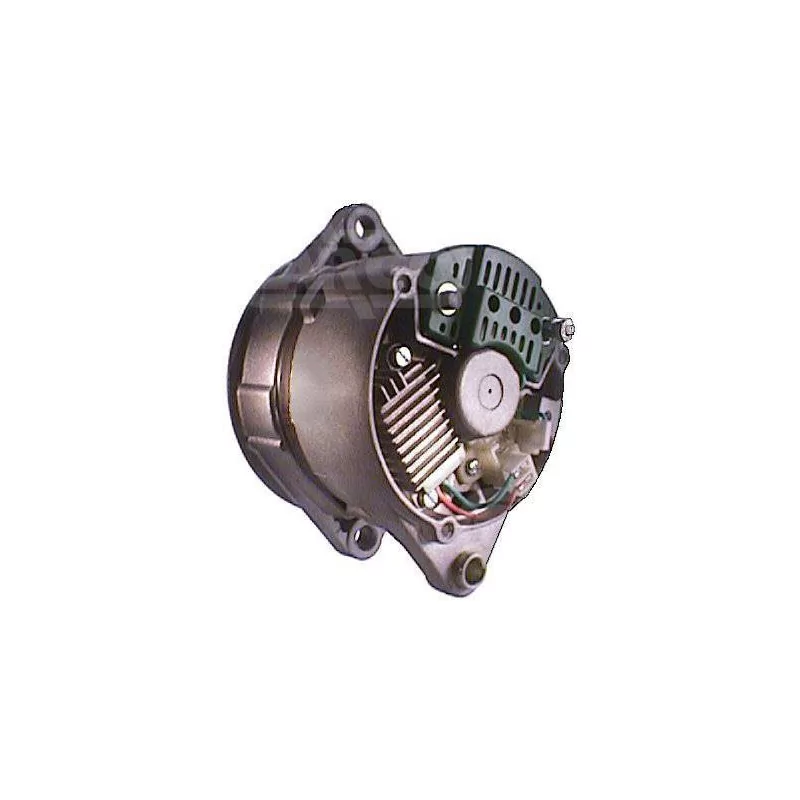

Alternator 14V 55Amp Bosch 0120489135, 0120489170, 0120489541, 0120489542, 0120489641

Alternator 14V 55Amp Bosch 0120489135, 0120489170, 0120489541, 0120489542, 0120489641

• BRAND: BOSCH
• New Alternator
• Warranty: 2 years
• Without Instructions
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 55

Physical Information
A Pulley Dist. 44.50
B Arm Width 16.40
C Pulley Dist. between bracket 66.00
D Hole diameter 12.30
E Tensioner paste angle 60
G Tab hole diameter 10.70
H Pulley dia. 68.00
I Pulley grooves 1
J Radius 85.00
J Radius 2 81.00
K B + M6
K Position B+ in min. 60

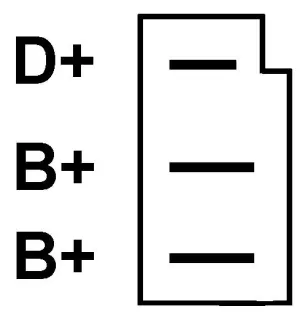

L D+ Size 6.30
N Rotation CW
O Socket no PL22
R Total length mm 162.50

Information Catalogues
Pulley Pulley
Regulator type Ir
Vacuum pump No
Product info Bn
For Fiat, Iveco, Lancia, Seat, Ferrari

REPLACES THE FOLLOWING PART NUMBERS:
0003919740 Volkswagen
0003938582 Volkswagen
0120489020 Bosch
0120489135 Bosch
0120489170 Bosch
0120489541 Bosch
0120489542 Bosch
0120489641 Bosch
0120489642 Bosch
0120489742 Bosch
0120489743 Bosch
0120489752 Bosch
0120489753 Bosch
0986033890 Bosch
0986033891 Bosch
111680 Ferrari
11705 Efel
12311662467 BMW
1516444R DAF
19025049 Remy (delco)
19025056 Remy (delco)
19025067 Remy (delco)
2541233 Valeo
2541234 Valeo
30680350 Magneti Marelli
3919740 Fiat
4330483 Fiat
4335424 Fiat
4424346 Fiat
4424546 Fiat
4447411 Fiat
4474524 Fiat
4478678 Fiat
46231755 Fiat
50012833 Fiat
54022240 lucas
5920974 Fiat
5927869 Fiat
5943452 Fiat
5960287 Fiat
5960292 Fiat
5962647 Fiat
5970230 Fiat
5972197 Fiat
5976915 Fiat
5992151 Fiat
5992152 Fiat
61664307 Fiat
63303581 Magneti Marelli
63305020 Magneti Marelli
63305150 Magneti Marelli
63305300 Magneti Marelli
63305310 Magneti Marelli
63305400 Magneti Marelli
63305404 Magneti Marelli
63305405 Magneti Marelli
63305406 Magneti Marelli
63305424 Magneti Marelli
63305425 Magneti Marelli
63305426 Magneti Marelli
63305430 Magneti Marelli
63305450 Magneti Marelli
63305520 Magneti Marelli
63305621 Magneti Marelli
63307150 Magneti Marelli
63307160 Magneti Marelli
63307400 Magneti Marelli
63307405 Magneti Marelli
63307407 Magneti Marelli
63307410 Magneti Marelli
63307420 Magneti Marelli
63307425 Magneti Marelli
63307427 Magneti Marelli
63307429 Magneti Marelli
63307430 Magneti Marelli
63307450 Magneti Marelli
63307460 Magneti Marelli
63307470 Magneti Marelli
63320112 Magneti Marelli
63320128 Magneti Marelli
63320141 Magneti Marelli
63321008 Magneti Marelli
63321010 Magneti Marelli
63321061 Magneti Marelli
63321071 Magneti Marelli
63321080 Magneti Marelli
63321172 Magneti Marelli
63321197 Magneti Marelli
63321493 Magneti Marelli
7575998 Fiat
77323410 Fiat
77338410 Fiat
77340410 Fiat
77340411 Fiat
82300531 Fiat
8230531 Fiat
82331598 Fiat
82350447 Fiat
82350477

COMPATIBLE WITH VEHICLES NEXT:
Abarth, EU Light Vehicle
Alfa Romeo, EU Light Vehicle
Ferrari, EU Light Vehicle
Fiat, EU Light Vehicle
Fiat, US light vehicle
Fiat-Allis, Agricultural machinery
Lancia, EU light vehicle
Lancia, US light vehicle
Pininfarina, EU light vehicle
Seat, EU Light Vehicle
