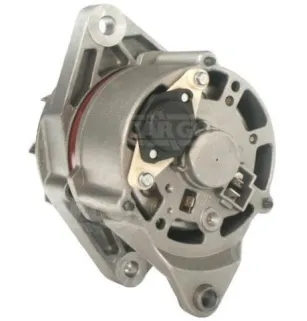

Alternator 14V 33Amp ​​Bosch 0120339515, 0120339516, 0120339527, 0120339528, 0986030120

Alternator 14V 33Amp ​​Bosch 0120339515, 0120339516, 0120339527, 0120339528, 0986030120

• New Alternator
• Warranty: 2 years
• Without Deposit
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 33

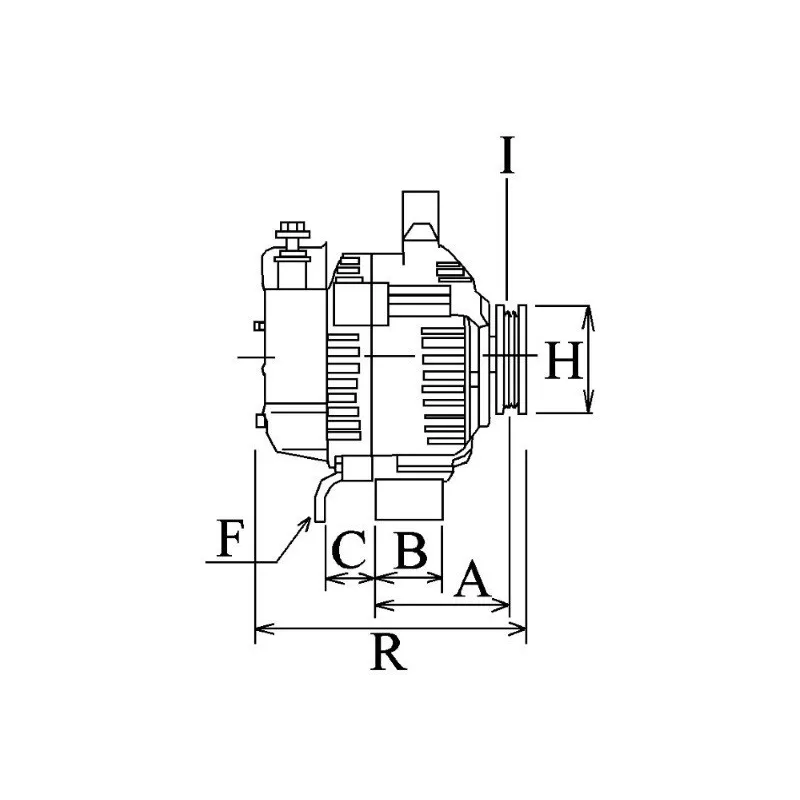

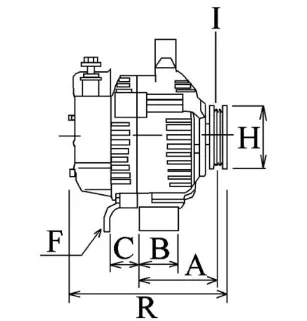

Physical Information
A Pulley Dist. 49.00
B Arm Width 25.00
C Pulley Dist. between bracket 74.00
D Hole diameter 10.25
E Tensioner bracket angle 4
G Bracket hole diameter 10.00
H Pulley dia. 72.70
I Pulley grooves 1

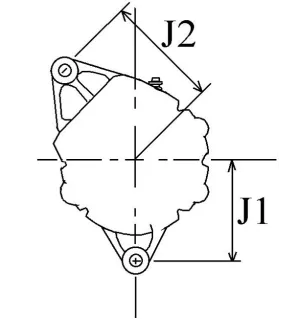

J Radius 87.00
J Radius 2 80.00
K B + 9.40
K Position B+ in min. 15

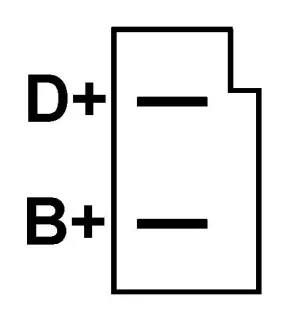

L D+ Size 6.30
N Rotation CW
O Plug no PL29

Information Catalogs
Pulley Pulley
Regulator type Ir
Vacuum pump No
Product info Bn
For Fiat, Lamborghini, Same, Zastava


REPLACES THE FOLLOWING PART NUMBERS:
0120339515 Bosch
0120339516 Bosch
0120339527 Bosch
0120339528 Bosch
0986030120 Bosch
10590 Efel
11.201.037 Iskra
11.201.783 Iskra
19025042 Remy (delco)
19025063 Remy (delco)
294390900 Same
30680274 Magneti Marelli
4373600 Fiat
4373601 Agritalia (Carraro)
4474729 Fiat
4474752 Fiat
4475266 Fiat
4475268 Fiat
46231680 Fiat
4998353 Fiat
5101707 Fiat
51217620 Fiat
54022240 lucas
63300521 Magneti Marelli
63300802 Magneti Marelli
63300900 Magneti Marelli
63300901 Magneti Marelli
63300920 Magneti Marelli
63300921 Magneti Marelli
63300931 Magneti Marelli
77145410 Fiat
77250410 Fiat
943356274 Magneti Marelli
9934974 Fiat
9AR5006G Motorola
CA77IR HC-PARTS
HL90302051 Volkswagen
AAG0402 Iskra
AAG1104 Iskra
AAG1130 Iskra

COMPATIBLE WITH THE FOLLOWING VEHICLES :
Fiat, Light Vehicle EU
Fiat, Agricultural Machinery
Fiat-Allis, Agricultural Machinery
Lamborghini, Agricultural Machinery
Same, Agricultural Machinery
Zastava, Light Vehicle EU
