Alternator 14V 120Amp Denso 100211-6030, 100211-6031, 100211-6050, 100211-6051, John Deere AL78690

111215

Alternator 14V 120Amp Denso 100211-6030, 100211-6031, 100211-6050, 100211-6051, John Deere AL78690

€212.39
VAT included
€176.99 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

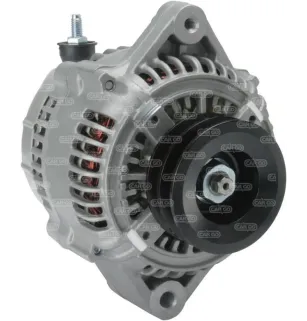

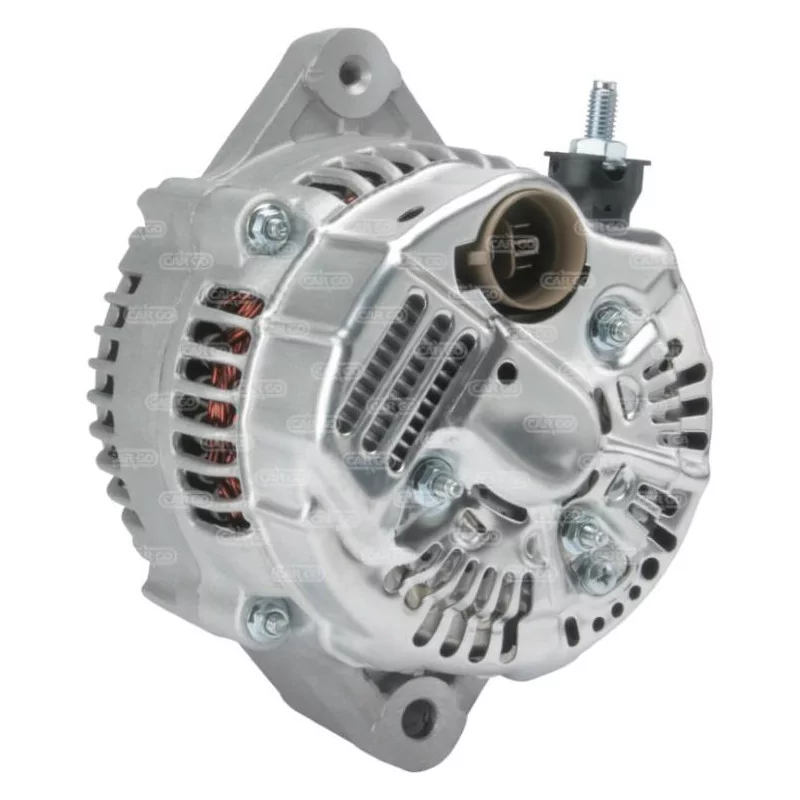

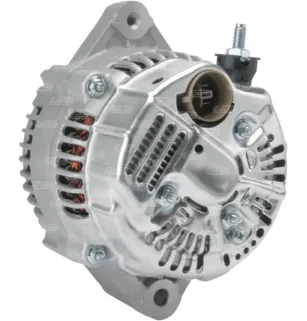

Alternator 14V 120Amp Denso 100211-6030, 100211-6031, 100211-6050, 100211-6051, John Deere AL78690

  • BRAND: BOSCH
  • New Alternator
  • warranty: 2 years
  • Without Deposit
  • Original Quality


CHARACTERISTICS:
Electrical Information
    Voltage     14
    Amp.      120

Physical Information
A     Dist. pulley     92.00
B     Arm width     58.00
D     Hole diameter     10.35
E     Tensioner bracket angle     60
G     Lug hole diameter     M8
H     Pulley dia. 76.00
I     Pulley grooves     2
J     Radius     84.60
J     Radius 2     86.20
K     B +     M8
K     Position B+ in min.     5
L     D+ Size     Plug
N     Rotation     CW
O     Plug no     PL12
R     Total length mm     175.00
    Terminal type     L-IG-S

Information Catalogues
    Pulley     Double pulley
    Regulator type     Ir
    Vacuum pump     No
    Product info     Bn
    For     John Deere lawn equipment with engine cooling

REPLACES THE FOLLOWING PART NUMBERS:
100211-6030     Denso
100211-6031     Denso
100211-6050     Denso
100211-6051     Denso
AL78690     John Deere
JA864IR     HC-PARTS
RE36246     John Deere
RE37201    John Deere
RE42123     John Deere
RE44140     John Deere
RE51921     John Deere
TY6684     John Deere
TY6778     John Deere

COMPATIBLE WITH THE FOLLOWING VEHICLES:

John Deere, Agricultural Machinery

Product Details
111215
New

Data sheet

Tension
14 Volts

Specific References

UPC
400000051192
EAN13
4000000051138
